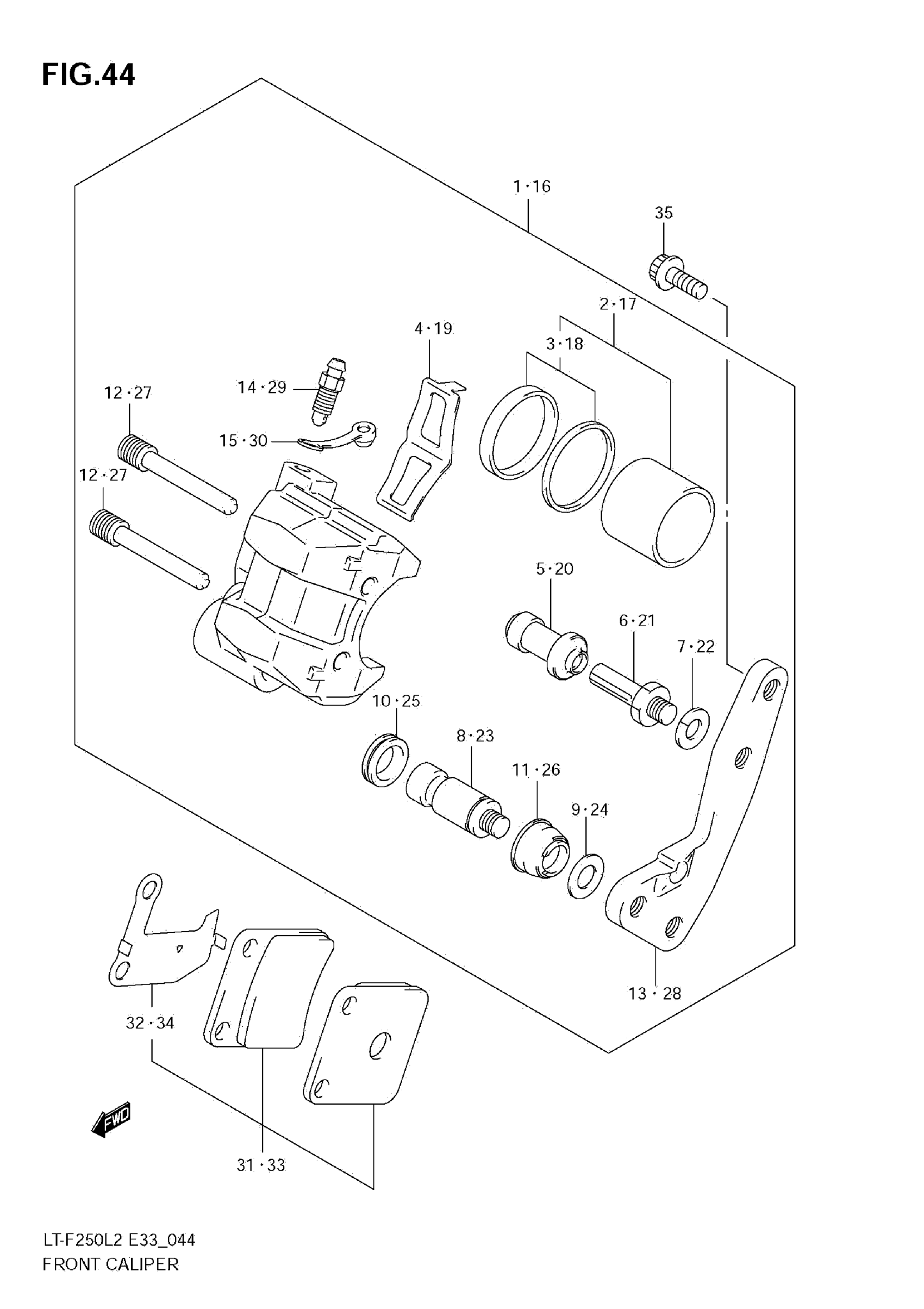

Suzuki LT-F250L2 (2012) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH This part replaces 59100-38F31-999.

59100-38F30-999

$263.63

2

PISTON SET

59100-38850

$40.51

3

SEAL SET, PISTON

59100-38860

$15.55

4

SPRING, PAD

59315-13A00

$12.43

5

BOOT

59386-13A00

$7.60

6

BOLT

59382-13A00

$7.56

7

WASHER

59314-13A00

$2.28

8

PIN, SLIDE

59105-38F00

$22.32

9

SPRING

59306-13A00

$3.57

10

SEAL, DUST

59384-13A00

$5.16

11

BOOT

59303-13A00

$5.71

12

PIN

59345-00B20

$13.97

13

BRACKET, RH

59151-38F00

$60.38

14

BLEEDER

59121-01A00

$8.35

15

CAP

59122-01A00

$4.15

16

CALIPER ASSY, FRONT LH

59300-38F31-999

Unavailable

17

PISTON SET

59100-38850

$40.51

18

SEAL SET, PISTON

59100-38860

$15.55

19

SPRING, PAD

59315-13A00

$12.43

20

BOOT

59386-13A00

$7.60

21

BOLT

59382-13A00

$7.56

22

WASHER

59314-13A00

$2.28

23

PIN, SLIDE

59105-38F00

$22.32

24

SPRING

59306-13A00

$3.57

25

SEAL, DUST

59384-13A00

$5.16

26

BOOT

59303-13A00

$5.71

27

PIN

59345-00B20

$13.97

28

BRACKET, LH

59351-38F00

$60.38

29

BLEEDER

59121-01A00

$8.35

30

CAP

59122-01A00

$4.15

31

PAD & SHIM SET RH This part replaces 59101-38851.

59101-38850

$63.57

32

SHIM RH

59371-13A00

$10.58

33

PAD & SHIM SET LH This part replaces 59101-38861.

59101-38860

$46.21

34

SHIM LH

69372-00B20

$12.43

35

BOLT (8X16)

09106-08174

$3.19
