2012 Suzuki LT-F250L2 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

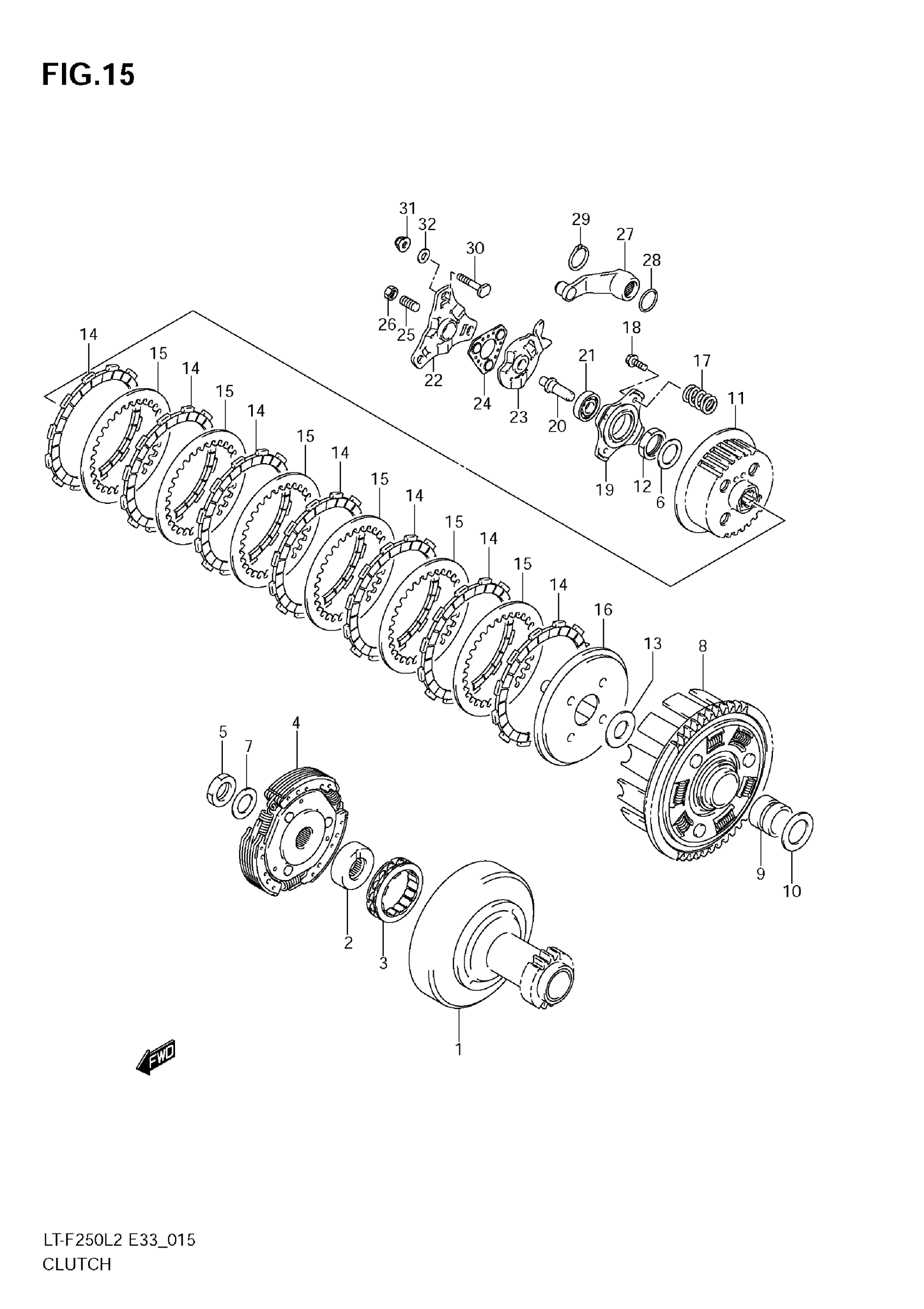

2012 Suzuki LT-F250L2 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE (NT:20)

21110-05G00

1
Out of stock

2

RACE, INNER

21631-19B11

1
Out of stock

3

CLUTCH, ONE WAY

21273-19B10

1
Out of stock

4

CLUTCH ASSY

21500-05G10

1
Out of stock

5

NUT

09140-18012

1
Out of stock

6

WASHER

09164-20007

1
Out of stock

7

WASHER

09164-18001

1
Out of stock

8

GEAR ASSY, PRIMARY (NT:65)

21200-05G10

1
Out of stock

9

SPACER (22X28X23)

09180-22035

1
Out of stock

10

SHIM (22X36X1)

09181-22251

1
Out of stock

11

HUB, CLUTCH

21410-05G00

1
Out of stock

12

NUT

09140-20019

1
Out of stock

13

WASHER

08211-20323

1
Out of stock

14

PLATE, DRIVE

21441-22A01

7
Out of stock

15

PLATE, DRIVEN This part replaces 21451-11900.

21451-01B40

6
Out of stock

16

DISC, PRESSURE

21462-24501

1
Out of stock

17

SPRING

21413-05G10

4
Out of stock

18

BOLT

01550-0620B

4
Out of stock

19

PLATE, RELEASE

21465-24500

1
Out of stock

20

PIECE, PUSH

23121-05G00

1
Out of stock

21

BEARING (12X28X8)

09262-12001

1
Out of stock

22

GUIDE, BALL OUTER

23231-05G21

1
Out of stock

23

GUIDE, BALL INNER

23211-05G21

1
Out of stock

24

BALL, RELEASE

23250-31003

1
Out of stock

25

SCREW (8X19.5)

09134-08009

1
Out of stock

26

NUT

09140-08021

1
Out of stock

27

ARM, RELEASE

23220-05G20

1
Out of stock

28

WASHER

08211-10243

1
Out of stock

29

CIRCLIP

08331-3114A

1
Out of stock

30

BOLT (6X30)

09119-06103

3
Out of stock

31

NUT

08313-2006B

3
Out of stock

32

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock
