2012 Suzuki LT-F250L2 Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

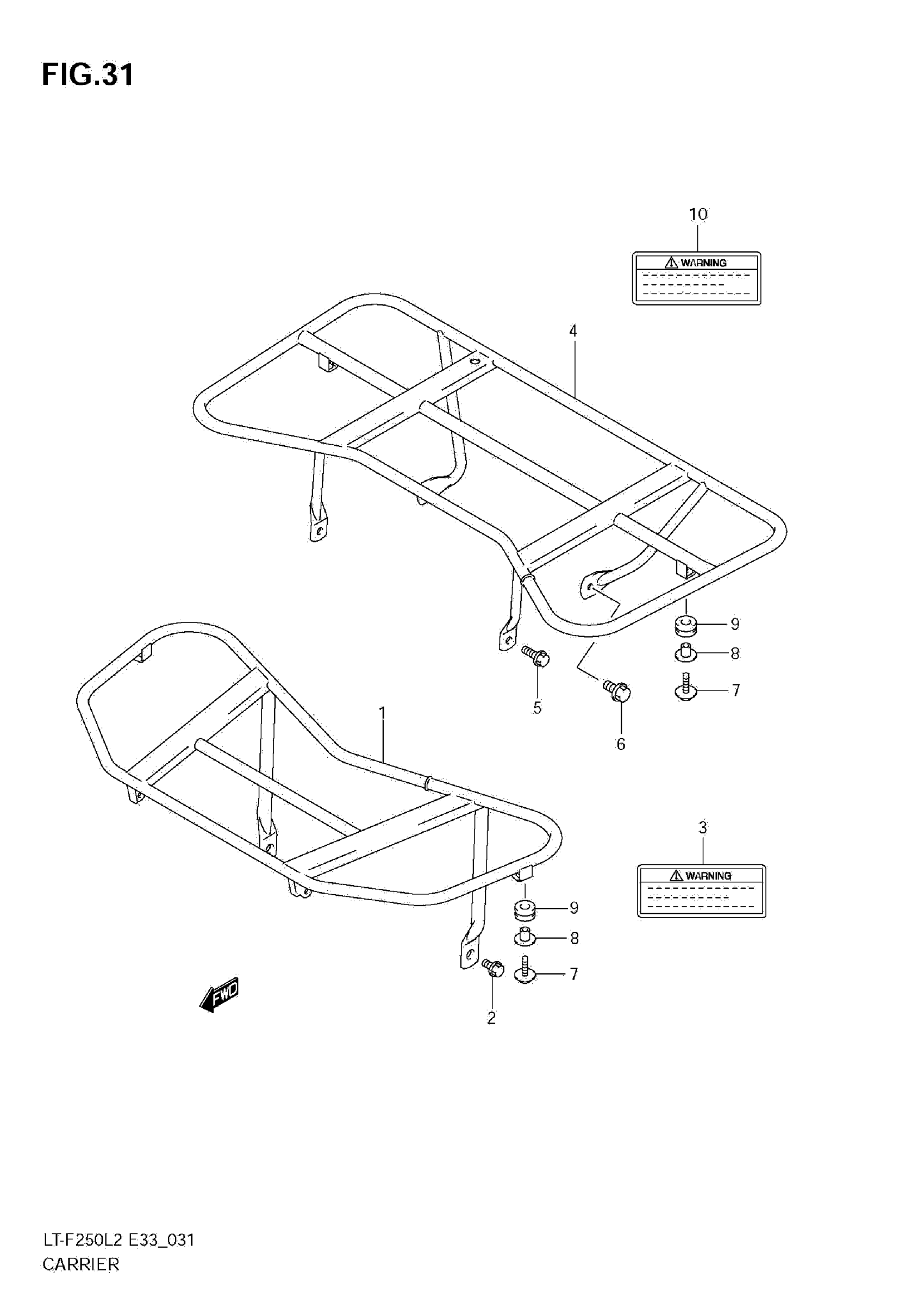

2012 Suzuki LT-F250L2 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARRIER, FRONT (BLACK)

46410-05G01-019

1
Out of stock

2

BOLT (8X16)

01550-0816A

4
Out of stock

3

LABEL, FRONT CARRIER

68381-31G00

1
Out of stock

4

CARRIER, REAR (BLACK)

46310-05G21-019

1
Out of stock

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

2
Out of stock

6

BOLT

01550-1016A

2

$3.06

In stock

7

BOLT

01550-0625B

4
Out of stock

8

WASHER

09169-06074

4
Out of stock

9

CUSHION (11.5X32X12.2)

09320-11021

4
Out of stock

10

LABEL, REAR CARRIER

68381-31G20

1
Out of stock
