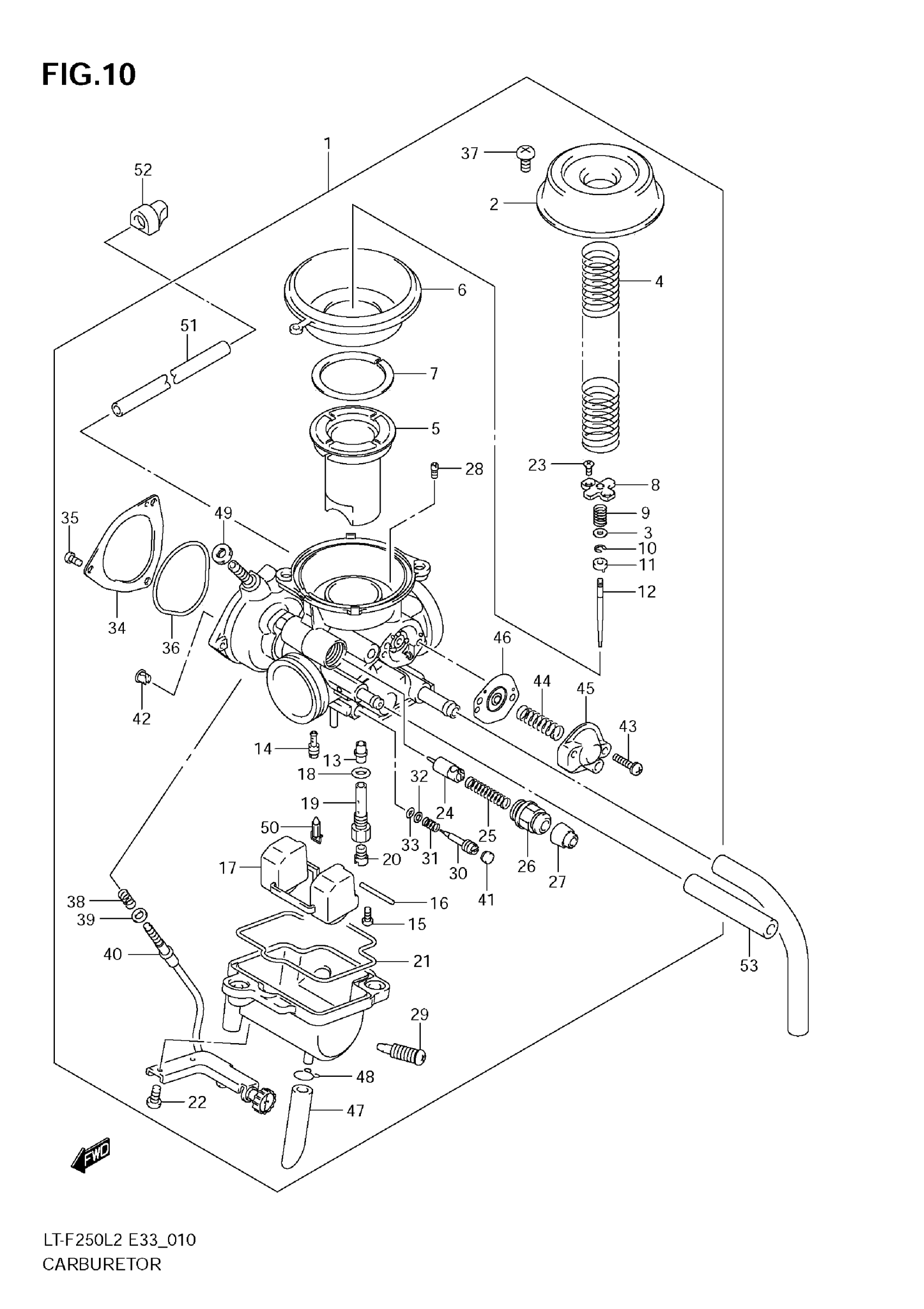

2012 Suzuki LT-F250L2 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2012 Suzuki LT-F250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-F250L2 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$690.63

In stock

2

DIAPHRAGM COVER

13502-05F00

1
Out of stock

3

WASHER

13382-46E00

1
Out of stock

4

SPRING

13503-05G00

1
Out of stock

5

PISTON VALVE

13500-05F10

1
Out of stock

6

DIAPHRAGM This part replaces 13507-05G00.

13507-05G01

1
Out of stock

7

RING

13504-16E00

1

$7.03

In stock

8

PLATE

13581-05F00

1
Out of stock

9

SPRING

13388-20E20

1
Out of stock

10

E RING

13394-17E60

1

$2.19

In stock

11

RING

13574-05F00

1
Out of stock

12

JET, NEEDLE (4DJ24-1)

13383-05G00

1
Out of stock

13

JET, NEEDLE (P-OM)

09494-00921

1

$41.57

In stock

14

JET, PILOT (17.5)

09492-17006

1
Out of stock

15

SCREW

02112-0408A

2

$1.15

In stock

16

PIN, FLOAT

13254-20010

1
Out of stock

17

FLOAT ASSY This part replaces 13240-47E00.

13240-47E01

1
Out of stock

18

1

$4.33

In stock

19

JET HOLDER

13342-05G00

1
Out of stock

20

JET, MAIN (137.5)

09491-27014

1
Out of stock

21

O RING

13251-47E00

1
Out of stock

22

SCREW, 5X14

13601-05148-XC0

2
Out of stock

23

SCREW

13603-05F00

2
Out of stock

24

PLUNGER ASSY

13411-05G00

1
Out of stock

25

SPRING

13417-37200

1
Out of stock

26

GUIDE HOLDER

13418-43410

1

$7.20

In stock

27

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

28

PILOT JET (170)

09493-34003

1
Out of stock

29

1

$4.97

In stock

30

ADJUSTER | 2,7/8

13279-48F00

1
Out of stock

31

.SPRING (NT:45)

13268-47070

1

$4.33

In stock

32

WASHER

13291-29900

1
Out of stock

33

O-RING This part replaces 13295-29900.

13295-29901

1
Out of stock

34

COVER THROTTLE

13502-02C10

1

$18.58

In stock

35

SCREW

02112-0406B

3

$1.67

In stock

36

O RING

13673-20B00

1
Out of stock

37

SCREW

02112-05087

2

$1.55

In stock

38

SPRING

13268-03110

1

$6.15

In stock

39

WASHER

13615-05G00

1
Out of stock

40

CABLE ADJUSTER ASSY

13577-05G00

1
Out of stock

41

PLUG

13281-05A00

1
Out of stock

42

CABLE GUIDE

13579-05G00

1
Out of stock

43

SCREW

13601-04148

2
Out of stock

44

SPRING

13271-13F00

1
Out of stock

45

COVER ASSY

13502-10F00

1

$44.80

In stock

46

DIAPHRAGM ASSY This part replaces 13480-055A0.

13480-055A1

1
Out of stock

47

HOSE This part replaces 13684-38D00.

13684-38D01

1
Out of stock

48

.CLIP This part replaces 13529-98010.

13529-98011

1
Out of stock

49

NUT

13607-98410

1
Out of stock

50

VALVE ASSY, NEEDLE

13370-47E00

1
Out of stock

51

HOSE(6.5X11.5X6 | L:600->250 This part replaces 09354-65113-600.

09355-65001-600

1
Out of stock

52

CAP,AIR VENT HO This part replaces 13699-05G00.

13699-05G01

1
Out of stock

53

HOSE,5X10X600 | L:600->160 This part replaces 09355-50105-600.

44421-13ER0

1
Out of stock
