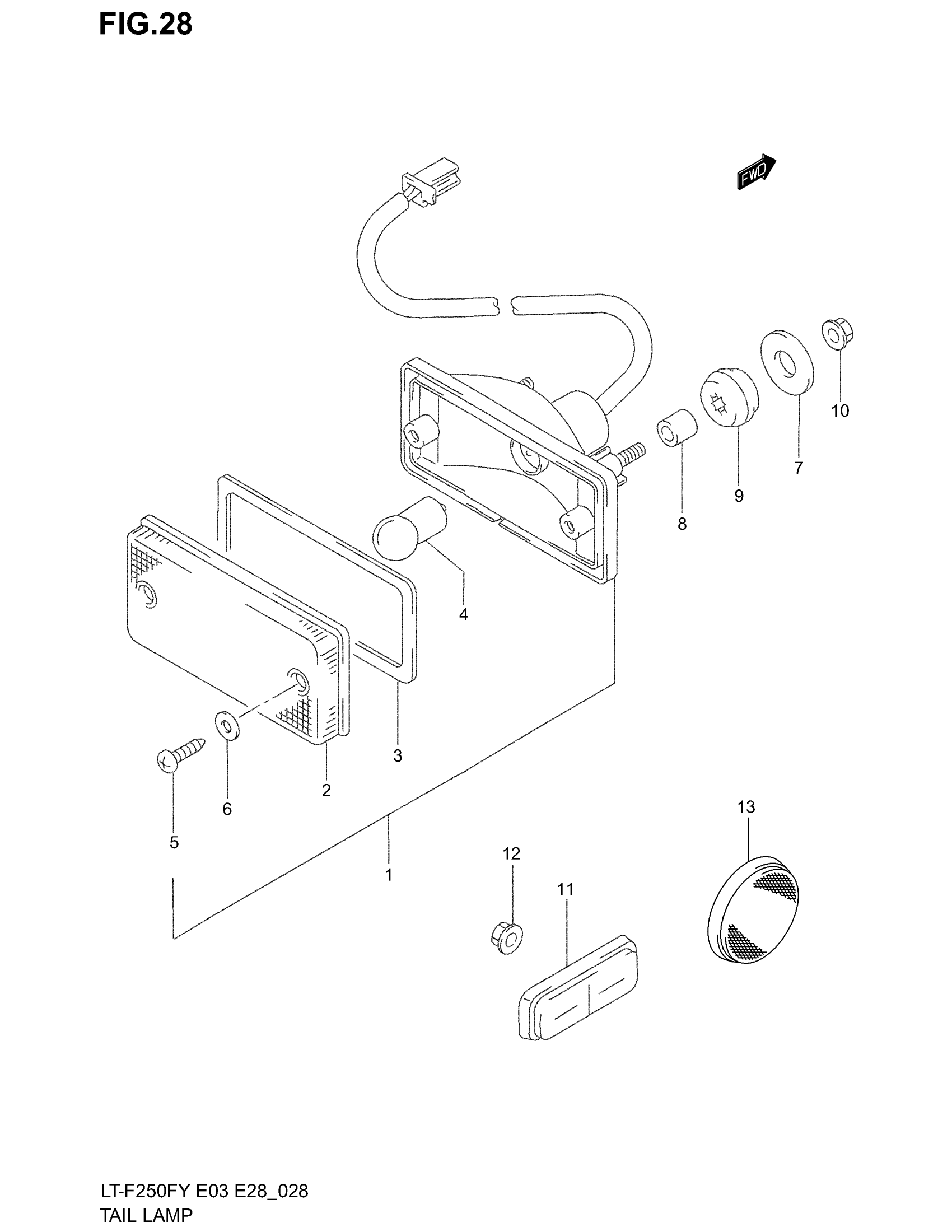

Suzuki LT-F250F (2002) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | MODEL X/Y

35710-41B02

Unavailable

1

LAMP ASSY, TAIL | MODEL K1/K2; Includes Item(s) 2 - 6

35710-02C00

$124.50

2

LENS

35712-18A32

$51.14

3

GASKET

35713-18A30

$10.92

4

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

5

SCREW

03212-04169

$1.40

6

GASKET

35627-43010

$2.29

7

.WASHER (6.5X20X1.6)

09160-06088

$1.73

8

SPACER (6.5X10X12)

09180-06290

$2.09

9

CUSHION

09320-09010

$2.80

10

NUT This part replaces 08316-10063.

08316-1006B

$2.57

11

REFLECTOR ASSY, RR SIDE | MODEL X/Y/K1 E28 This part replaces 35970-07F00.

35970-07F01

$19.97

12

NUT | MODEL X/Y/K1 E28 This part replaces 08316-10053.

08316-1005A

$2.25

13

REFLECTOR ASSY, REAR | MODEL K2 E28

35970-14A10

$21.23
