2002 Suzuki LT-F250F Headlamp Cover Diagram

← All diagrams

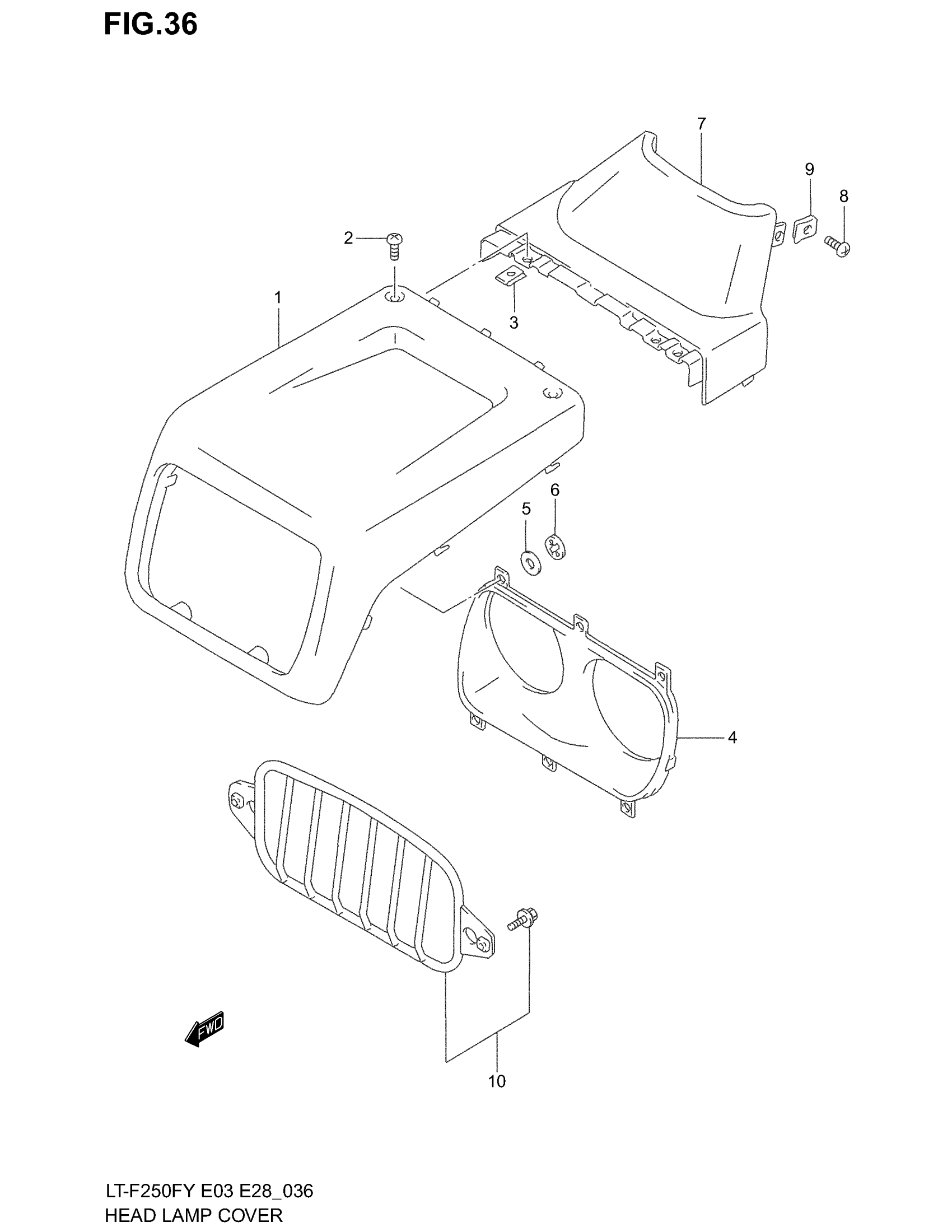

Find the part on the Headlamp Cover diagram for your 2002 Suzuki LT-F250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F250F Headlamp Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, CENTER (BROWN) | MODEL X

53118-39DA0-Z34

1
Out of stock

1

1

$170.08

In stock

2

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

4
Out of stock

3

NUT

09148-05038

4
Out of stock

4

COVER, HEADLAMP (BROWN) | MODEL X

53341-39DA0-Z34

1
Out of stock

4

1

$64.82

In stock

5

CUSHION

09320-04501

6

$2.85

In stock

6

NUT

09148-03011

6

$2.25

In stock

7

FENDER, CENTER REAR (BROWN) | MODEL X

53119-39DA0-Z34

1
Out of stock

7

1

$187.30

In stock

8

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

2
Out of stock

9

NUT

09148-05038

2
Out of stock

10

GUARD SET, HEADLAMP | OPT

48500-19841

1
Out of stock
