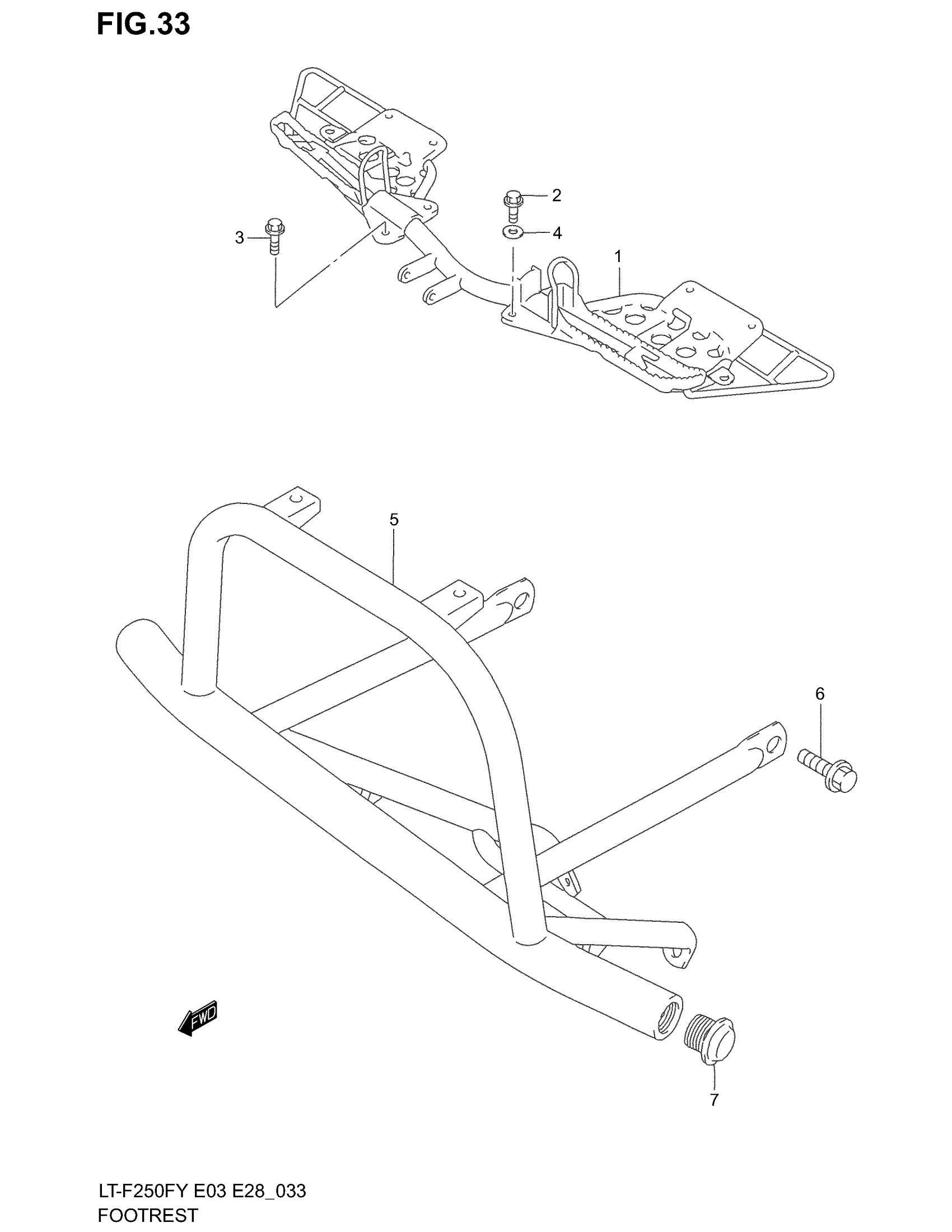

Suzuki LT-F250F (2002) FOOTREST Diagram

#

Description

Price

1

TUBE, FRONT FOOTREST | MODEL X/Y This part replaces 43510-39DA0.

43510-39DV0

Unavailable

1

TUBE, FRONT FOOTREST | MODEL K1/K2

43510-39DV0

Unavailable

2

BOLT

09103-08171

$3.98

3

BOLT, FRONT RH

09103-08259

$4.90

4

WASHER

09160-08501

$2.29

5

GRIP,FRONT | MODEL X/Y This part replaces 43990-39DB0.

43990-39DA1

$641.33

5

GRIP, FRONT | MODEL Y E28

43990-39DD0

Unavailable

5

GRIP, FRONT | MODEL K1/K2 This part replaces 43990-39DE0.

43990-39DD1

Unavailable

6

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.31

7

CAP

43978-09F00

$12.63
