2002 Suzuki LT-F250F AIR Cleaner Diagram

← All diagrams

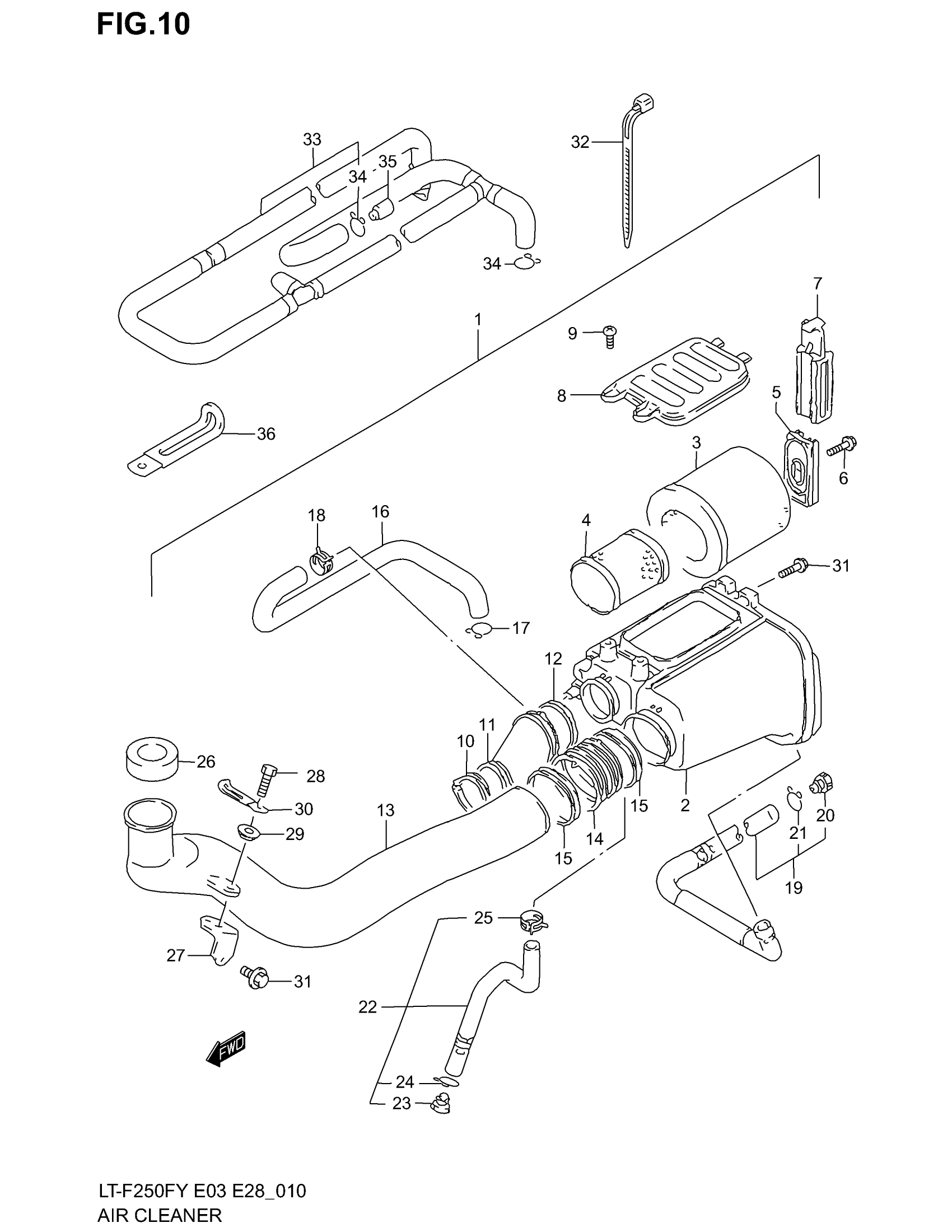

Find the part on the AIR Cleaner diagram for your 2002 Suzuki LT-F250F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Suzuki LT-F250F AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 13700-39D00.

13700-39D01

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL Y/K1; Includes Item(s) 2 - 30 This part replaces 13700-39D40.

13700-39D41

1
Out of stock

2

CASE, AIR CLEANER

13720-19B80

1
Out of stock

3

FILTER

13781-19B00

1
Out of stock

4

HOLDER

13810-39D00

1
Out of stock

5

GUIDE, SLIDER

13797-19B00

1
Out of stock

6

SCREW This part replaces 02142-05163.

02142-0516A

1
Out of stock

7

SLIDER

13798-33400

1
Out of stock

8

CAP

13750-19B00

1
Out of stock

9

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

10

CLAMP | MODEL X This part replaces 09402-56208.

09402-56901

1
Out of stock

10

..CLAMP | MODEL Y/K1/K2

09402-60208

1
Out of stock

11

TUBE,OUTLET | MODEL X This part replaces 13881-19B20.

13881-19B21

1
Out of stock

11

TUBE,OUTLET | MODEL Y/K1/K2 This part replaces 13881-39D40.

13881-39D41

1
Out of stock

12

..CLAMP | MODEL X

09402-60208

1
Out of stock

12

CLAMP | MODEL Y/K1/K2 This part replaces 09402-62203.

09402-62208

1
Out of stock

13

TUBE, INLET | MODEL X This part replaces 13891-19B11.

13891-19B12

1
Out of stock

13

TUBE, INLET | MODEL Y/K1/K2

13891-19B12

1
Out of stock

14

JOINT

13889-19B01

1
Out of stock

15

CLAMP

13826-19B00

2
Out of stock

16

TUBE, BREATHER

13853-19B00

1
Out of stock

17

CLIP

09401-14301

1
Out of stock

18

CLIP

09401-14404

1
Out of stock

19

TUBE ASSY, DRAIN

13870-19B80

1
Out of stock

20

PLUG, DRAIN

13877-00190

1
Out of stock

21

CLIP

09401-14301

2
Out of stock

22

TUBE ASSY,DRAIN This part replaces 13870-39D00.

13870-39D01

1
Out of stock

23

PLUG

13877-00190

1
Out of stock

24

CLIP

09401-14301

1
Out of stock

25

CLIP

09401-14404

1
Out of stock

26

CAP, INLET

13892-19B00

1
Out of stock

27

BRACKET

13761-19B00

1
Out of stock

28

BOLT This part replaces 01500-06163.

01500-0616A

1
Out of stock

29

SPACER

13838-02B00

1
Out of stock

30

CLAMP

09404-06435

1
Out of stock

31

BOLT This part replaces 01580-06123.

01580-0612A

4
Out of stock

32

CLAMP, DRAIN TUBE

09407-14403

2
Out of stock

33

TUBE ASSY,BREAT | OPT; Includes Item(s) 34 This part replaces 13850-19B81.

13850-19B82

1
Out of stock

34

CLIP | OPT

09401-14301

2
Out of stock

35

CHECK VALVE | OPT

13860-19B80

1
Out of stock

36

CLAMP(L:80) | OPT This part replaces 09404-06434.

09404-06036

2
Out of stock
