2009 Suzuki LT-F250 Rear Combination Diagram

← All diagrams

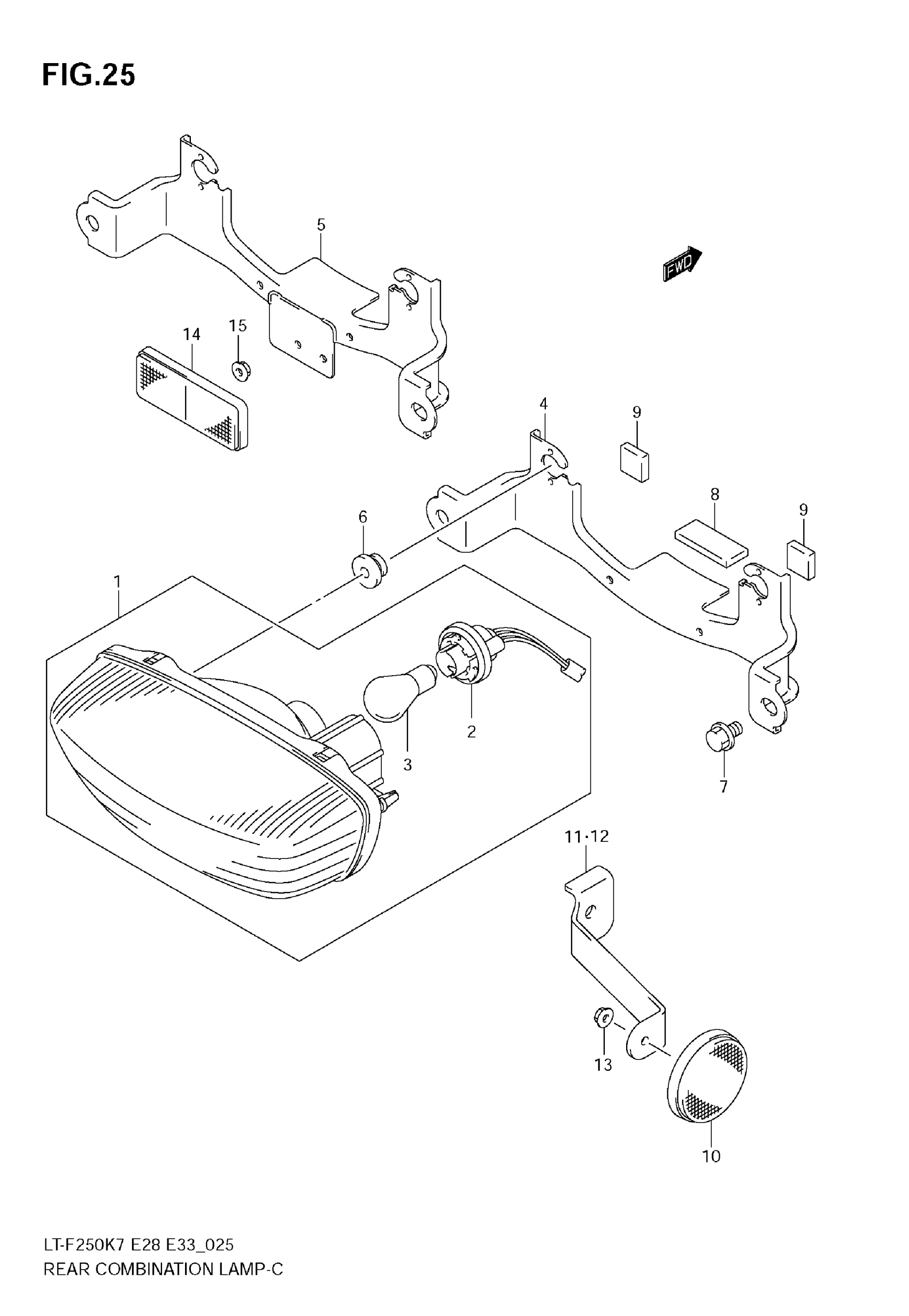

Find the part on the Rear Combination diagram for your 2009 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-F250 Rear Combination Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 3

35710-03G30

1
Out of stock

2

SOCKET & CORD ASSY

35718-03G30

1
Out of stock

3

BULB (12V,21/5W)

09471-12128

1
Out of stock

4

BRACKET, REAR COMB LAMP

35726-05G00

1
Out of stock

5

BRACKET, REAR COMB LAMP | E28

35726-05G20

1
Out of stock

6

CUSHION

09320-06024

2
Out of stock

7

BOLT

01550-0812B

2
Out of stock

8

CUSHION (25X55X8)

33652-05G10

1
Out of stock

9

CUSHION (17X17X12)

33652-05G20

2
Out of stock

10

REFLECTOR ASSY, RR SIDE | E28

35970-14A20

2
Out of stock

11

BRACKET, REAR SIDE RR RH | E28

35975-05G10

—
Out of stock

12

BRACKET, REAR SIDE RR LH | E28

35976-05G10

—
Out of stock

13

NUT | E28

08316-1005B

2
Out of stock

14

REFLECTOR ASSY, REAR | E28

35970-07F01

1
Out of stock

15

NUT | E28

08316-1005B

1
Out of stock
