Description

Price

1

PEDAL, BRAKE

43110-05G20

Unavailable

2

O RING

09280-14011

$4.30

3

WASHER

09160-06138

$1.92

4

BOLT

01547-0665A

$2.34

5

NUT

08319-2106A

$1.89

5A

CUSHION This part replaces 09321-08022.

09321-08026

$0.74

6

SPRING, RETURN

09443-11030

$3.33

7

CABLE, REAR BRAKE

58510-05G00

$80.90

8

PIN, FRONT

09200-05001

$1.52

9

CLIP

09385-06012

$1.89

10

SPRING

09440-08042

$2.80

11

PIN, REAR

09209-13006

$4.73

12

NUT

09150-06015

$3.26

13

CLAMP

09407-14403

$2.24

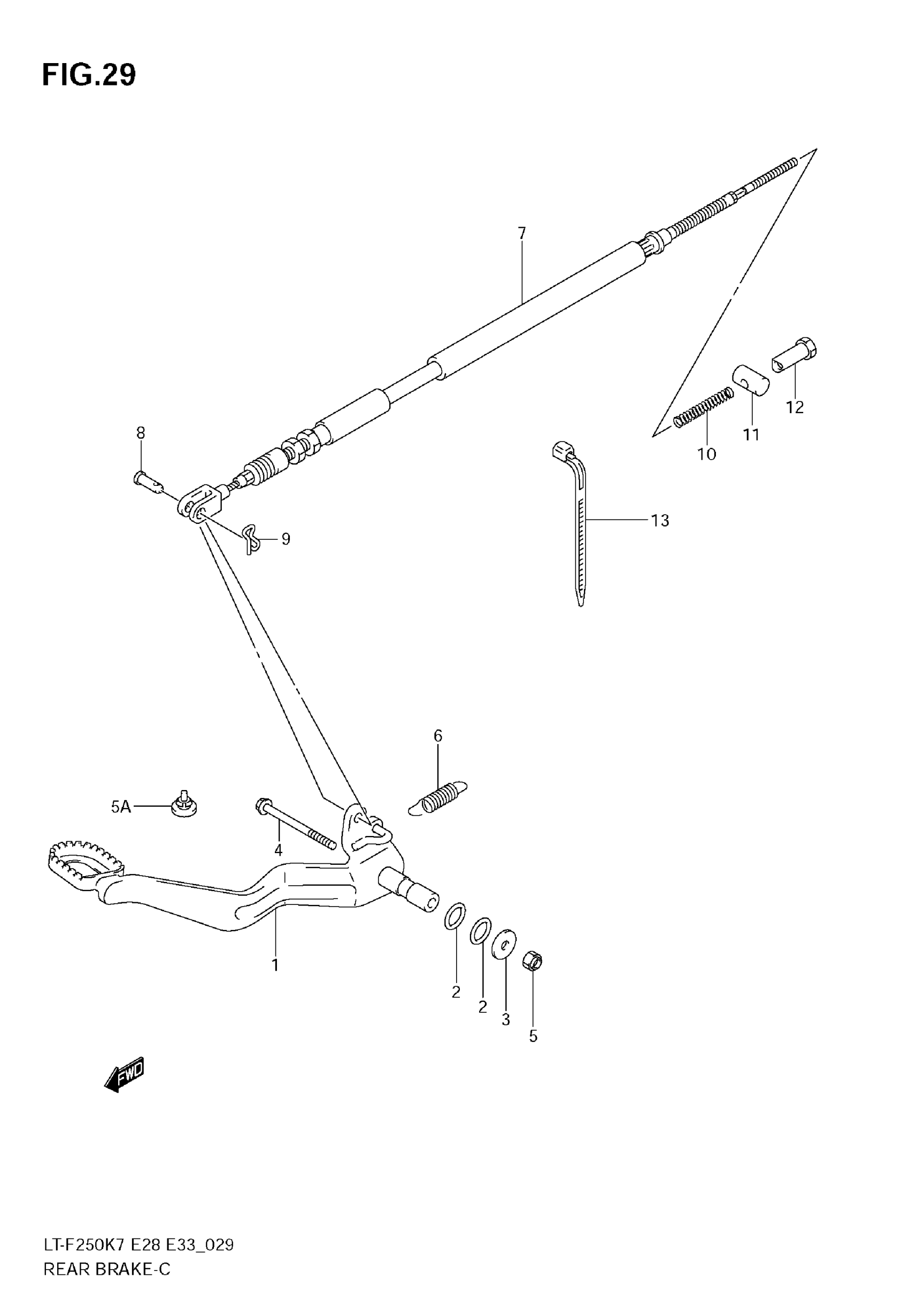

Suzuki LT-F250 (2009) REAR BRAKE Diagram
