2006 Suzuki LT-F250 Headlamp Diagram

← All diagrams

Find the part on the Headlamp diagram for your 2006 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

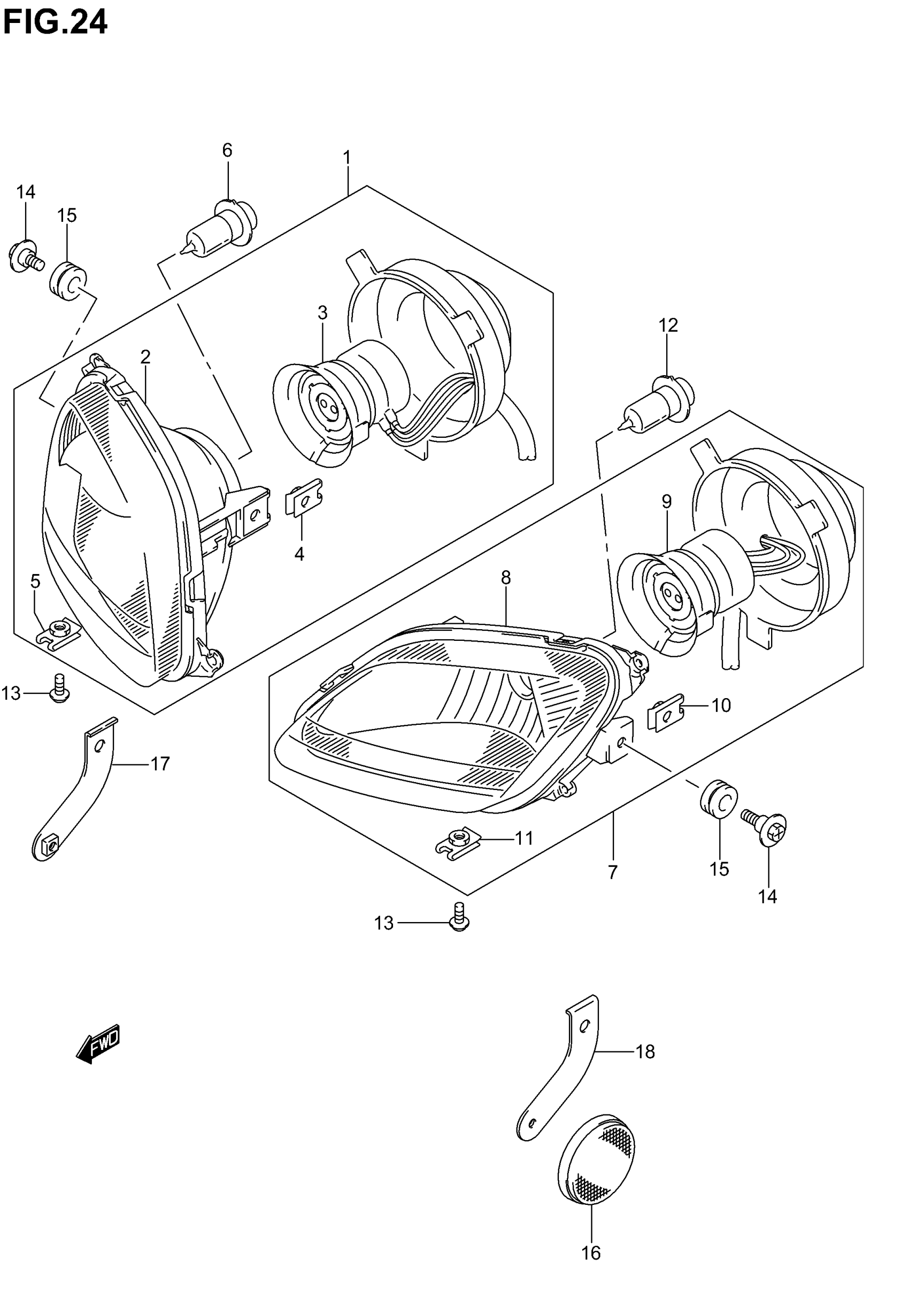

2006 Suzuki LT-F250 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY, RH | FOR YT8,YT9,019

35100-05G00-999

1
Out of stock

1

HEADLAMP ASSY, RH | FOR YU1,YLG; Includes Item(s) 2 - 5

35100-05G10-999

1
Out of stock

2

UNIT, RH | FOR YT8,YT9,019

35121-03G00

1
Out of stock

2

UNIT, RH (BLACK) | FOR YU1,YLG

35121-05G10

1
Out of stock

3

CORD ASSY, RH

35171-05GR0

1
Out of stock

4

NUT (M6)

35157-05G90

2
Out of stock

5

NUT (M5)

35157-05G50

1
Out of stock

6

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

1
Out of stock

7

HEADLAMP ASSY, LH | FOR YT8,YT9,019

35300-05G00-999

1
Out of stock

7

HEADLAMP ASSY, LH | FOR YU1,YLG; Includes Item(s) 8 - 11

35300-05G10-999

1
Out of stock

8

UNIT, LH | FOR YT8,YT9,019

35321-03G00

1
Out of stock

8

UNIT, LH (BLACK) | FOR YU1,YLG

35321-05G10

1
Out of stock

9

CORD ASSY, LH

35171-05GL0

1
Out of stock

10

NUT (M6)

35157-05G90

2
Out of stock

11

NUT (M5)

35157-05G50

1
Out of stock

12

BULB (12V,30/30W) This part replaces 09471-12097.

09471-12093

1
Out of stock

13

SCREW, ADJUST (5X16)

09136-05046

2
Out of stock

14

SCREW, HEADLAMP

09139-06118

4
Out of stock

15

CUSHION

09320-10501

4
Out of stock

16

REFLEX REFLECTOR ASSY, FR | E28

35950-14A00

2
Out of stock

17

BRACKET, RH | E28

35956-05G00

—
Out of stock

18

BRACKET, LH | E28

35957-05G00

—
Out of stock
