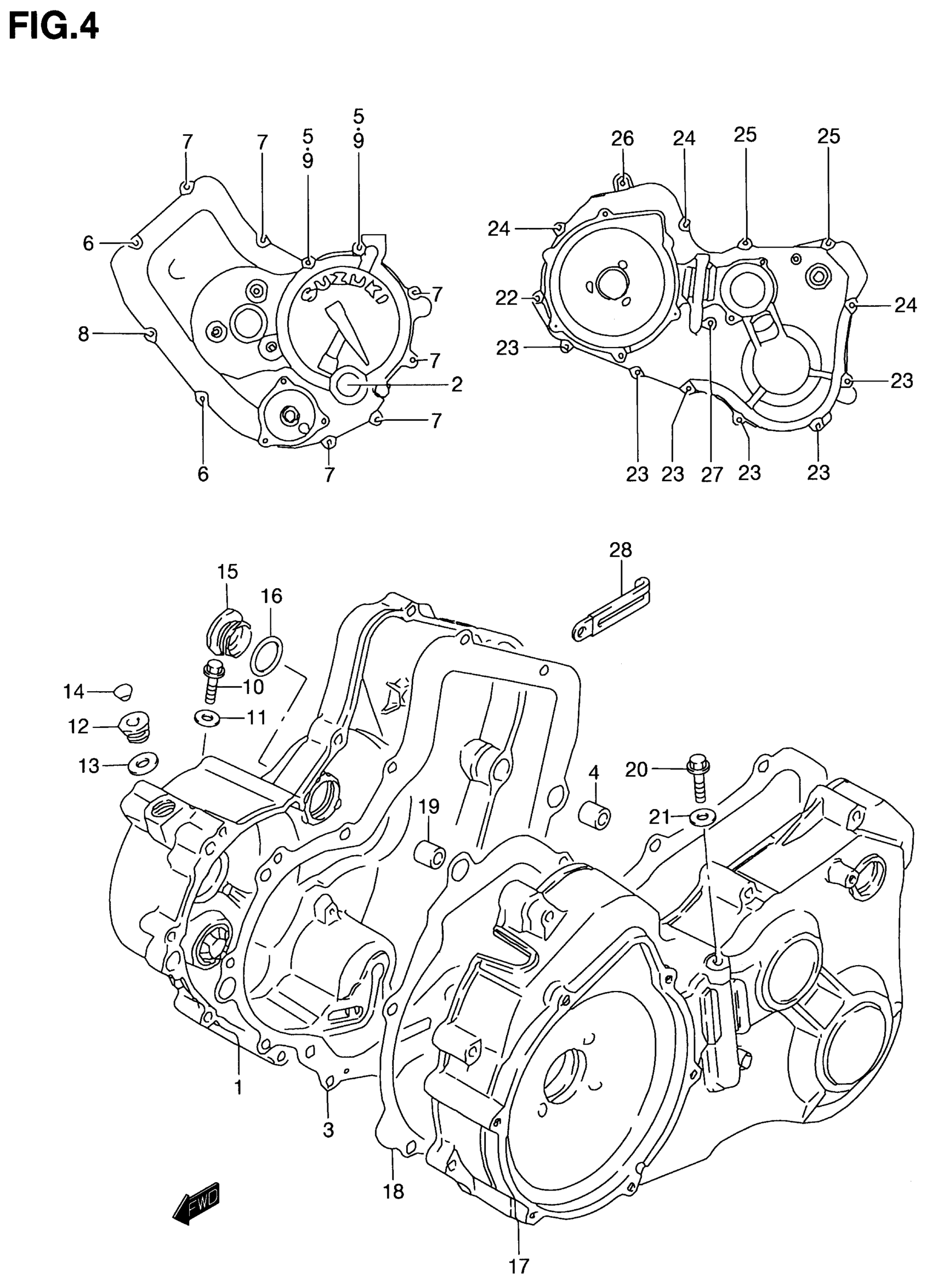

Suzuki LT-F250 (2001) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | MODEL X/Y

11340-19B20

Unavailable

1

COVER, CLUTCH | MODEL K1; Includes Item(s) 2

11340-19B40

Unavailable

2

LENS, OIL CHECK

11971-33210

$16.66

3

GASKET, CLUTCH This part replaces 11482-19B12.

11482-19B13

$25.41

4

PIN (10.4X13X18)

04211-13189

$2.19

5

BOLT (6X100)

09103-06501

$4.53

6

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

7

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

8

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

9

GASKET | MODEL X/Y

09168-06023

$2.01

9

GASKET | MODEL K1

09168-06023

$2.01

10

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

11

GASKET

09168-08015

$2.77

12

PLUG, OIL GALLERY (16X8) | MODEL X/Y

09248-16012

$4.19

12

PLUG (18X8) | MODEL K1 This part replaces 09248-18005.

09248-18011

$7.98

13

GASKET (16X22X2) | MODEL X/Y

09168-16002

$1.89

13

GASKET (18X24X2) | MODEL K1

09168-18009

$4.20

14

CAP

09250-08012

$2.35

15

CAP, CLUTCH ADJUST

09259-30005

$10.57

16

O RING (D:3.1,ID:26.4)

09280-26006

$2.77

17

COVER, TRANSFER | MODEL X/Y

11351-19B12

Unavailable

17

COVER, TRANSFER | MODEL K1

11351-19B20

Unavailable

18

GASKET, TRANSFER COVER

11483-19B13

$26.63

19

PIN (10.4X13X18)

04211-13189

$2.19

20

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

21

GASKET

09168-06023

$2.01

22

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

$2.43

23

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

24

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

25

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

26

BOLT This part replaces 01547-06553.

01547-0655B

$2.74

27

BOLT This part replaces 01547-06653.

01547-0665B

$2.92

28

CLAMP(L:80) This part replaces 09404-06434.

09404-06036

$1.76
