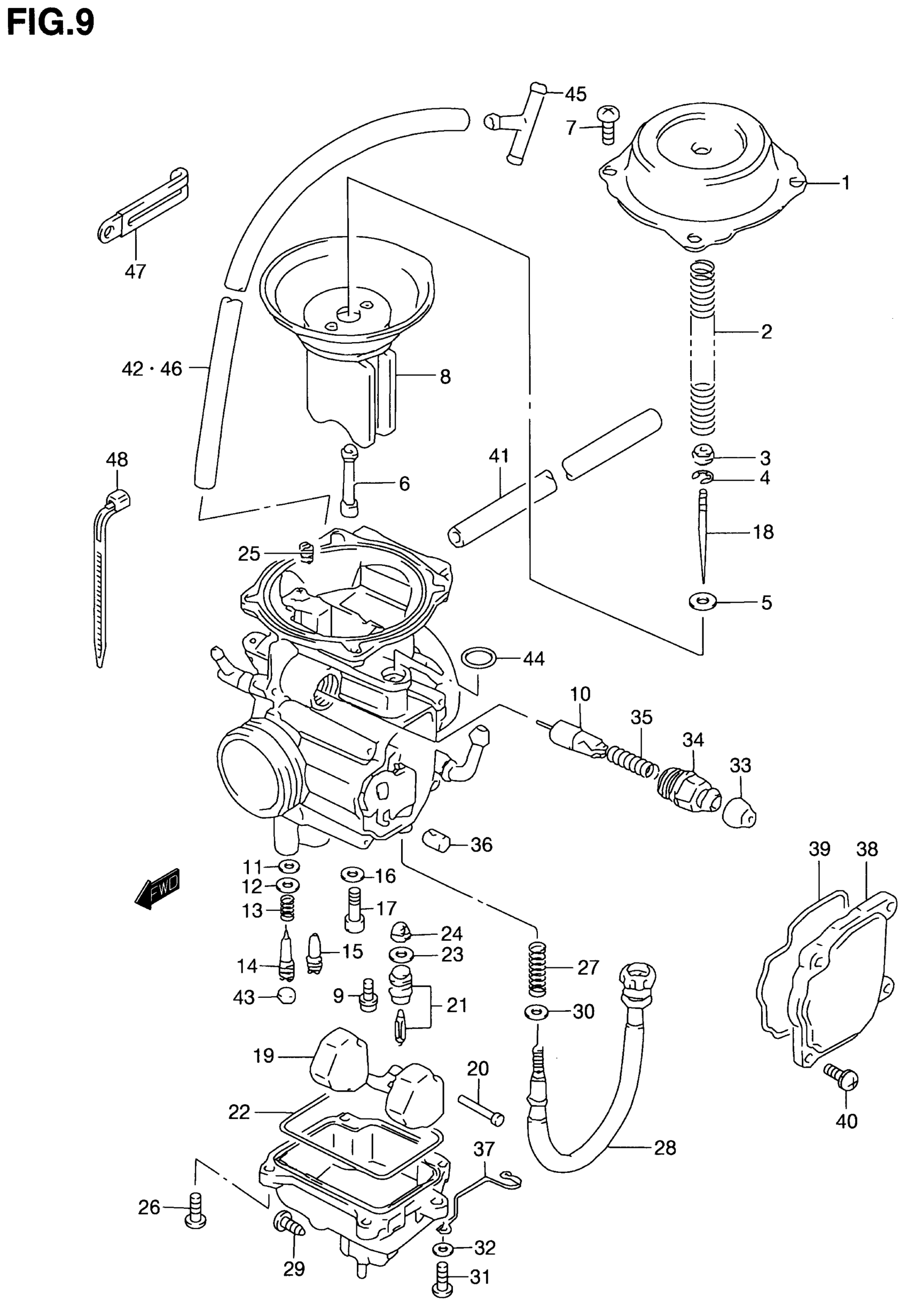

2001 Suzuki LT-F250 Carburetor Diagram
Find the part on the Carburetor diagram for your 2001 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
CARBURETOR ASSY | E3,E28 This part replaces 13200-19BA1.
13200-19BA3
NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 1 - 19 This part replaces 13200-39D00.
13200-39D01
2
SPRING | E33
13417-26B00
6
JET, NEEDLE (P-4) | E3,E28
09494-00512
6
JET, NEEDLE (O-6M) | E33
09494-00911
8
DIAPHRAGM ASSY | E3,E28 This part replaces 13500-19B62.
13500-19B63
8
DIAPHRAGM ASSY | E33 This part replaces 13500-39D00.
13500-39D01
10
PLUNGER ASSY | E33
13411-19BE0
11
O-RING This part replaces 13295-29900.
13295-29901
12
WASHER
13291-29900
18
NEEDLE, JET (5D67-3) | E3,E28
13383-19B60
18
NEEDLE, JET (5D84-1) | E33
13383-39D00
25
JET, PILOT AIR (170) | E33
09493-34001
32
WASHER This part replaces 08322-01043.
08322-0104A
37
CLIP
13692-19B60
46
HOSE, AIR VENT | E3,E28 L:2000?650
09359-50823-00B
48
CLAMP, BOOST HOSE
09407-14403
