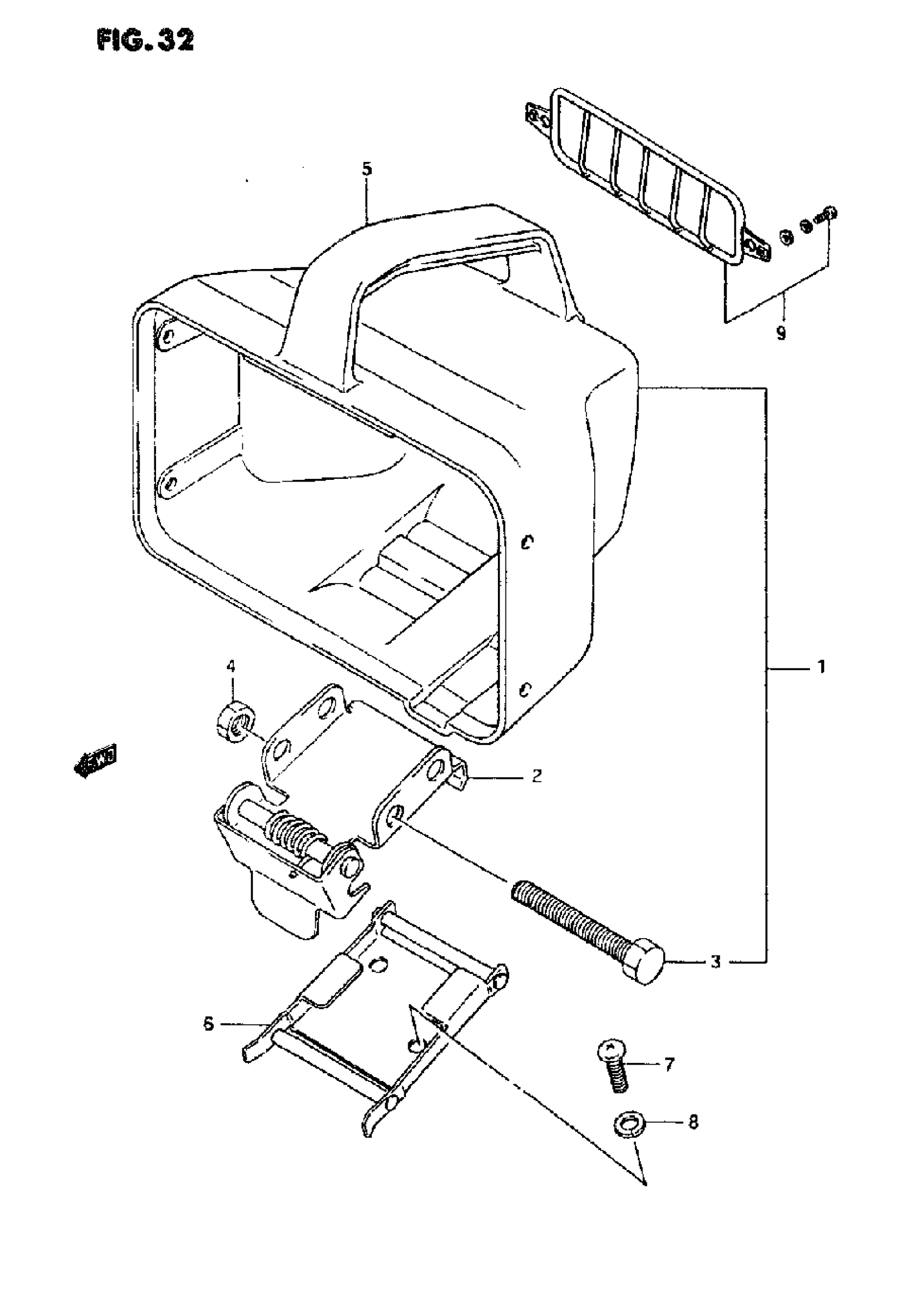

Suzuki LT-F250 (1995) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK) | MODEL J 51811-41B01-291 This part replaces 51800-41B01-291.

51811-41B01-291

Unavailable

2

BOLT

51870-41B01

Unavailable

3

BOLT This part replaces 01107-08605.

01500-0860B

$3.32

4

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.87

5

HOMING, HEADLAMP (BLACK) | MODEL K/L/M/N/P/R/S/T

51811-41B01-291

Unavailable

6

PLATE, HEADLAMP HOUSING

51860-41B01

Unavailable

7

SCREW | MODEL J/K/L This part replaces 02112-06163.

02112-0616A

$1.46

7

SCREW | MODEL M/N/P This part replaces 02112-36166.

02112-3616A

$2.03

7

SCREW | MODEL R/S/T This part replaces 02112-36163.

02112-3616A

$2.03

8

LOCK WASHER | MODEL J/K/L This part replaces 08321-01063.

08321-0106A

$1.89

9

GUARD, HEADLAMP | OPT

48500-19841

Unavailable
