1995 Suzuki LT-F250 Elctrical Diagram

← All diagrams

Find the part on the Elctrical diagram for your 1995 Suzuki LT-F250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

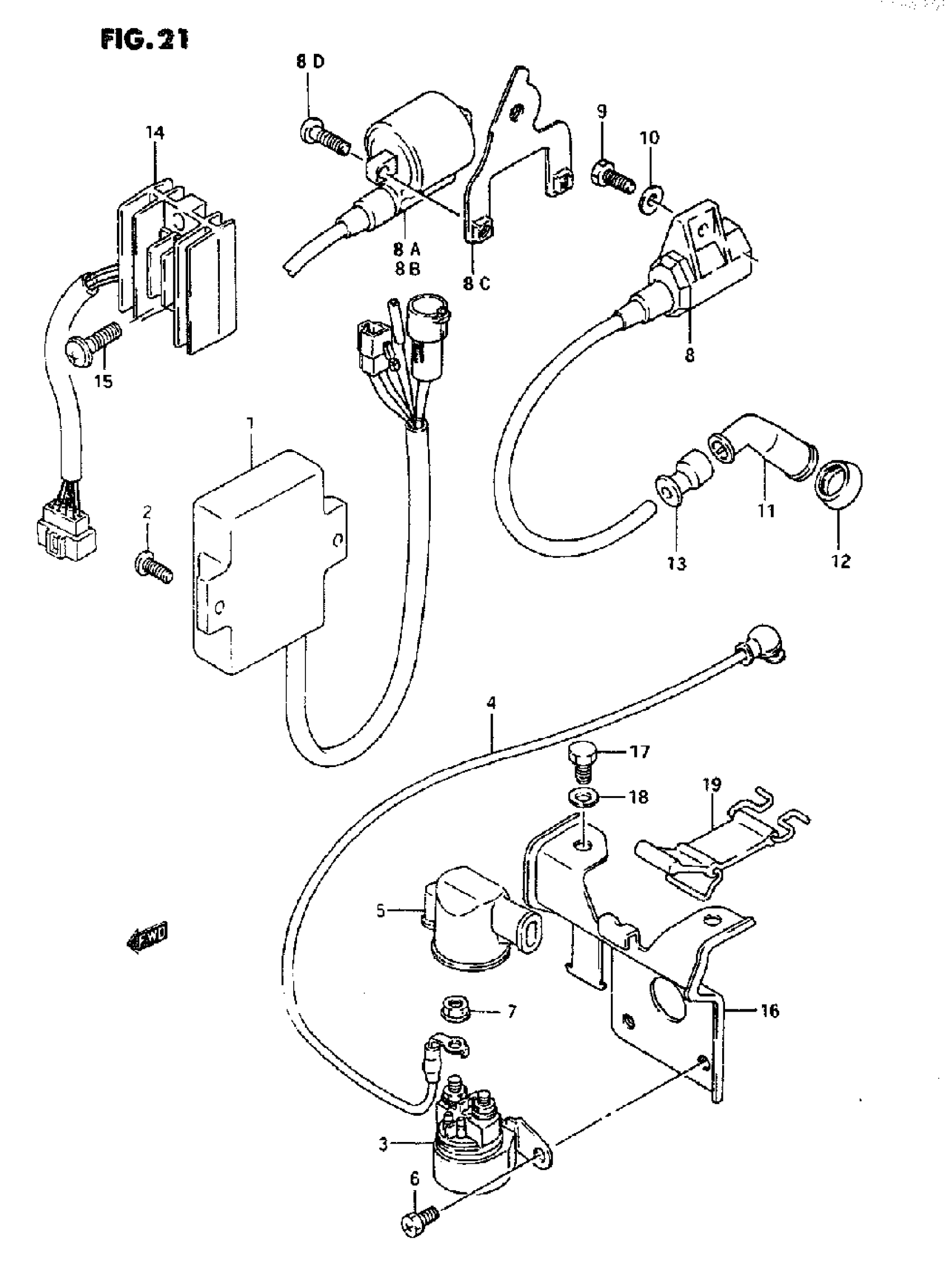

1995 Suzuki LT-F250 Elctrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I UNIT | MODEL J/K

32900-19B00

1
Out of stock

1

C.D.I UNIT | MODEL L This part replaces 32900-19B10.

32900-19B20

1
Out of stock

1

C.D.I UNIT | MODEL M/N/P/R

32900-19B20

1
Out of stock

1

C.D.I UNIT | MODEL S/T

32900-19B50

1
Out of stock

2

SCREW | MODEL J/K/L/M/N This part replaces 02152-06126.

02112-1612B

2
Out of stock

2

SCREW | MODEL P/R/S/T This part replaces 02112-76163.

02112-7616A

2
Out of stock

3

RELAY, STARTING MOTOR

31800-49100

1
Out of stock

4

LEAD WIRE, STARTING MOTOR

33850-19B00

1
Out of stock

5

CAP, TERMINAL

31861-46D00

1
Out of stock

6

SCREW

09128-06013

2
Out of stock

7

NUT This part replaces 08361-35068.

08361-3506A

2
Out of stock

8

UNIT & COIL ASSY, IGNITION | MODEL J/K This part replaces 33410-42A00.

33410-22AV0

1
Out of stock

8

COIL ASSY, IGNITION | MODEL L/M/N/P/R This part replaces 33410-19B00.

33410-01X50

1
Out of stock

8

COIL ASSY. IGNITION | MODEL S/T

33410-01X50

1
Out of stock

8

BRACKET, IGNITION COIL | MODEL L/M/N/P/R/S/T

33416-19B00

1
Out of stock

9

BOLT | MODEL J/K This part replaces 01107-06166.

01500-0616A

1
Out of stock

10

.WASHER | MODEL J/K This part replaces 08322-21066.

08322-0106B

1
Out of stock

11

CAP, SPARK PLUG

33510-43010

1
Out of stock

12

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

1
Out of stock

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

1
Out of stock

14

RECTIFIER ASSY | MODEL J/K This part replaces 32800-19B00.

32800-19B11

1
Out of stock

14

RECTIFIER ASSY | MODEL L/M/N/P/R/S/T

32800-19B11

1
Out of stock

15

SCREW | MODEL J/K/L/M/N/P This part replaces 02112-16206.

02142-0620A

2
Out of stock

15

SCREW | MODEL R/S/T This part replaces 02142-06203.

02142-0620A

2
Out of stock

16

HOLDER, ELECTRIC PARTS REAR

47410-19B10

1
Out of stock

17

BOLT This part replaces 01107-06127.

01500-06127

2
Out of stock

18

2

$2.28

In stock

19

BAND, TOOL

09462-00090

1
Out of stock
