1996 Suzuki LT-F160T Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1996 Suzuki LT-F160T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

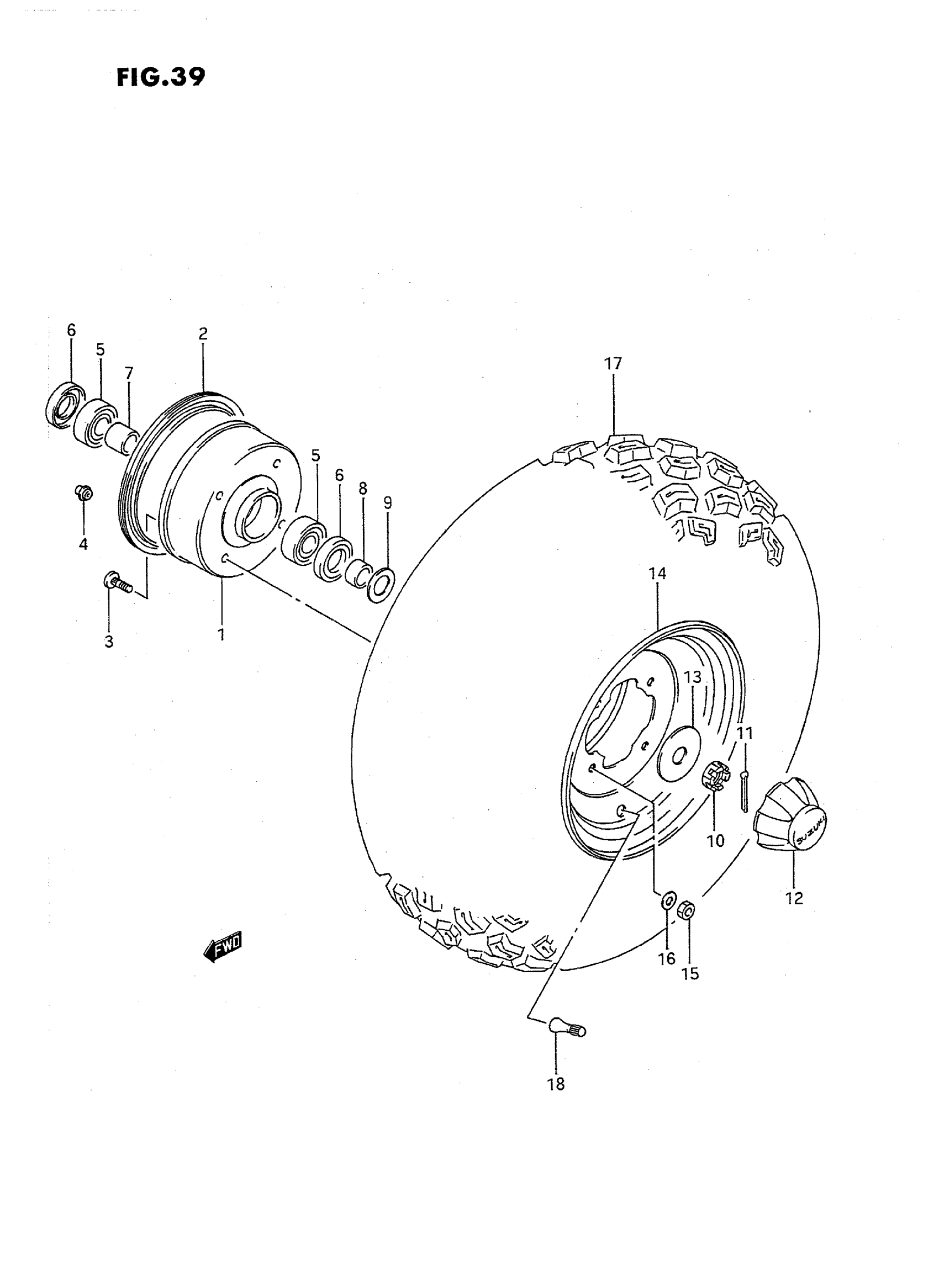

1996 Suzuki LT-F160T Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$339.45

In stock

2

DUST SEAL, DRUM BRAKE

54124-02C00

2

$71.92

In stock

3

BOLT, FRONT HUB

09119-08073

8

$3.63

In stock

4

PLUG, BRAKE HOLE

54265-02C00

2
Out of stock

5

BEARING

08120-62037

4

$20.79

In stock

6

DUST SEAL

09284-22002

4

$13.69

In stock

7

SPACER, FRONT HUB

54731-02C00

2

$13.35

In stock

8

SPACER, FRONT AXLE

54741-189A0

2

$6.81

In stock

9

WASHER | MODEL M/N/P

08322-01167

2

$2.43

In stock

10

2

$3.74

In stock

11

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

2
Out of stock

12

2

$15.15

In stock

13

HOLDER, CAP | MODEL M/N/P/R This part replaces 64726-40BA0.

64726-40B00

2
Out of stock

13

HOLDER, CENTER CAP | MODEL S/T

64726-40B00

2
Out of stock

14

RIM, FRONT WHEEL (SILVER)

55310-02C00-13L

2
Out of stock

15

NUT, WHEEL SET | MODEL M/N/P

08316-10087

8
Out of stock

15

8

$2.85

In stock

16

WASHER | MODEL M/N/P

08322-01087

8
Out of stock

17

TIRE, FRONT (AT20X7-8)

55100-02C30

2
Out of stock

18

VALVE ASSY, WHEEL RIM

43130-78030

2

$9.49

In stock
