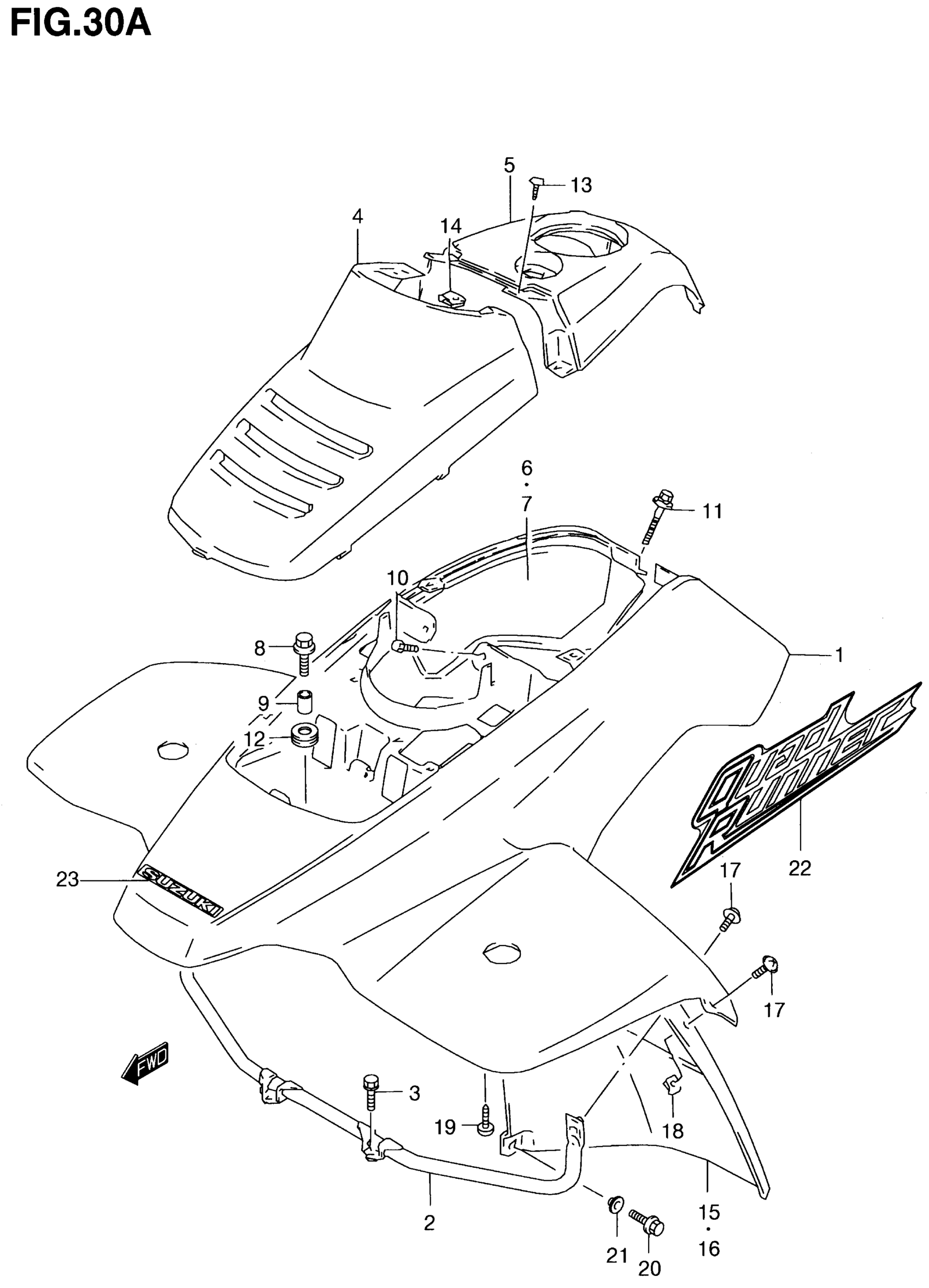

Suzuki LT-F160 (2001) FRONT FENDER (MODEL K1) Diagram

#

Description
Price

1

FENDER, FRONT CENTER (BLUE)

53111-02C11-1LH

Unavailable

1

FENDER, FRONT CENTER (YELLOW)

53111-02C11-25Y

Unavailable

2

BRACE, FRONT FENDER

53210-02C00

Unavailable

3

BOLT This part replaces 01570-06123.

01570-0612A

$2.87

4

FENDER, CENTER FR (CHARCORL) | FOR 1LH

53118-02C00-0LP

$79.71

4

FENDER, CENTER FR (BLACK) | FOR 25Y

53118-02C00-291

$111.05

5

FENDER, CENTER REAR (CHARCORL) | FOR 1LH

53119-02C00-0LP

$86.77

5

FENDER, CENTER REAR (BLACK) | FOR 25Y

53119-02C00-291

$94.15

6

CUSHION, RH

53145-02C00

Unavailable

7

CUSHION, LH

53146-02C00

Unavailable

8

BOLT, FENDER FRONT

09116-06025

$2.28

9

SPACER This part replaces 09180-061C0.

09180-06120

$2.31

10

BOLT, FENDER CENTER

09118-06020

$3.58

11

BOLT, FENDER REAR

09112-06008

Unavailable

12

CUSHION, FRONT

09320-11008

$2.58

13

SCREW This part replaces 03241-15123.

03241-1512B

$2.38

14

NUT

09148-05019

$1.88

15

MUD FLAP, RH

53311-02C00

$167.64

16

MUD FLAP, LH

53312-02C00

$167.64

17

SCREW

09136-06004

$2.13

18

NUT

09146-06003

$2.13

19

SCREW, UPPER

09136-05024

Unavailable

20

BOLT This part replaces 01570-06123.

01570-0612A

$2.87

21

WASHER

09169-06026

$2.00

22

EMBLEM, FRONT FENDER

68151-02C90-YN8

Unavailable

23

EMBLEM, "SUZUKI" | FOR 1LH

68721-05D00-DW6

Unavailable

23

EMBLEM, "SUZUKI" | FOR 25Y

68721-05D00-DW5

Unavailable
