2021 Suzuki LT-A750XPM1 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2021 Suzuki LT-A750XPM1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

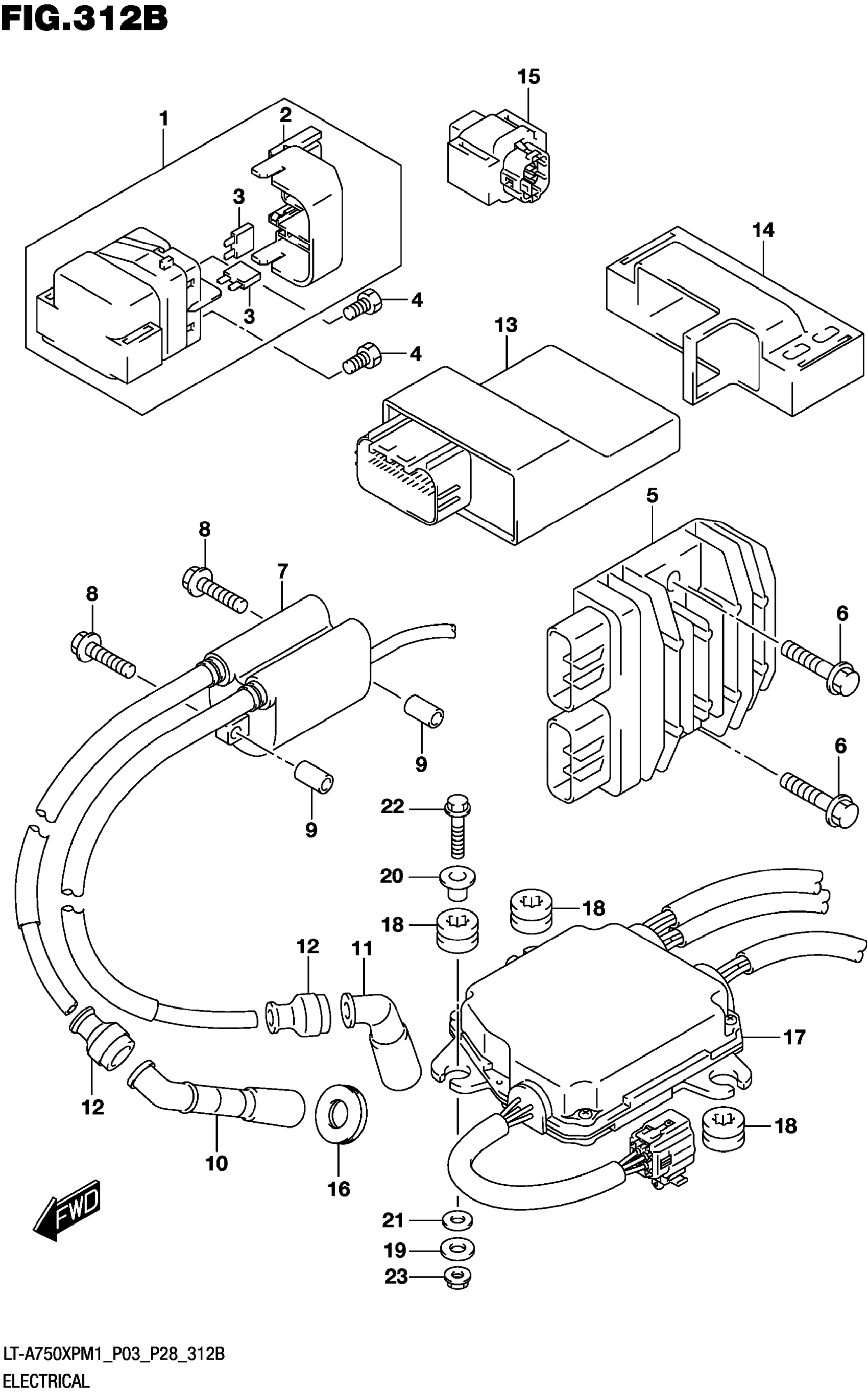

2021 Suzuki LT-A750XPM1 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

2

.COVER

31861-38G00

1
Out of stock

3

.FUSE (30A)

09481-30501

2
Out of stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-26J02

1
Out of stock

6

BOLT (6X25)

01550-0625A

2
Out of stock

7

COIL ASSY, IGNITION

33410-40H01

1
Out of stock

8

BOLT

01547-0640A

2
Out of stock

9

SPACER (6.4X10X18)

09180-06195

2
Out of stock

10

CAP ASSY,SPARK PLUG

33510-31G00

1
Out of stock

11

CAP ASSY,SPARK PLUG

33510-31G10

1
Out of stock

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

2
Out of stock

13

CONTROL UNIT,FI

32920-34K11

1
Out of stock

14

HOLDER, FI CONTROL UNIT

32980-31GA0

1
Out of stock

15

SENSOR ASSY,FUEL CUT

33960-27G00

1
Out of stock

16

COVER,SPARK PLUG CAP

33543-33E01

1
Out of stock

17

CONTROL UNIT,EPS

32910-34K00

1
Out of stock

18

CUSHION, EPS

32912-31G00

—
Out of stock

19

WASHER (6.5X15X1.0)

09160-06094

1
Out of stock

20

WASHER

09169-06075

1
Out of stock

21

WASHER

09169-06076

1
Out of stock

22

BOLT (L:30)

01550-0630A

1
Out of stock

23

NUT (6X12)

08316-1006A

1
Out of stock
