2016 Suzuki LT-A750XPL6 Radiator Hose Diagram

← All diagrams

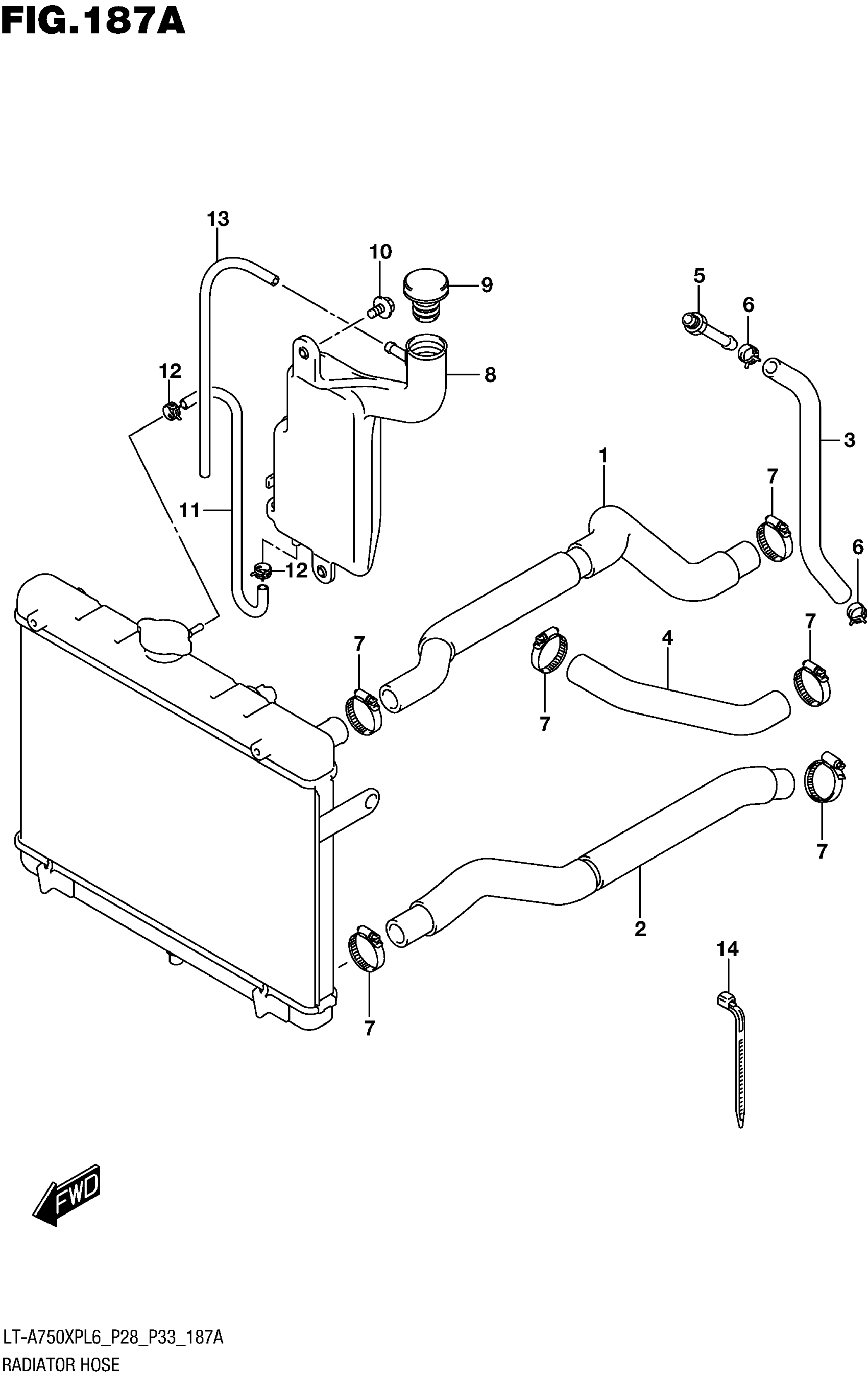

Find the part on the Radiator Hose diagram for your 2016 Suzuki LT-A750XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-A750XPL6 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, RADIATOR INLET

17851-31G00

1
Out of stock

2

HOSE, RADIATOR OUTLET

17852-31G00

1
Out of stock

3

HOSE, WATER BYPASS

17854-24F00

1
Out of stock

4

HOSE,WATER PUMP OUTLET

17854-31G00

1
Out of stock

5

UNION

09362-09011

1
Out of stock

6

CLIP

09401-12414

2
Out of stock

7

CLAMP

09402-32512

6
Out of stock

8

TANK,RESERVOIR This part replaces 17911-31G01.

17911-34K00

1
Out of stock

9

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

10

BOLT (6X16)

09116-06165

2

$3.30

In stock

11

HOSE, RSVR TANK INLET | L:600->450

17900-44810

1
Out of stock

12

CLIP

09401-08411

2
Out of stock

13

HOSE (5X9X600) | L:600->360

09352-50901-600

1
Out of stock

14

CLAMP (L:190)

09407-19401

1
Out of stock
