2016 Suzuki LT-A750XPL6 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2016 Suzuki LT-A750XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

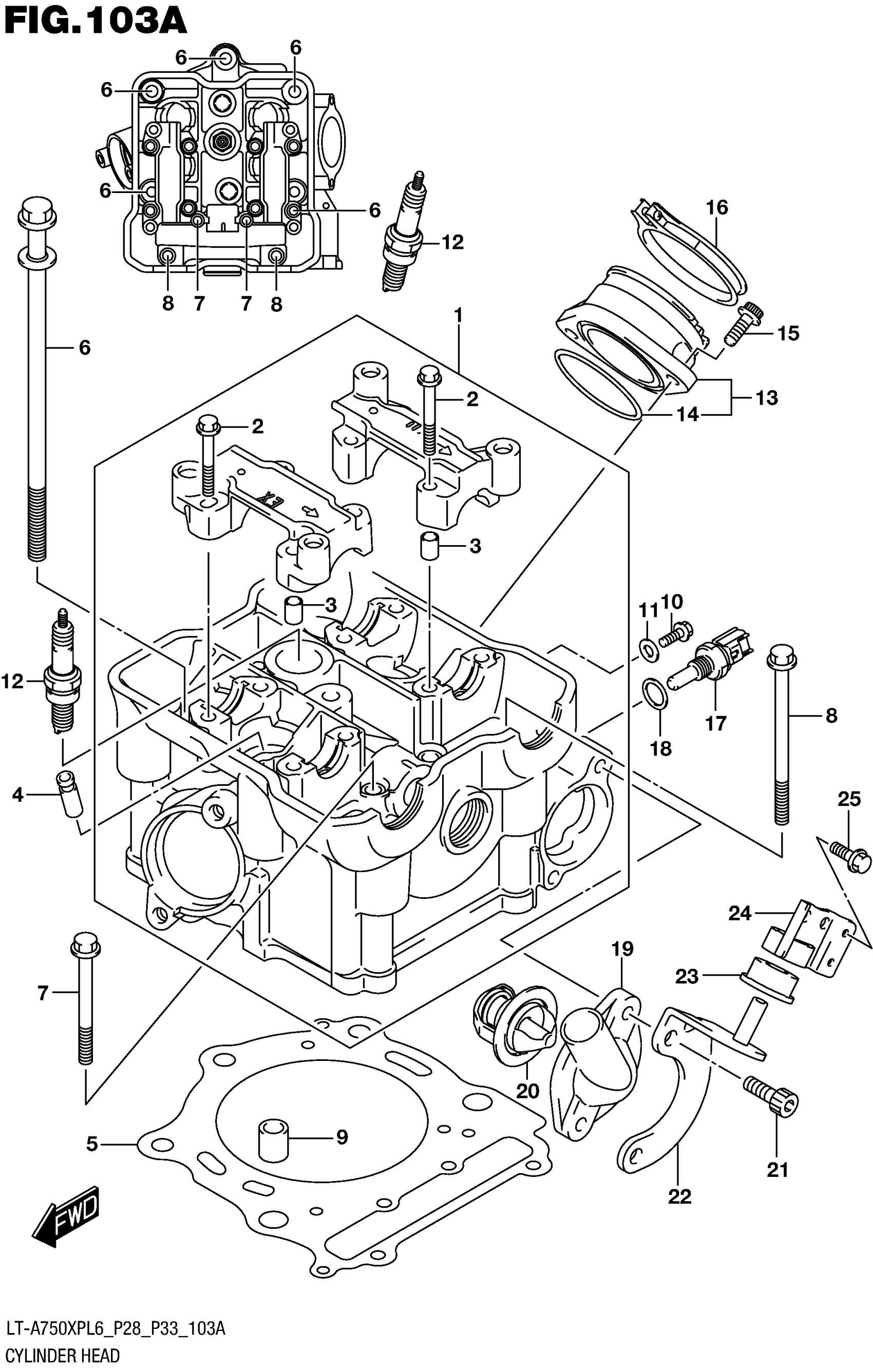

2016 Suzuki LT-A750XPL6 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY,CYLINDER

11100-31G50

1
Out of stock

2

.BOLT (6X40)

09103-06266

8
Out of stock

3

.PIN (8X11)

09206-08001

4
Out of stock

4

GUIDE, VALVE (OS:0.3) | OPT

11115-32E70

4
Out of stock

5

GASKET, CYLINDER HEAD

11141-31G50

1
Out of stock

6

BOLT,CYLINDER HEAD (L:200)

11161-31G00

5
Out of stock

7

BOLT (6X100)

09103-06060

2
Out of stock

8

BOLT (6X70)

09103-06103

2
Out of stock

9

PIN

04211-13189

2
Out of stock

10

BOLT (6X12)

09103-06222

1
Out of stock

11

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

12-1

SPARK PLUG (LMAR7A-9) | NGK

09482-00624

2
Out of stock

12-2

SPARK PLUG (LMAR6A-9) | OPT

09482-00623

2
Out of stock

12-2

SPARK PLUG (LMAR6A-9) | NGK

09482-00623

1
Out of stock

12-3

SPARK PLUG (LMAR8A-9) | OPT

09482-00625

—
Out of stock

12-3

SPARK PLUG (LMAR8A-9) | NGK

09482-00625

—
Out of stock

13

PIPE ASSY,INTAKE This part replaces 13101-31G00.

13101-31G01

1
Out of stock

14

.O RING

13118-31G00

1

$5.29

In stock

15

BOLT (6X18)

09106-06105

2
Out of stock

16

CLAMP

09402-62208

1
Out of stock

17

SENSOR, WATER TEMP

13650-10G00

1
Out of stock

18

GASKET (12X17X1)

09168-12017

1
Out of stock

19

COVER THERMOSTAT

17661-31G00

1
Out of stock

20

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

1
Out of stock

21

BOLT

07130-0825A

2
Out of stock

22

PLATE,ENG MTG DAMPER

11653-31G02

1
Out of stock

23

DAMPER, ENG MTG

11654-31G00

1
Out of stock

24

STOPPER, ENG MTG

11655-31G10

1
Out of stock

25

BOLT (8X12)

01550-0812A

2
Out of stock
