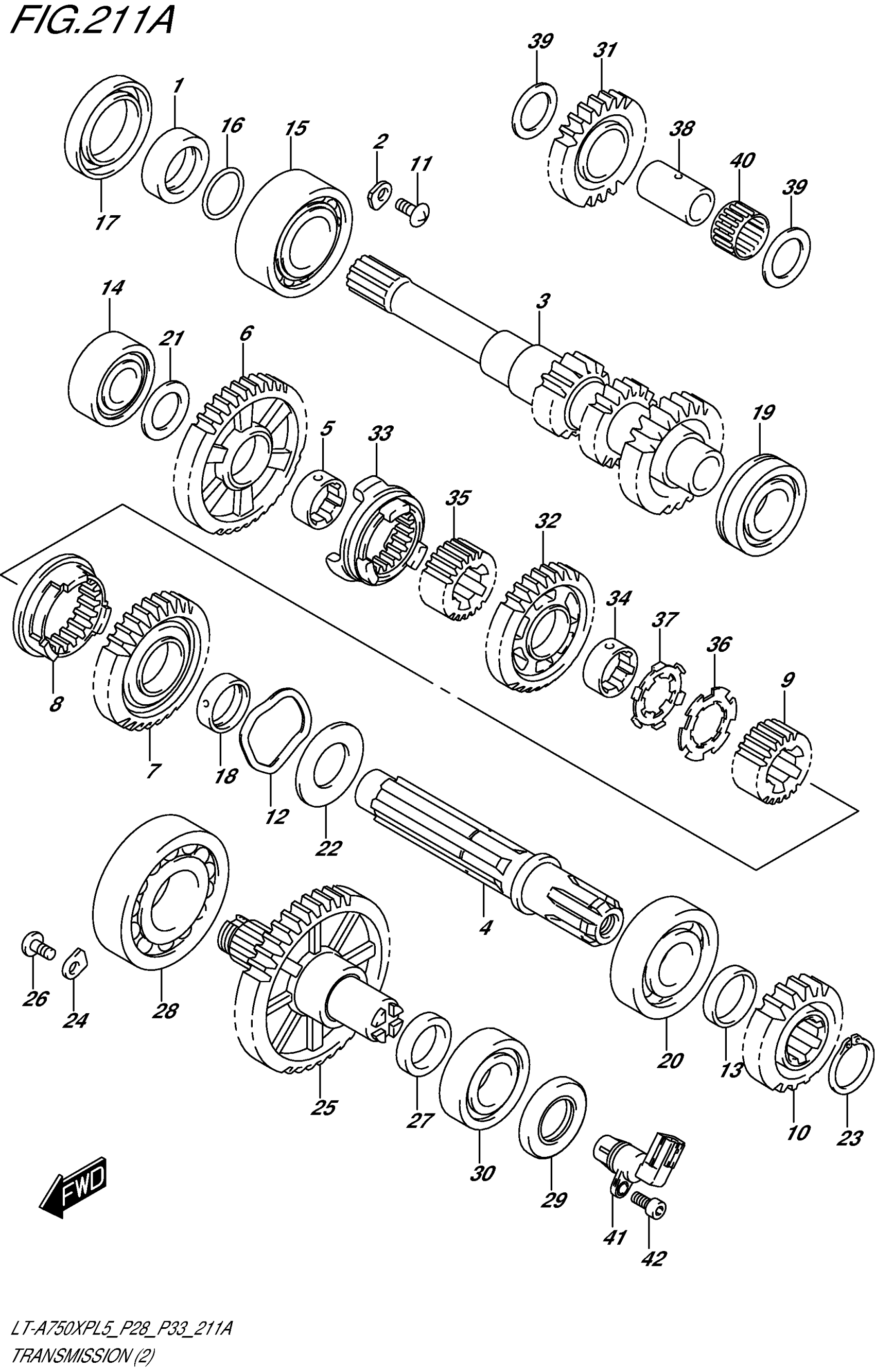

Suzuki LT-A750XPL5 (2015) TRANSMISSION (2) Diagram

SPACER, DRIVE SHAFT

21102-31G00

$34.45

RETAINER, DRIVE SHAFT BRG RH

24741-21A00

$2.80

SHAFT, DRIVE (NT:16/17/25)

29111-31G01

$378.73

SHAFT, SUB T/M COUNTER

29131-31G00

$110.28

BUSH, SUB T/M DRIVEN GR LOW

29215-07G00

$25.08

GEAR, SUB T/M DRIVEN LOW (NT:41)

29311-31G00

$150.17

GEAR, SUB T/M DRIVEN HIGH (NT:31)

29321-31G00

$175.28

DOG, GEAR SHIFT HIGH

29331-31G10

$89.47

SPACER, SUB T/M SELECT

29332-31G00

$49.73

GEAR, SUB T/M DRIVE NO.2 (NT:21)

29411-31G00

$94.17

SCREW (6X12)

09125-06122

$2.54

WASHER

09164-34001

$8.02

SPACER (25X30X7)

09180-25097

$11.10

BEARING (20X47X14)

09262-20139

$48.87

BEARING (30X62X23.8)

09267-30005

$129.92

.O-RING (D:2.4,ID:24.7)

09280-25004

$2.01

OIL SEAL (38X56X7)

09283-38025

$28.75

BUSH, SUB T/M DRIVEN GR

24252-19F00

$19.32

BEARING (25X52X15)

09262-25003

$22.40

BEARING (25X62X17)

09262-25073

$23.39

WASHER

08211-20363

$2.87

WASHER

08211-25463

$4.23

CIRCLIP

08331-31259

$2.70

RETAINER, SEC DRIVE SHAFT BRG

24741-21A00

$2.80

SHAFT, SUB T/M OUTPUT (NT:40)

29120-31G00

$280.50

SCREW (6X12)

09125-06122

$2.54

SPACER (25X34X5.5)

09180-25083

$15.42

BEARING (35X80X21)

09262-35076

$80.07

SEAL,OIL (25X45X5)

09283-25076

$9.33

BEARING (25X52X15)

09262-25003

$22.40

GEAR, REVERSE IDLE (NT:23)

24561-31G20

Unavailable

GEAR, REVERSE DRIVEN (NT:32)

24571-31G00

$128.95

DOG, SUB T/M SELECT SLIDING

24581-31G00

$97.15

BUSH, REVERSE DRIVEN GEAR

29215-07G00

$25.08

SPACER, REVERSE SELECT

29332-31G00

$49.73

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.58

WASHER

09169-25001

$2.95

SHAFT, REVERSE IDLE GEAR

24551-31G00

Unavailable

SHIM (20X30X1)

09181-20195

$2.68

BEARING (20X24X13)

09263-20060

$22.53

SENSOR, SPEED

34990-31G01

$105.97

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38
