2015 Suzuki LT-A750XPL5 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2015 Suzuki LT-A750XPL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

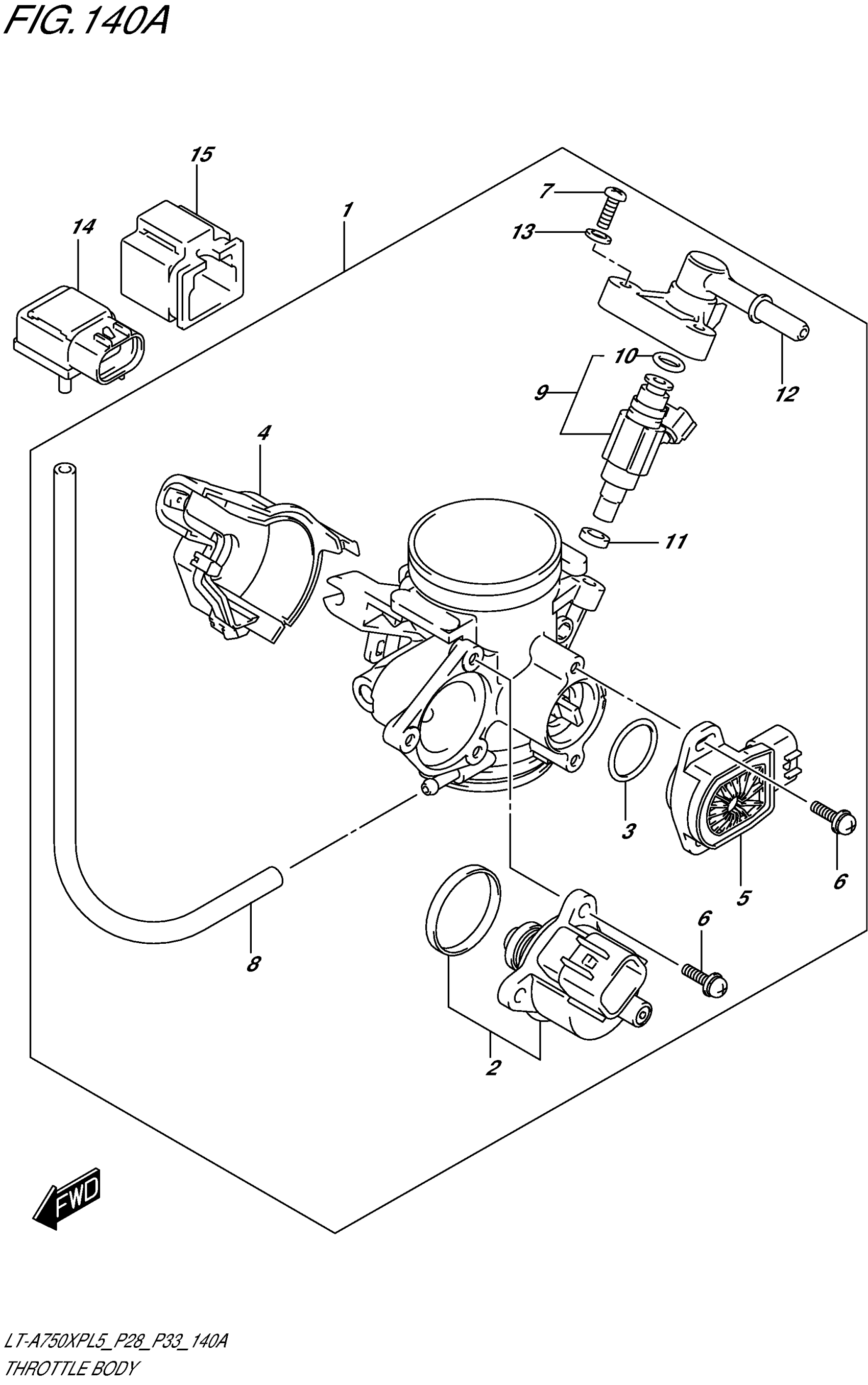

2015 Suzuki LT-A750XPL5 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13400-31G10

1
Out of stock

2

MOTOR, ISC STEPPING

13520-31G00

1
Out of stock

3

.O-RING

13575-31G00

1
Out of stock

4

COVER

13578-31G00

1
Out of stock

5

SENSOR ASSY

13580-31G00

1
Out of stock

6

SCREW

13601-13G00

5
Out of stock

7

SCREW

13601-11J00

2
Out of stock

8

HOSE This part replaces 13683-10F70.

13683-10F71

1
Out of stock

9

INJECTOR ASSY

15710-31G10

1
Out of stock

10

O RING

15717-31G00

1
Out of stock

11

SEAL

15722-29G00

1
Out of stock

12

DELIVERY PIPE

15731-31G10

1
Out of stock

13

PACKING This part replaces 13602-29G00.

13602-29G01

2
Out of stock

14

SENSOR, AIR PRESSURE

15620-10G00

1
Out of stock

15

HOLDER, AIR PRESSURE

15625-10G00

1
Out of stock
