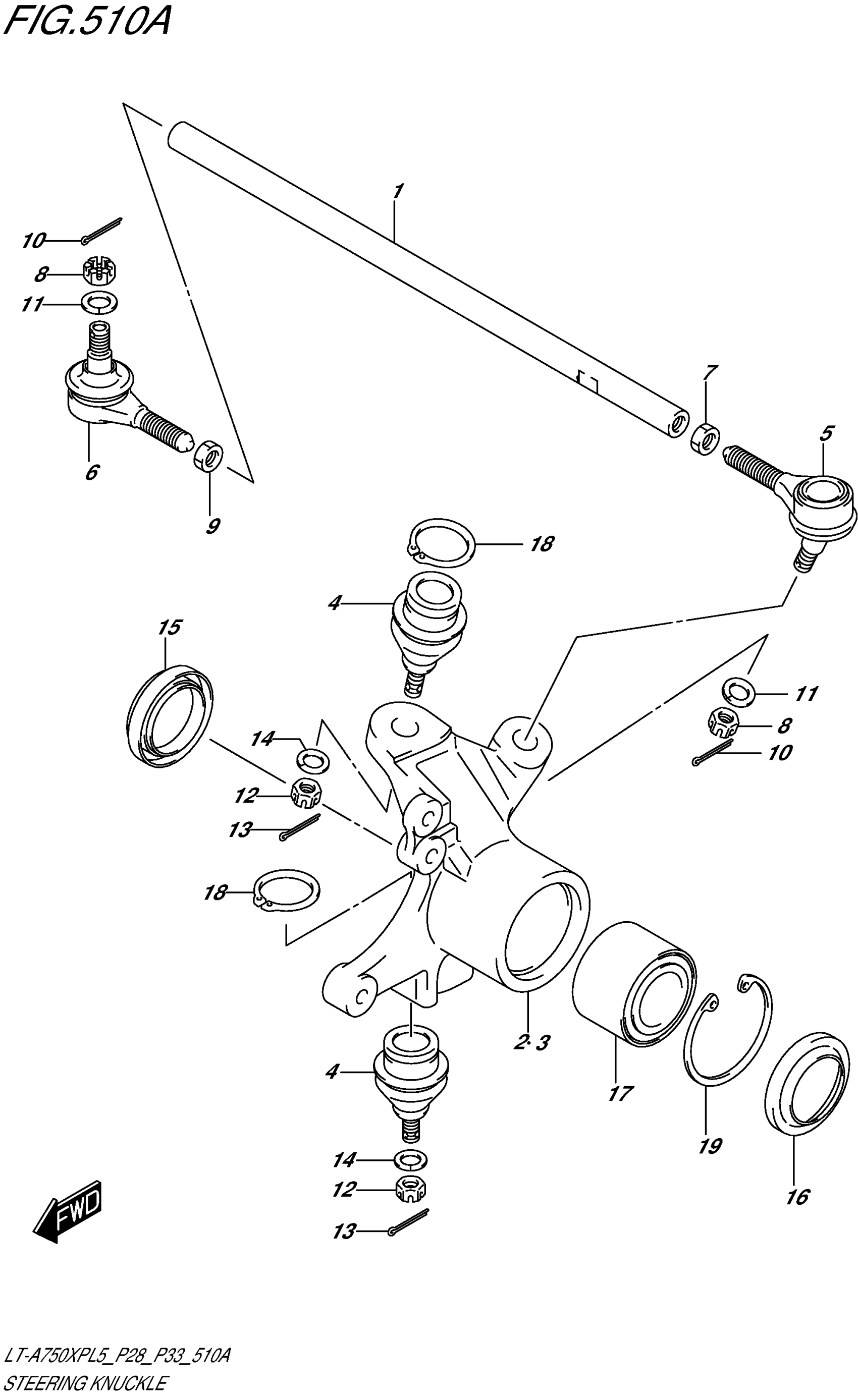

Suzuki LT-A750XPL5 (2015) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-31G40

$108.95

2

KNUCKLE, STEERING RH

51231-31G20

$390.70

3

KNUCKLE, STEERING LH

51241-31G20

$405.58

4

END, KNUCKLE STEERING

51210-31G10

$62.90

5

ROD, END, RH

51260-45G00

$55.20

6

ROD, END, LH

51270-45G00

$56.78

7

NUT, TIE ROD (RH THREAD)

51283-09F00

$4.63

8

NUT

08314-4010B

$2.58

9

NUT

09140-12035

$2.80

10

PIN

04111-2020A

$1.25

11

WASHER (10.5X19X2)

09160-10082

$1.66

12

NUT

08314-4010B

$2.58

13

PIN

04111-2020A

$1.25

14

WASHER (10.5X19X2)

09160-10082

$1.66

15

OIL SEAL (38X55X8)

09283-38012

$13.70

16

OIL SEAL (38X55X6)

09285-38002

$12.97

17

BEARING This part replaces 51259-31G00.

51259-31G10

$97.27

18

CIRCLIP

08331-31309

$2.68

19

CLIP

08331-41559

$3.49
