2015 Suzuki LT-A750XPL5 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 2015 Suzuki LT-A750XPL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

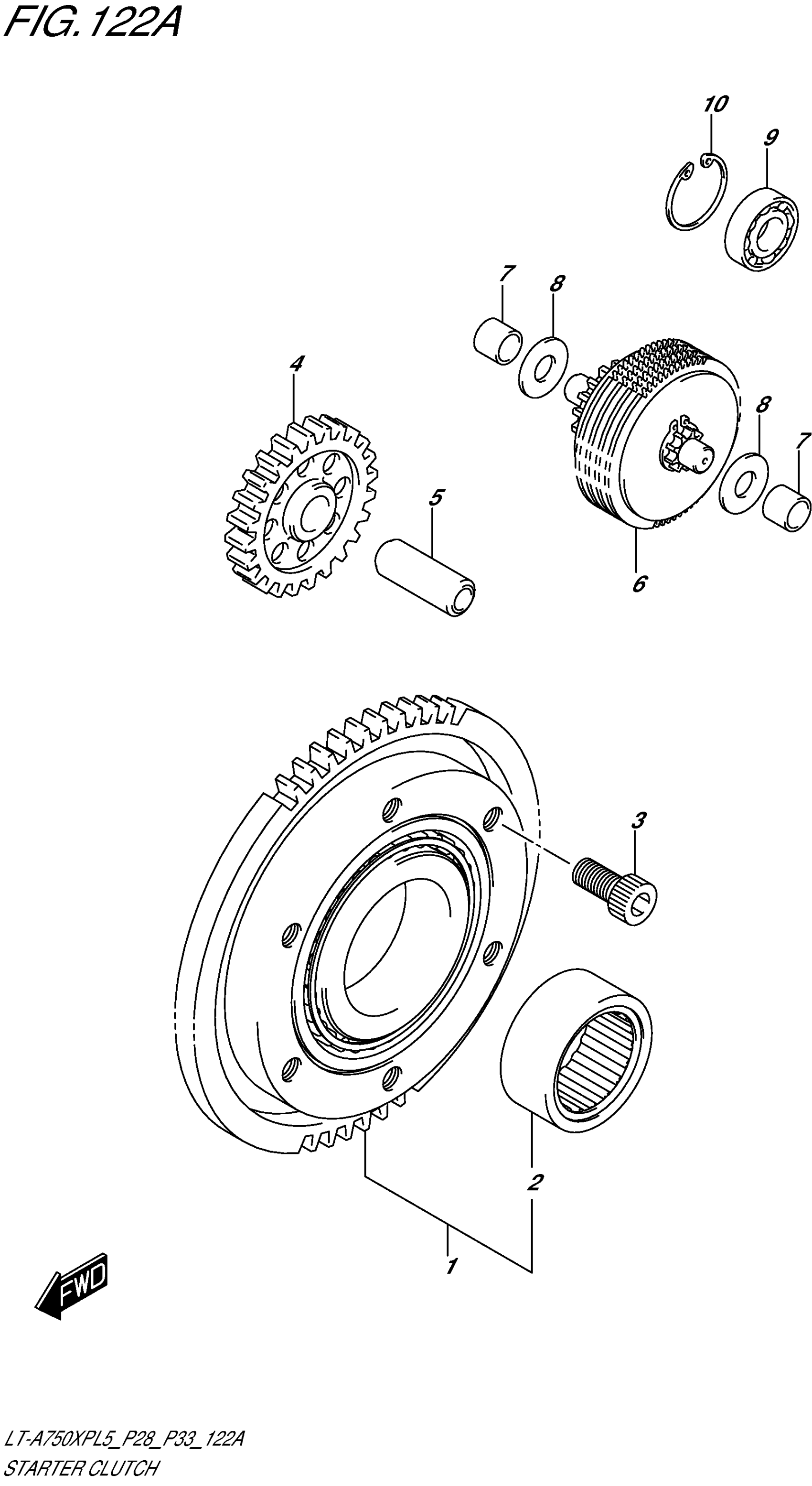

2015 Suzuki LT-A750XPL5 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$386.90

In stock

2

BEARING (35X45X20)

09263-35042

1

$53.02

In stock

3

BOLT (8X20)

09106-08106

6
Out of stock

4

1

$98.00

In stock

5

PIN (8X12X33)

09206-12007

1

$6.74

In stock

6

1

$216.98

In stock

7

2

$4.02

In stock

8

WASHER

08211-10221

2

$2.43

In stock

9

BEARING (12X28X8)

09262-12001

1

$18.14

In stock

10

CIRCLIP

08331-41289

1

$2.92

In stock
