2013 Suzuki LT-A750XPL3 Footrest Diagram

← All diagrams

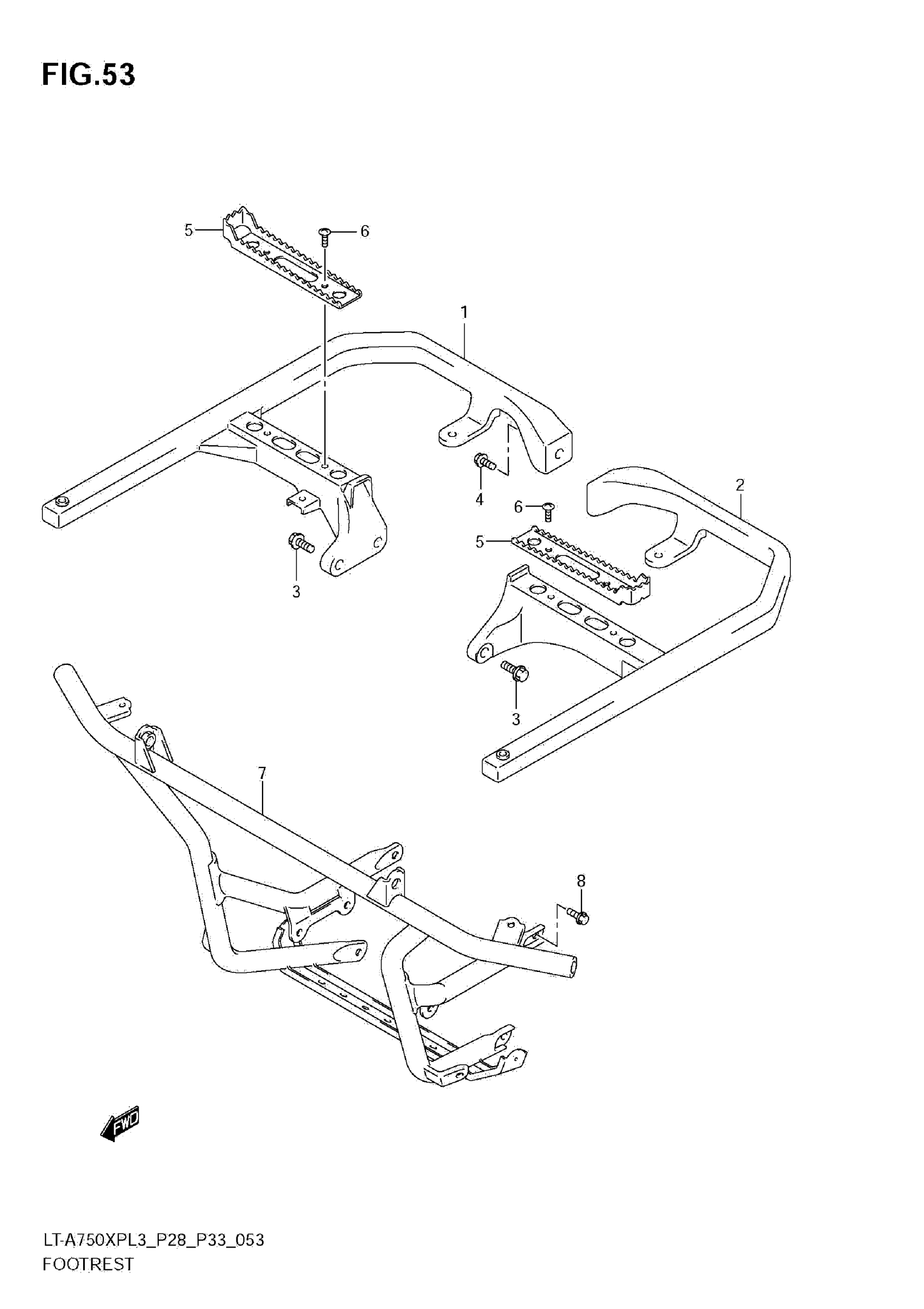

Find the part on the Footrest diagram for your 2013 Suzuki LT-A750XPL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki LT-A750XPL3 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST, FRONT RH This part replaces 43511-31G20.

43510-11HC0

1
Out of stock

2

FOOTREST, FRONT LH This part replaces 43521-31G20.

43520-11HB0

1
Out of stock

3

BOLT (10X25)

09103-10378

4
Out of stock

4

BOLT (8X20)

09103-08286

2
Out of stock

5

PLATE, FOOTREST

43511-31G01

2
Out of stock

6

SCREW

02142-0612B

4
Out of stock

7

GRIP, FRONT

43990-31GB0

1

$217.12

In stock

8

BOLT (8X16) This part replaces 09103-08283.

09103-08570

4
Out of stock
