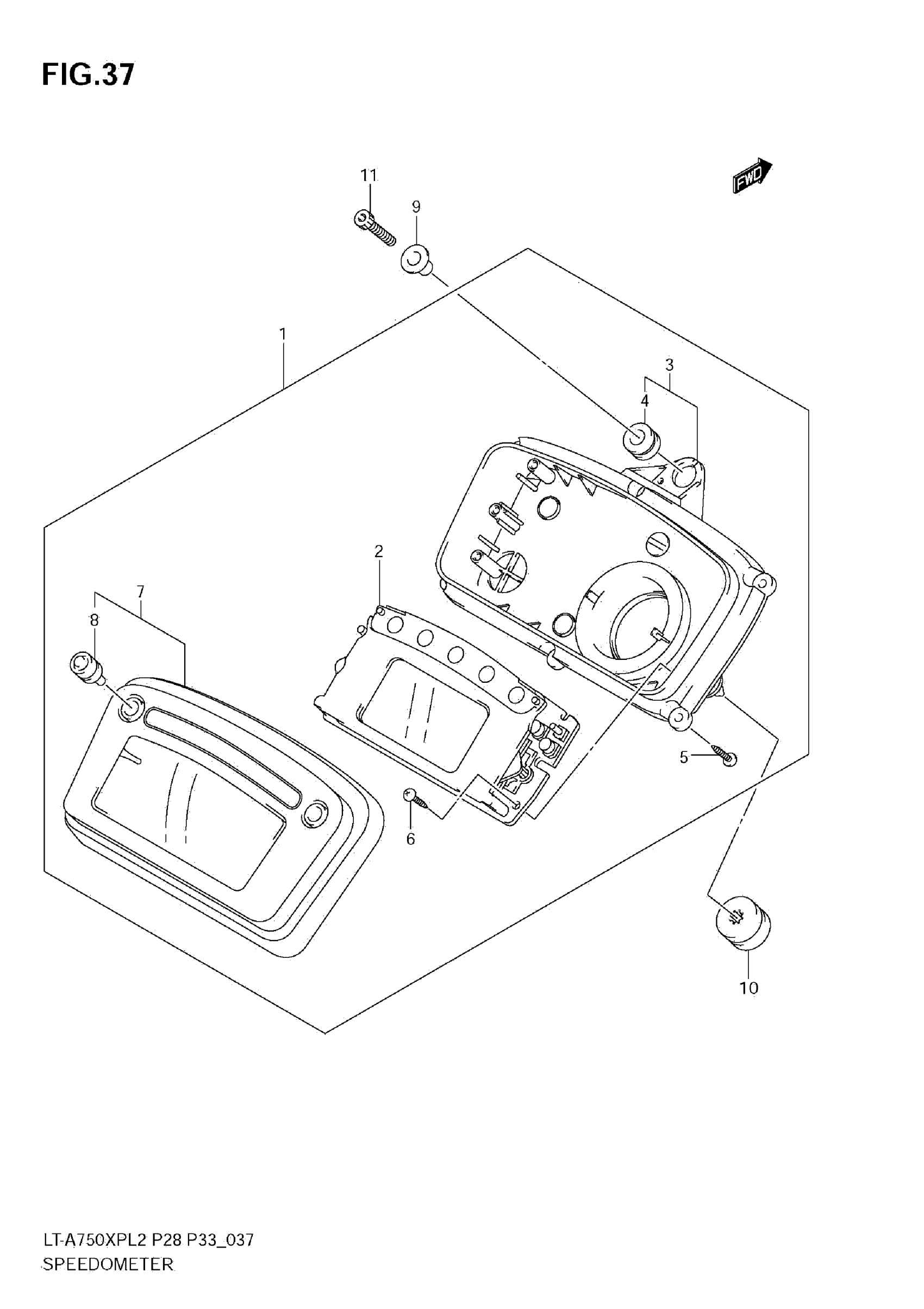

Find the part on the Speedometer diagram for your 2012 Suzuki LT-A750XPL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A750XPL2 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

34100-31GD0

1
Out of stock

2

SPEEDOMETER

34120-31GD0

1
Out of stock

3

LOWER CASE ASSY

34111-31GE0

1
Out of stock

4

CUSHION, METER

34955-03GE0

1
Out of stock

5

SCREW (3X14)

34149-03G00

6
Out of stock

6

SCREW, PAN HEAD (3X14)

34149-31F10

4
Out of stock

7

UPPER CASE ASSY

34150-31GE0

1
Out of stock

8

SWITCH, LEVER

34124-03GE0

2
Out of stock

9

SPACER, SPEEDOMETER

34187-47F00

1
Out of stock

10

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

2
Out of stock

11

BOLT

07130-0520B

1
Out of stock
