2012 Suzuki LT-A750XPL2 Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2012 Suzuki LT-A750XPL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

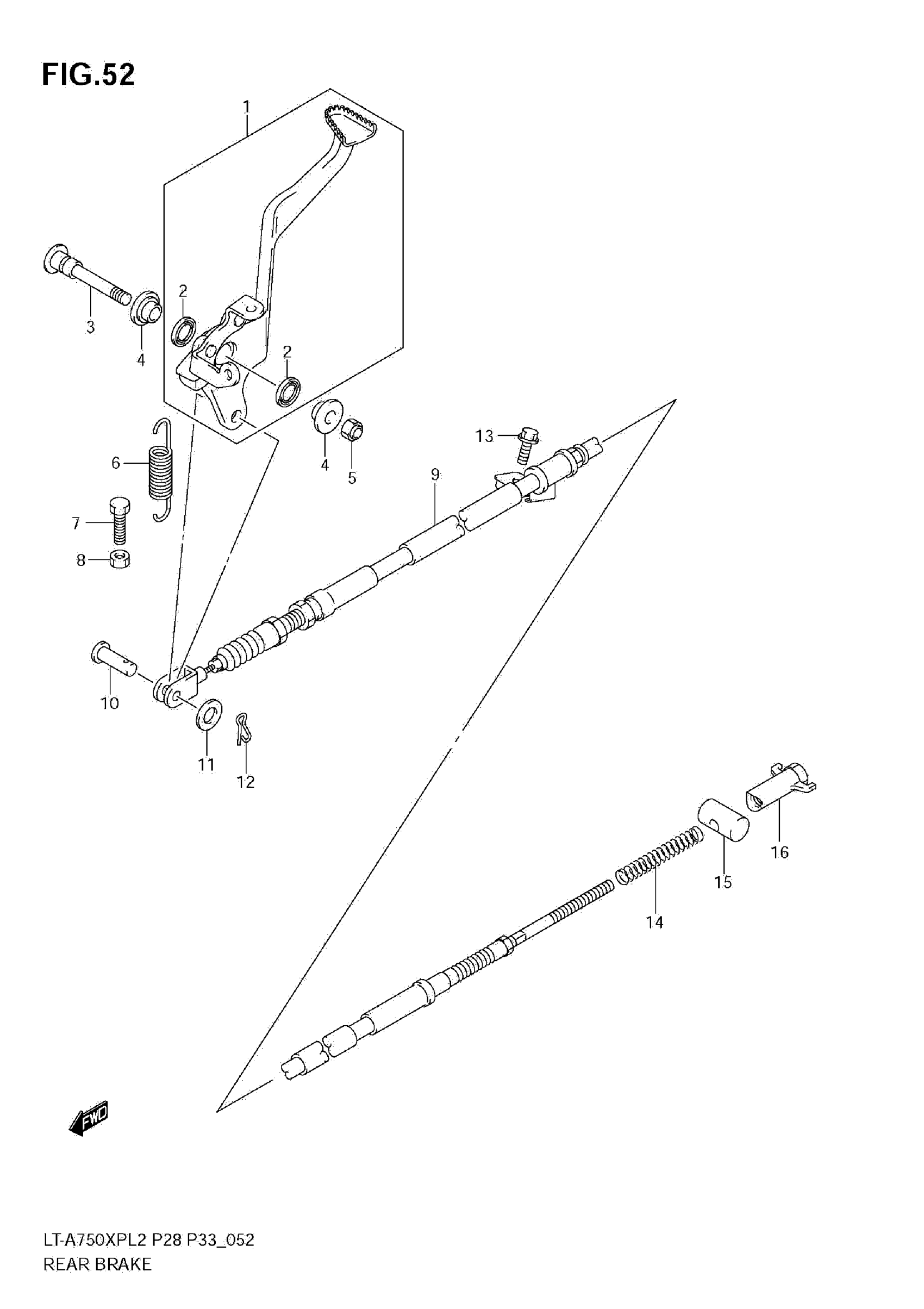

2012 Suzuki LT-A750XPL2 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

43100-31GB0

1
Out of stock

2

OIL SEAL (15X21X3)

09284-15006

2
Out of stock

3

SHAFT, BRAKE PEDAL

43142-31GB0

1
Out of stock

4

WASHER

43212-31GB0

2
Out of stock

5

NUT

09159-10115

1
Out of stock

6

SPRING

09443-11036

1
Out of stock

7

BOLT

01500-0620A

1
Out of stock

8

NUT

08310-0006A

1
Out of stock

9

CABLE, REAR BRAKE

58510-31G00

1
Out of stock

10

PIN

09200-05001

1
Out of stock

11

WASHER

08322-0106B

1
Out of stock

12

CLIP

09385-06012

1
Out of stock

13

BOLT

01547-0616A

1
Out of stock

14

SPRING

09440-08042

1
Out of stock

15

PIN

09209-13006

1
Out of stock

16

NUT

09150-06015

1
Out of stock
