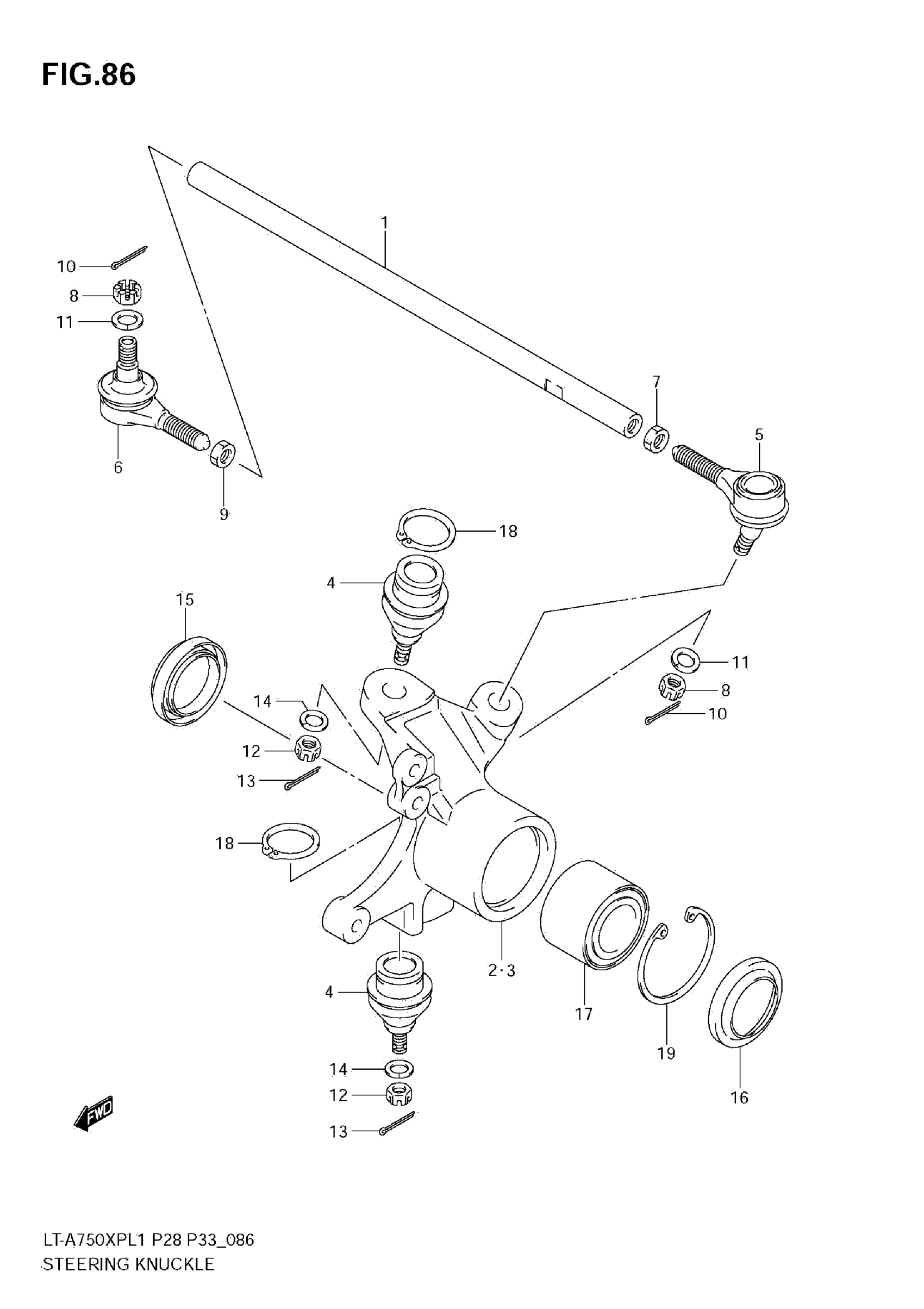

Suzuki LT-A750XPL1 (2011) STEERING KNUCKLE Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-31G40

$108.95

2

KNUCKLE, STEERING RH

51231-31G20

$390.70

3

KNUCKLE, STEERING LH

51241-31G20

$405.58

4

END, KNUCKLE STEERING

51210-31G10

$60.19

5

ROD, END RH

51260-45G00

$52.83

6

ROD, END LH

51270-45G00

$54.34

7

NUT, TIE ROD (RH THREAD)

51283-09F00

$4.63

8

NUT

08314-4010B

$2.50

9

NUT

09140-12035

$2.80

10

COTTER PIN

04111-2020A

$1.22

11

WASHER (10.5X19X2)

09160-10082

$1.62

12

NUT

08314-4010B

$2.50

13

COTTER PIN

04111-2020A

$1.22

14

WASHER (10.5X19X2)

09160-10082

$1.62

15

OIL SEAL (38X55X8) | INNER

09283-38012

$13.30

16

OIL SEAL (38X55X6) | OUTER

09285-38002

$12.53

17

BEARING This part replaces 51259-31G00.

51259-31G10

$93.53

18

CIRCLIP This part replaces 08331-3130A.

08331-31309

$2.59

19

CLIP This part replaces 08331-4155A.

08331-41559

$3.38
