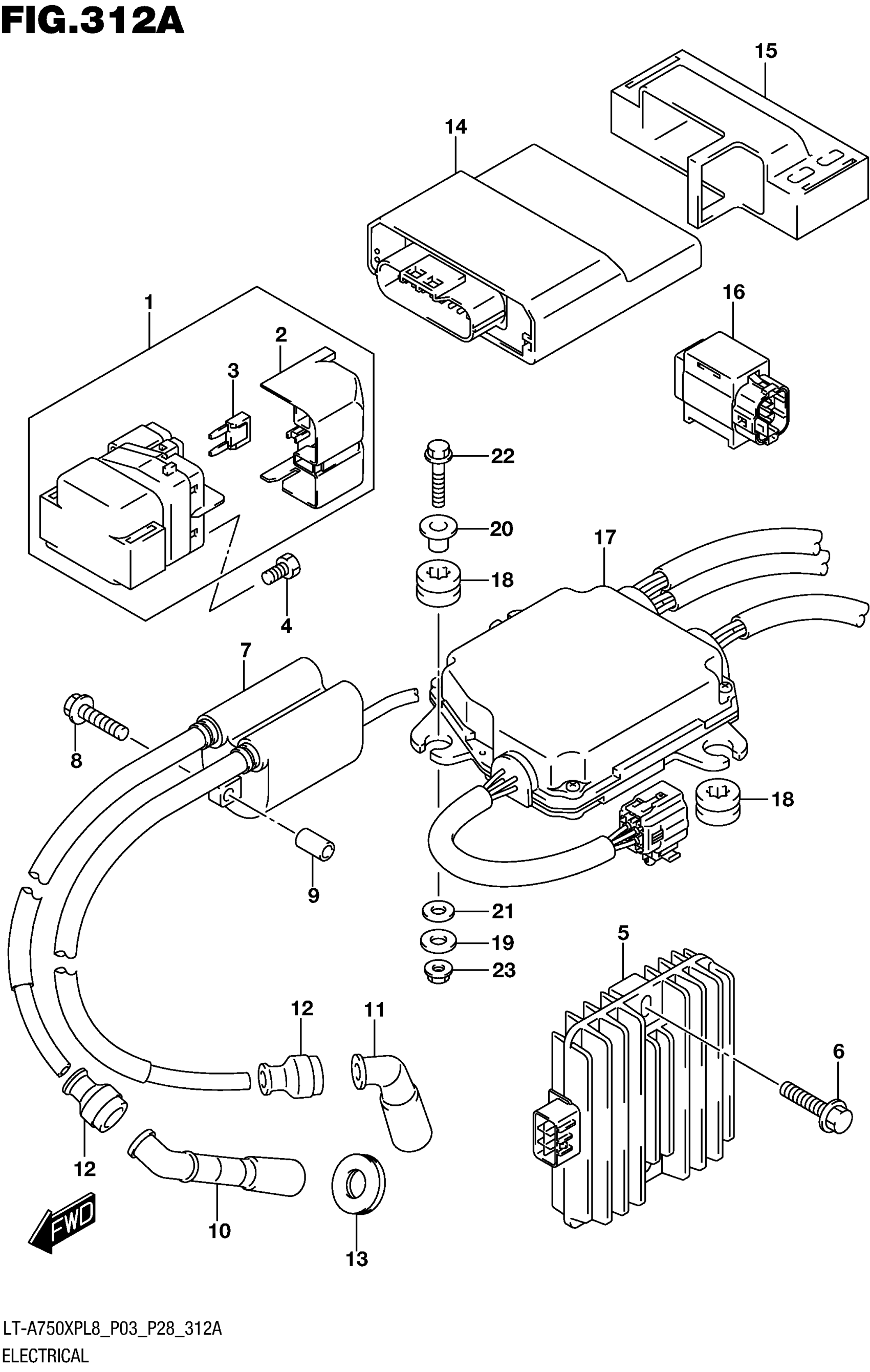

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$84.76

2

.COVER

31861-38G00

$5.52

3

.FUSE (30A)

09481-30501

$2.34

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-42F10

$218.51

6

BOLT

01550-0620A

$1.97

7

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$100.34

8

BOLT

01547-0640A

$2.31

9

SPACER (6.4X10X18)

09180-06195

$4.70

10

CAP ASSY,SPARK PLUG

33510-31G00

$36.80

11

CAP ASSY,SPARK PLUG

33510-31G10

$30.16

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

13

COVER,SPARK PLUG CAP

33543-33E01

$4.16

14

CONTROL UNIT,FI This part replaces 32920-31GE0.

32920-31GE1

$749.66

15

HOLDER, FI CONTROL UNIT

32980-31GA0

$48.30

16

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

17

CONTROL UNIT,EP This part replaces 32910-31G00.

32910-31G01

$1,267.58

18

CUSHION, EPS

32912-31G00

Unavailable

19

WASHER (6.5X15X1.0)

09160-06094

$1.43

20

WASHER

09169-06075

$4.00

21

WASHER

09169-06076

$2.88

22

BOLT

01550-0630A

$2.31

23

NUT

08316-1006A

$2.19
