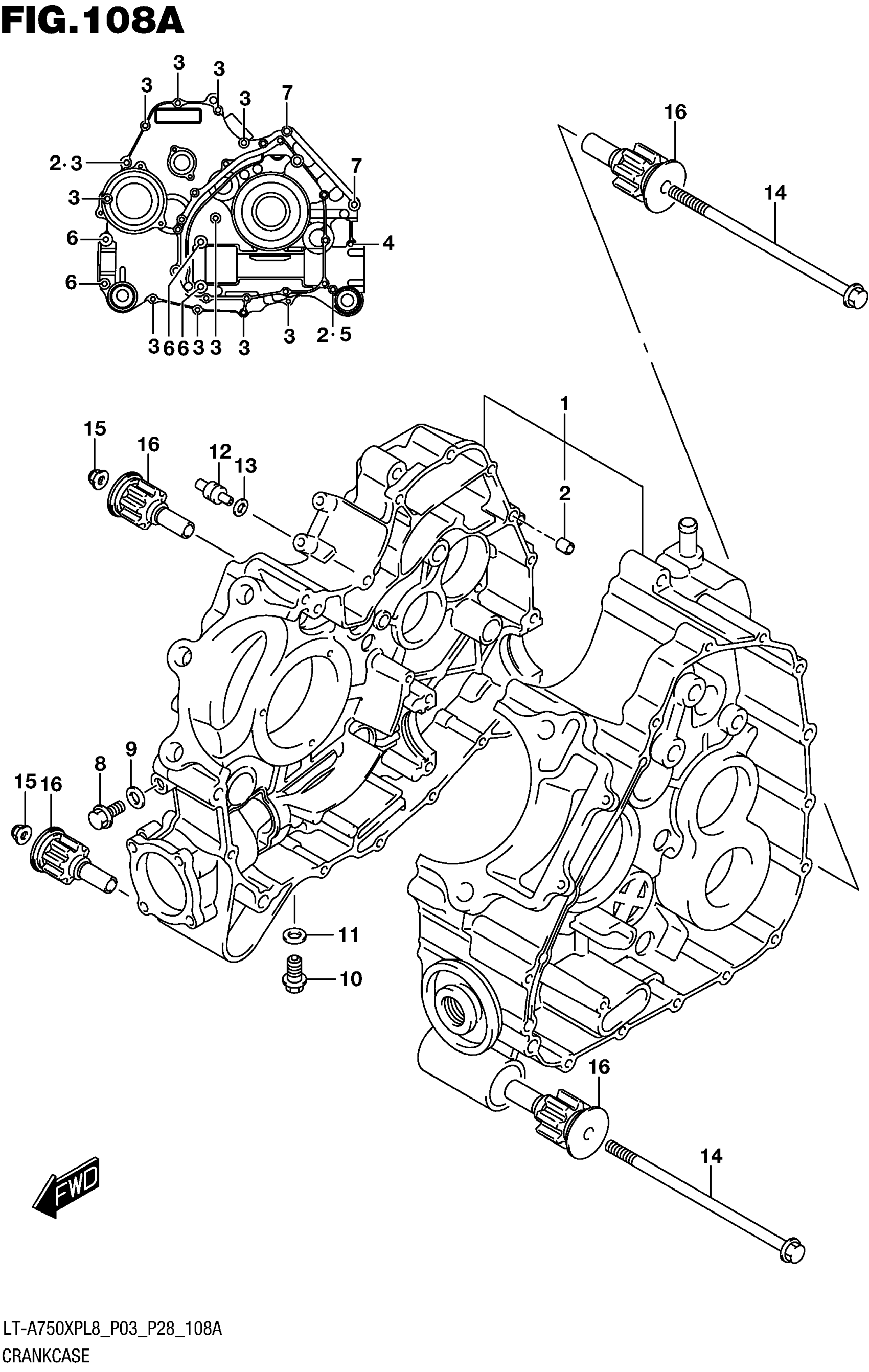

Suzuki LT-A750XP (AXI, RED/GREEN) (2018) CRANKCASE Diagram

Description

Price

CRANKCASE SET

11300-31811

$2,437.05

.PIN

04211-11169

$1.77

BOLT

01547-0650A

$2.51

.BOLT

01547-0680A

$3.58

.BOLT

01547-0690A

$2.95

.BOLT

01550-0850A

$3.98

BOLT

01550-0875A

$3.25

BOLT (8X12)

01550-0812A

$2.31

GASKET (8.2X14X1)

09168-08016

$1.64

PLUG, DRAIN | OIL DRAIN This part replaces 09247-12102.

09247-12104

$2.73

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

JET,T/M OIL GALLERY

09493-20014

$18.33

O RING (D:1.2,ID:4)

09280-04004

$1.76

BOLT (10X195)

09103-10118

$11.91

NUT

09159-10115

$3.21

BUSH, ENG MTG

11651-31G10

$20.67
