2009 Suzuki LT-A750XP Handle Cover Diagram

← All diagrams

Find the part on the Handle Cover diagram for your 2009 Suzuki LT-A750XP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

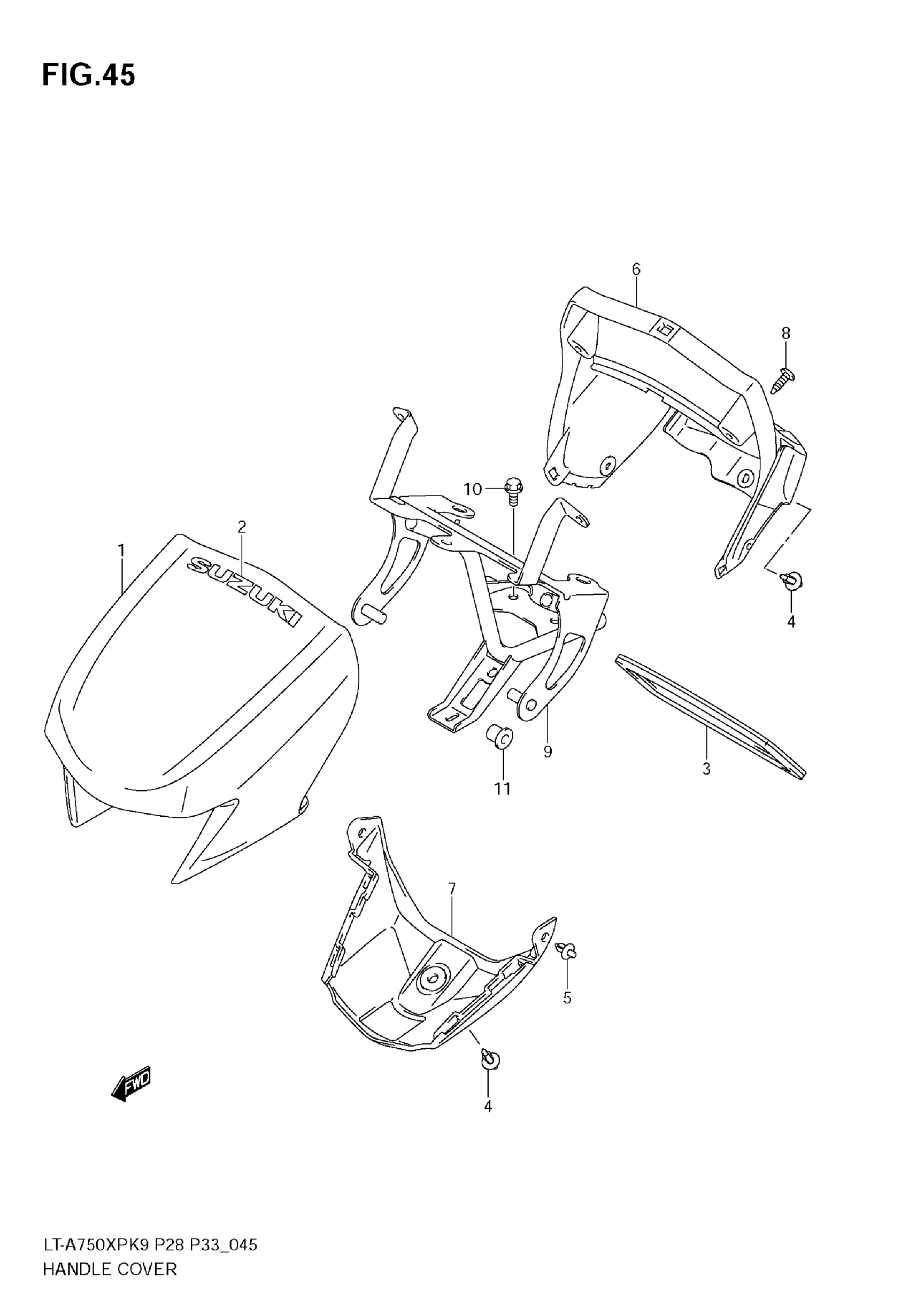

2009 Suzuki LT-A750XP Handle Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,HANDLE FR This part replaces 56311-31G00-YT9.

56311-31G04-YT9

1
Out of stock

1

COVER,FRONT HAN This part replaces 56311-31G00-YLG.

56311-31G03-YLG

1
Out of stock

1

NO DESCRIPTION AVAILABLE | E28 This part replaces 56311-31GC0-YKL.

56311-31GC1-YKL

1
Out of stock

1

COVER, FRONT (CAMOUFLAGE) This part replaces 56311-31GC0-YVA.

56311-31GC1-YVA

1
Out of stock

1

COVER,FRONT HAN This part replaces 56311-31G00-YLZ.

56311-31G03-YLZ

1
Out of stock

1

COVER,HANDLE,FR This part replaces 56311-31G00-30H.

56311-31G01-30H

1
Out of stock

1

NO DESCRIPTION AVAILABLE | LT-A750XPZ This part replaces 56311-31G10-YUW.

56311-31G11-YUW

1
Out of stock

2

EMBLEM,"SUZUKI" This part replaces 68171-31G50-YPF.

68171-31GA1-1ZZ

1
Out of stock

3

MOLDING

56317-31G00

1
Out of stock

4

CLIP (BLACK)

09409-06314-5PK

2
Out of stock

5

CLIP

09409-07333

2
Out of stock

6

COVER, HANDLE REAR (BLACK)

56321-31G01-291

1
Out of stock

7

COVER, HANDLE LOWER (BLACK)

56331-31G00-291

1
Out of stock

8

SCREW

09132-05053

2
Out of stock

9

BRACE, COVER This part replaces 56160-31G20.

56160-31G21

1
Out of stock

10

BOLT (8X12)

01550-0812A

2
Out of stock

11

CUSHION This part replaces 09320-07016.

09320-07020

2
Out of stock
