2009 Suzuki LT-A750XP Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2009 Suzuki LT-A750XP, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

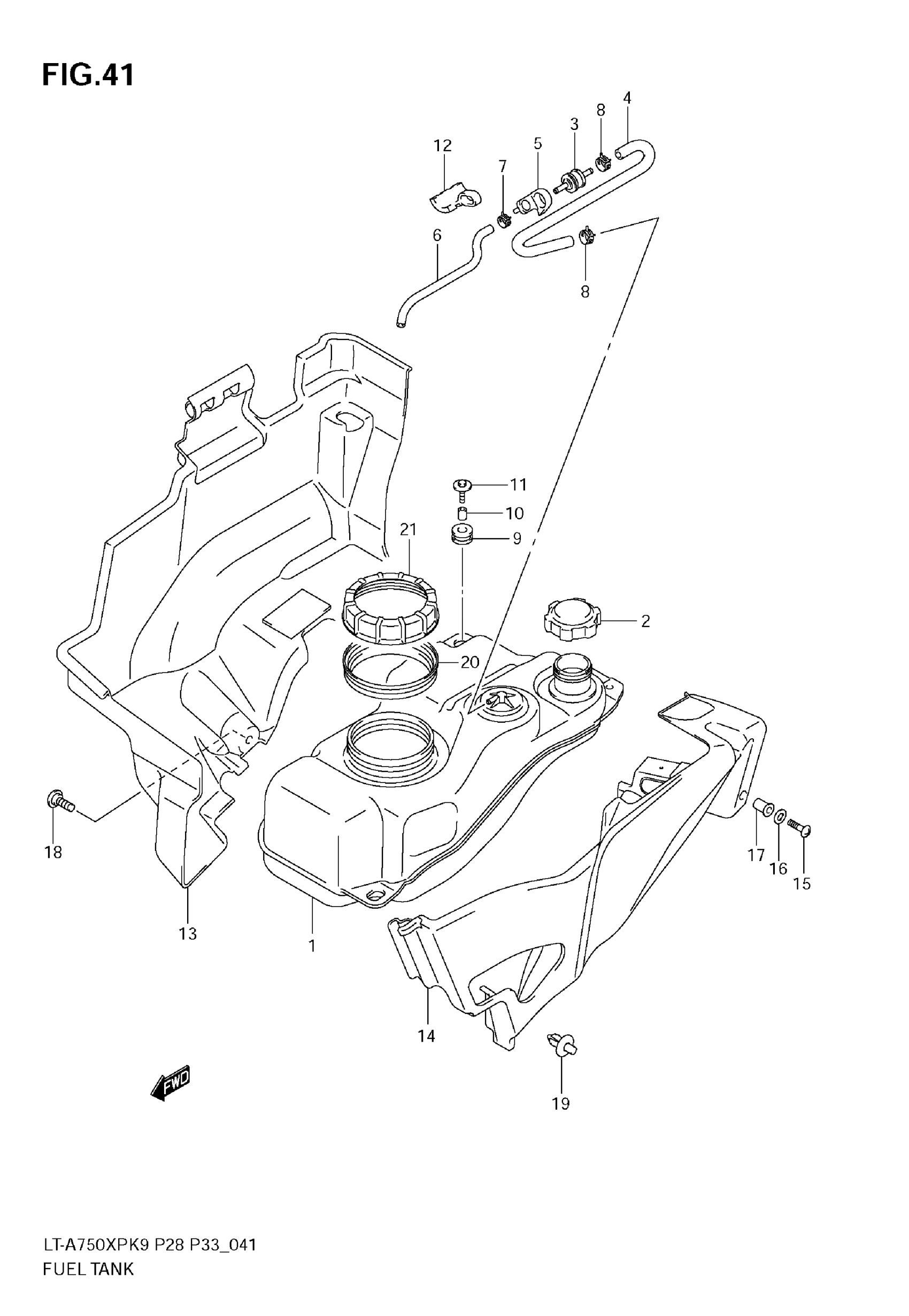

2009 Suzuki LT-A750XP Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL This part replaces 44100-31G11.

44100-31G21

1
Out of stock

2

CAP ASSY, FUEL TANK

44200-31G00

1
Out of stock

3

VALVE,2 WAY CHECK

85451-75100

1
Out of stock

4

1

$13.62

In stock

5

CUSHION, CHECK VALVE This part replaces 44881-31G00.

44881-31G01

1
Out of stock

6

1

$50.95

In stock

7

CLIP

09401-08409

1

$2.30

In stock

8

CLIP (ID:9.4,H:8)

09401-09403

2
Out of stock

9

CUSHION,REAR This part replaces 44281-03G00.

44281-03G01

3
Out of stock

10

SPACER

09180-06293

3
Out of stock

11

BOLT

09116-06050

3
Out of stock

12

CUSHION, SIDE

44541-31G00

1
Out of stock

13

1

$122.78

In stock

14

COVER, OUTER

44391-31G00

1

$114.65

In stock

15

SCREW

02142-0520B

1
Out of stock

16

WASHER

09160-05046

1
Out of stock

17

NUT

09159-05019

1
Out of stock

18

SCREW

09139-06137

1
Out of stock

19

CLIP

09409-07333

2
Out of stock

20

1

$20.42

In stock

21

RETAINER, FUEL PUMP

44597-10G00

1

$40.32

In stock
