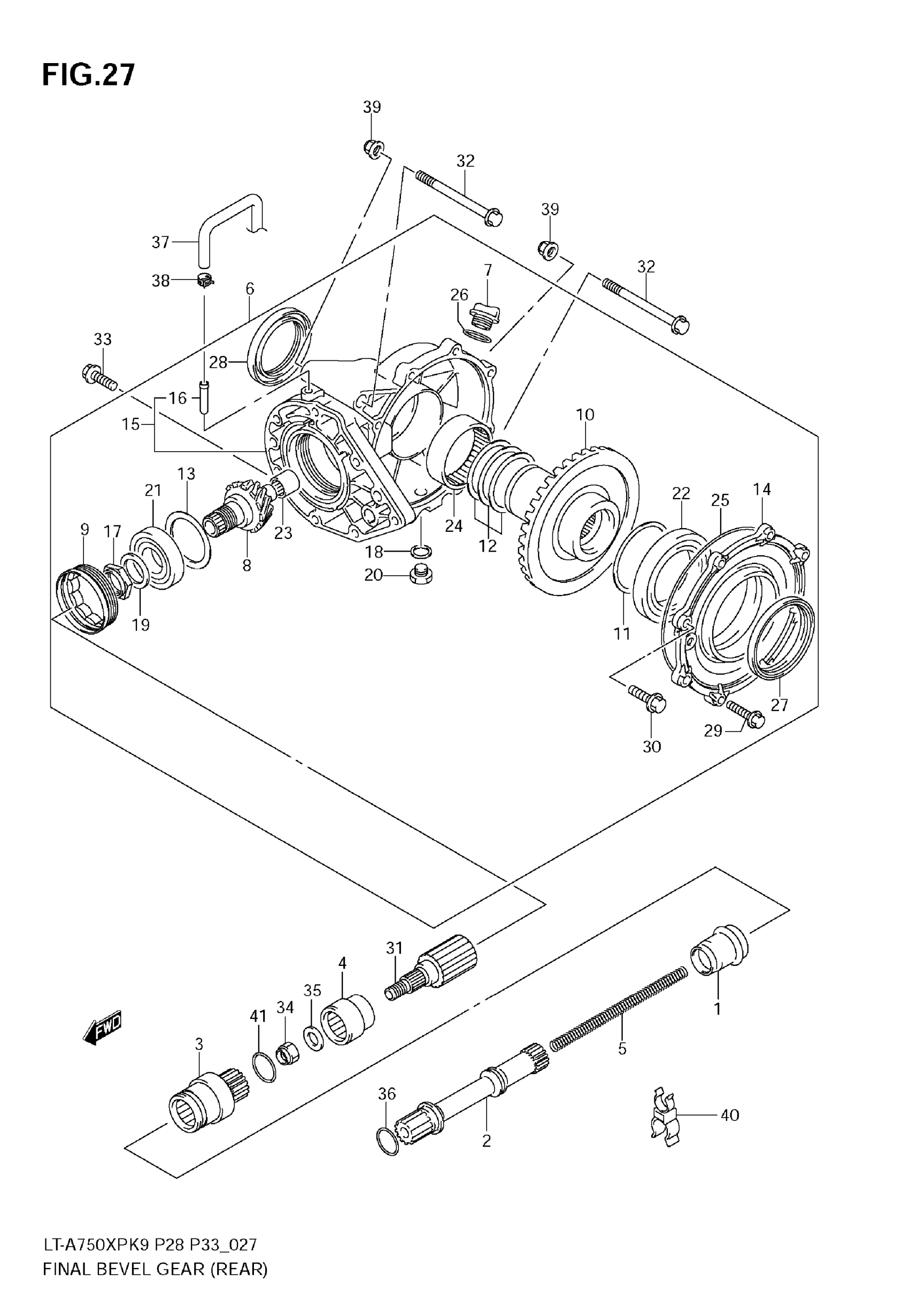

Suzuki LT-A750XP (2009) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

BOOT,JOINT SHAFT This part replaces 27153-31G40.

27153-31G42

$8.68

2

SHAFT, REAR PROPELLER This part replaces 27155-31G20.

27155-31G30

$104.60

3

JOINT, REAR PROPELLER

27157-31G60

$65.33

4

COUPLING, RR PROP SHAFT

27171-31G60

$136.02

5

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.63

6

CASE ASSY, REAR FINAL GEAR | Includes Item(s) 7 - 30

27410-31G50

$1,591.75

7

PLUG, GEAR OIL FILLER

09259-20008-XC0

$6.76

8

GEAR, RR FINAL DRIVE

27311-31G50

$326.10

9

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$59.52

10

GEAR, RR FINAL DRIVEN

27320-31G00

$357.50

11

SHIM SET, FINAL DRIVEN, L | T:0.30/0.35/0.40 0.50/0.60

27326-31810

$47.27

12

SHIM SET, FINAL DRIVEN, R | T:0.30/0.35/0.40 0.50/0.60

27327-31810

$43.95

13

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40 0.50/0.60

27445-24810

$31.82

14

CASE, REAR FINAL GEAR, L

27451-31G10

Unavailable

15

CASE, REAR FINAL GEAR, R

27460-31G10

Unavailable

16

UNION, CASE BREATHER

09364-08016

Unavailable

17

NUT, REAR FINAL DRIVE

09140-28006

$19.60

18

GASKET, OIL DRAIN | 13.8X18.8X4.8

09168-14002

$2.83

19

WASHER, RR FINAL DR GR | 28X38X1.0

09181-28195

$5.17

20

PLUG, OIL DRAIN

09247-14013

$2.28

21

BEARING, FINAL DRIVE | 28X68X18

09262-28023

$138.97

22

BEARING, FINAL DRIVEN, L | 65X100X11.0

09262-65001

$152.45

23

BEARING (20X34X18) | 20X34X18

09263-20062

$51.07

24

BEARING, FINAL DRIVEN, R | 55X67X20

09263-55003

$117.50

25

O-RING, BEARING CASE, L | D:2.4,ID:61

09280-00029

$40.00

26

O-RING, GEAR OIL FILLER | D:3.1,ID:16.8

09280-17003

$1.64

27

SEAL, FINAL DRIVEN GEAR, L | 59X88X8

09283-59001

$24.19

28

SEAL, FINAL DRIVEN GEAR, R | 59X88X8

09283-59001

$24.19

29

BOLT (8X35) | 8X35

09103-08357

$4.53

30

BOLT, RR FINAL GEAR CASE | 10X45

09103-10294

Unavailable

31

SHAFT, RR FINAL DRIVE GEAR This part replaces 27594-31G60.

27594-31G80

$217.12

32

BOLT, REAR FINAL GEAR | 10X110

09103-10148

$6.26

33

BOLT, REAR FINAL GEAR | 10X30

09103-10405

$4.32

34

NUT, RR PROP SHAFT COUPLER

09159-16003

$4.33

35

WASHER, REAR PROP SHAFT | 16X30X3.0

09160-16026

$5.43

36

.O-RING (D:3.1,ID:19.4) | D:3.1,ID:19.4

09280-20002

$1.91

37

HOSE, BREATHER

27491-31G00

$48.82

38

CLAMP, BREATHER CASE

09401-10403

$1.67

39

NUT, REAR FINAL GEAR

09159-10115

$3.21

40

CLAMP, BREATHER HOSE

09408-00235

$3.05

41

O RING (D:3.1,ID:34.4)

09280-35008

$2.85
