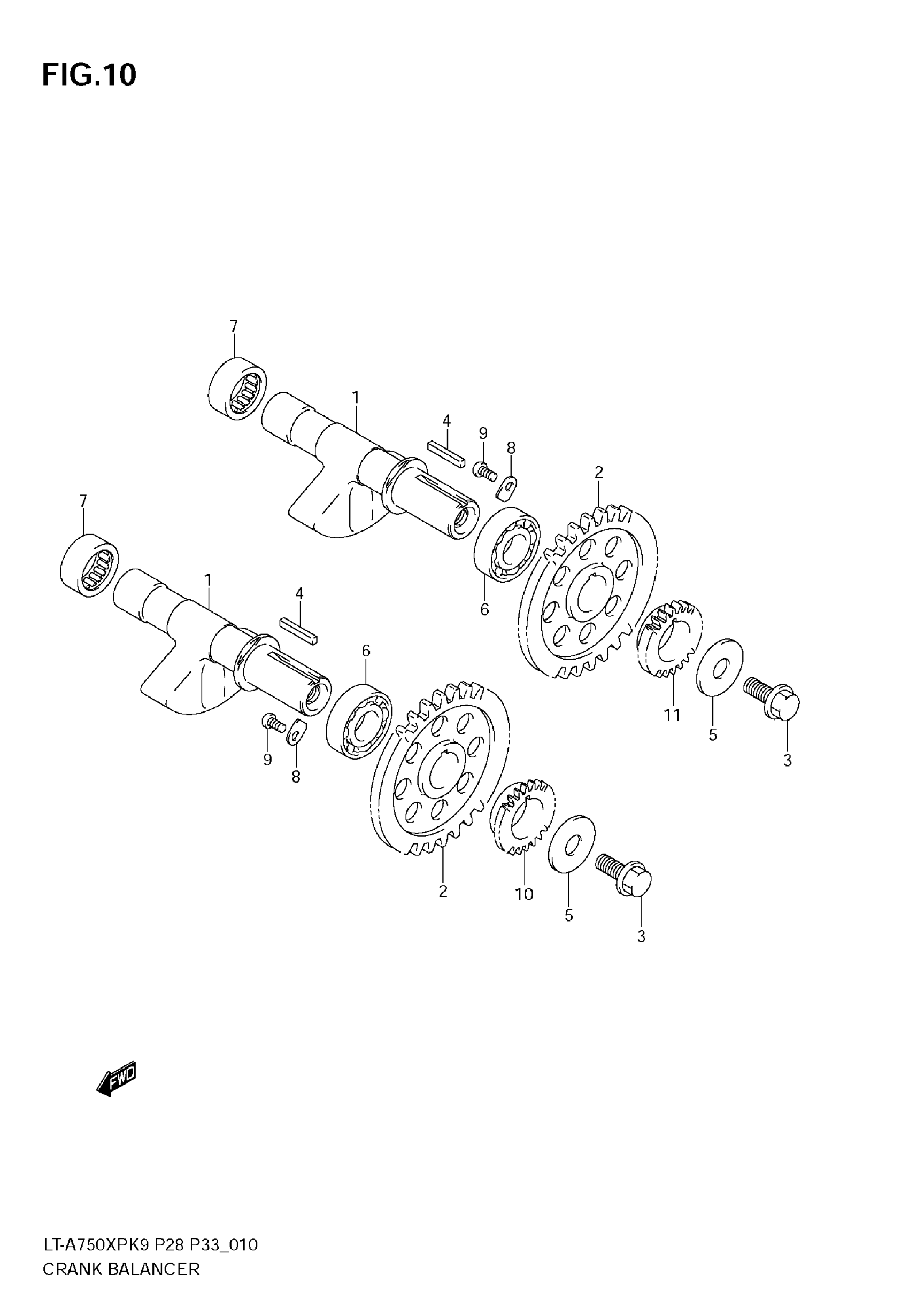

Suzuki LT-A750XP (2009) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER,CRANK

12651-31G02

Unavailable

2

GEAR, CRANK BALANCER DRIVEN

12666-31G11

$183.72

3

BOLT, 10X20

09103-10290

$4.47

4

KEY

09421-04005

$3.42

5

WASHER

08211-10305

$4.62

6

BEARING, 20X42X12

09262-20137

$42.32

7

BEARING, 20X28X16

09263-20091

$45.68

8

RETAINER, CRANK GAL BRG

24741-21A00

$2.80

9

BOLT, 6X12

09125-06110

$2.13

10

SPROCKET, OIL PUMP DRIVE

16321-31G00

$58.95

11

GEAR, WATER PUMP DRIVE

17451-31G00

Unavailable
