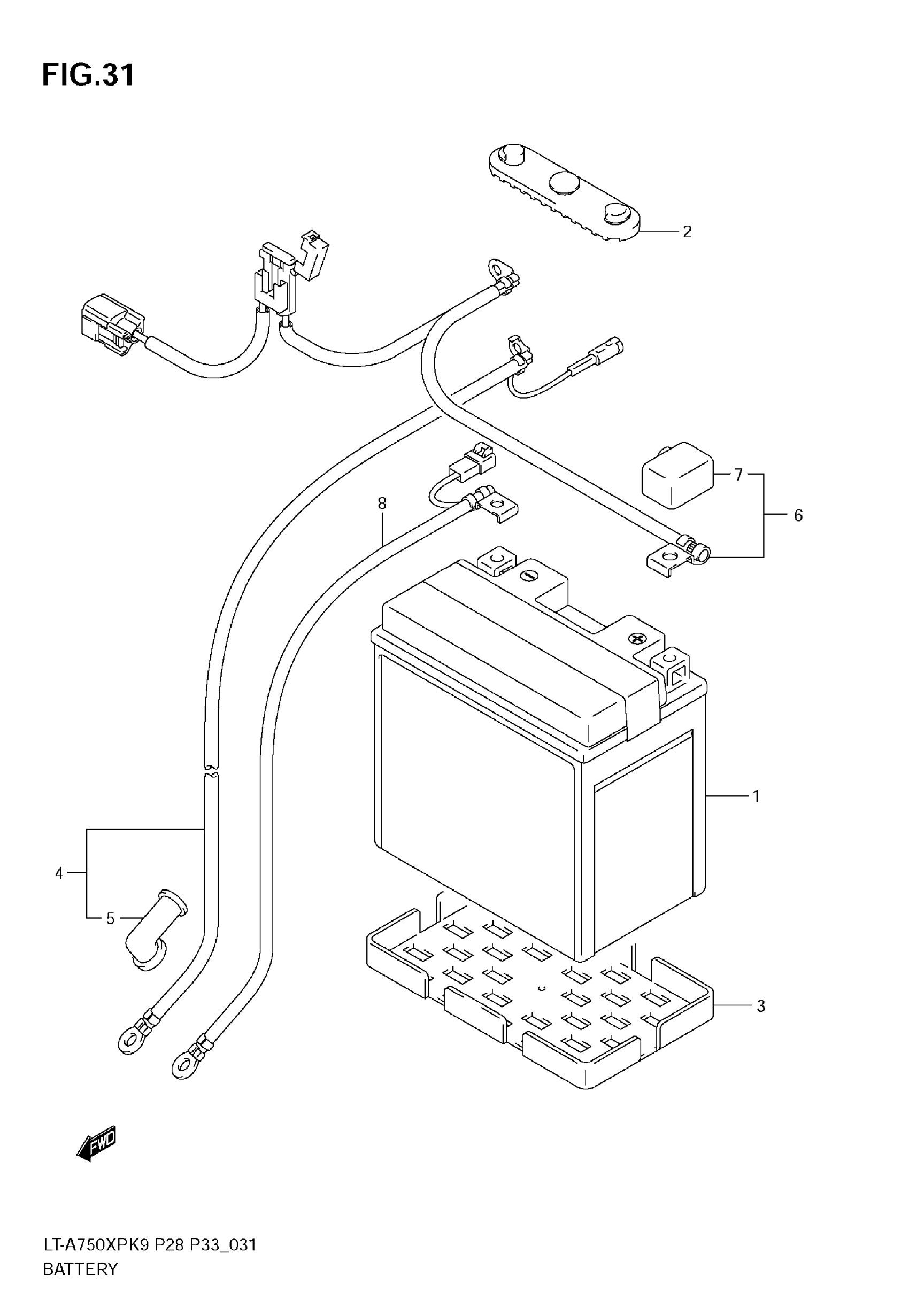

Suzuki LT-A750XP (2009) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY | YTX20CH-BS,12V18AH

33610-03G10

$127.74

2

PROTECTOR, BATTERY

33652-07G00

$3.81

3

PROTECTOR,BATTERY

33652-16G00

$13.50

4

WIRE, STARTER MOTOR | Includes Item(s) 5 This part replaces 33810-31G10.

33810-31G12

$86.70

5

CAP, STARTER MOTOR LEAD

33624-18H10

$11.18

6

WIRE, BATTERY PLUS | Includes Item(s) 7

33820-31G10

$82.47

7

CAP, BATTERY PLUS TERM

33624-10D00

$7.12

8

WIRE, BATTERY MINUS

33860-31G10

$32.73
