2023 Suzuki LT-A750XM3 Mudguard Diagram

← All diagrams

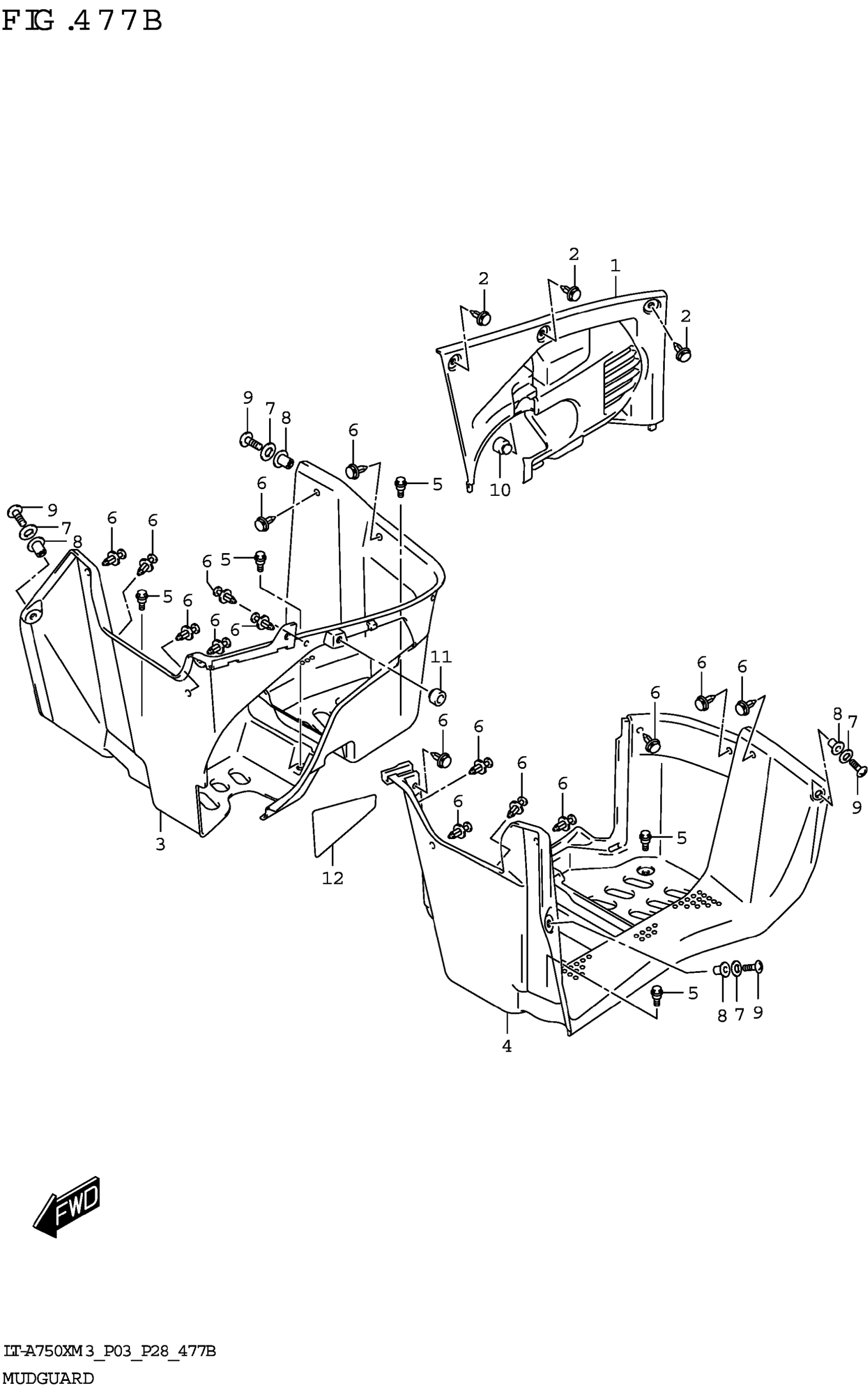

Find the part on the Mudguard diagram for your 2023 Suzuki LT-A750XM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki LT-A750XM3 Mudguard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID,FOOTREST GU This part replaces 63342-34K00.

63342-34K01-291

1
Out of stock

2

CLIP

09409-08008

3
Out of stock

3

MUDGUARD,FOOTRE This part replaces 63331-34K02.

63331-34K02-291

1
Out of stock

4

MUDGUARD,FOOTRE This part replaces 63341-34K02.

63341-34K02-291

1
Out of stock

5

BOLT, CARRIER COVER

46386-34K00

5
Out of stock

6

CLIP

09409-08008

16
Out of stock

7

WASHER (5.5X20X1.4)

09160-05046

4
Out of stock

8

NUT (M5)

09159-05019

4
Out of stock

9

SCREW

02142-0520B

4
Out of stock

10

CUSHION

09321-10019

1
Out of stock

11

CUSHION

09321-10019

1
Out of stock

12

SHIELD, SIDE COVER NO.1

63268-34K00

1
Out of stock
