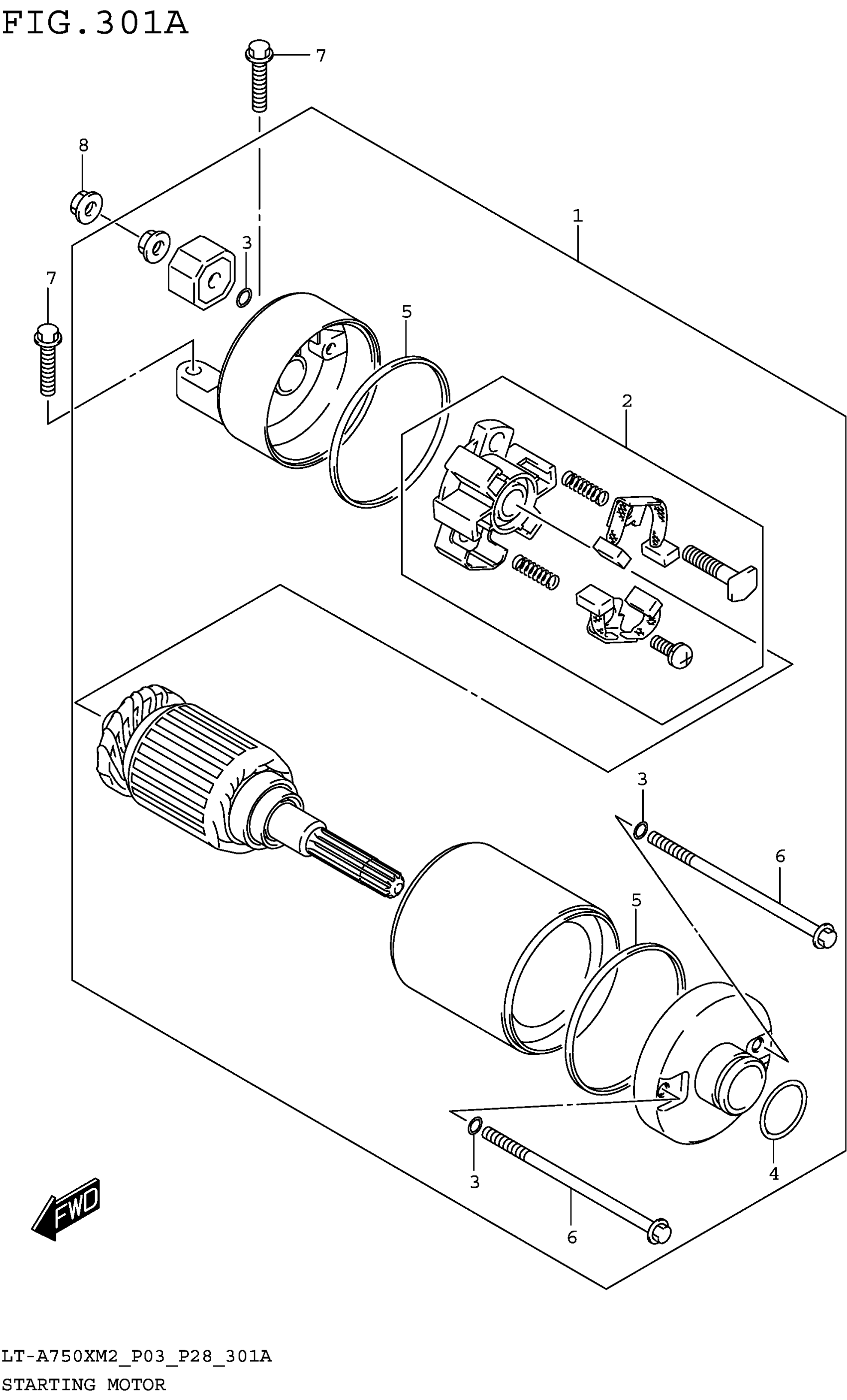

Suzuki LT-A750XM2 (2022) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-31G11

$586.47

2

.BRUSH HOLDER SET

31132-18H00

$81.27

3

.O-RING

31143-49040

$3.50

4

.O-RING (D:3.1,ID:24.4)

31156-98E00

$3.66

5

O RING This part replaces 31264-31300.

31264-32E00

$6.29

6

.BOLT

31280-18H00

Unavailable

7

BOLT

01547-0625A

$2.01

8

NUT

08361-3506A

$1.81
