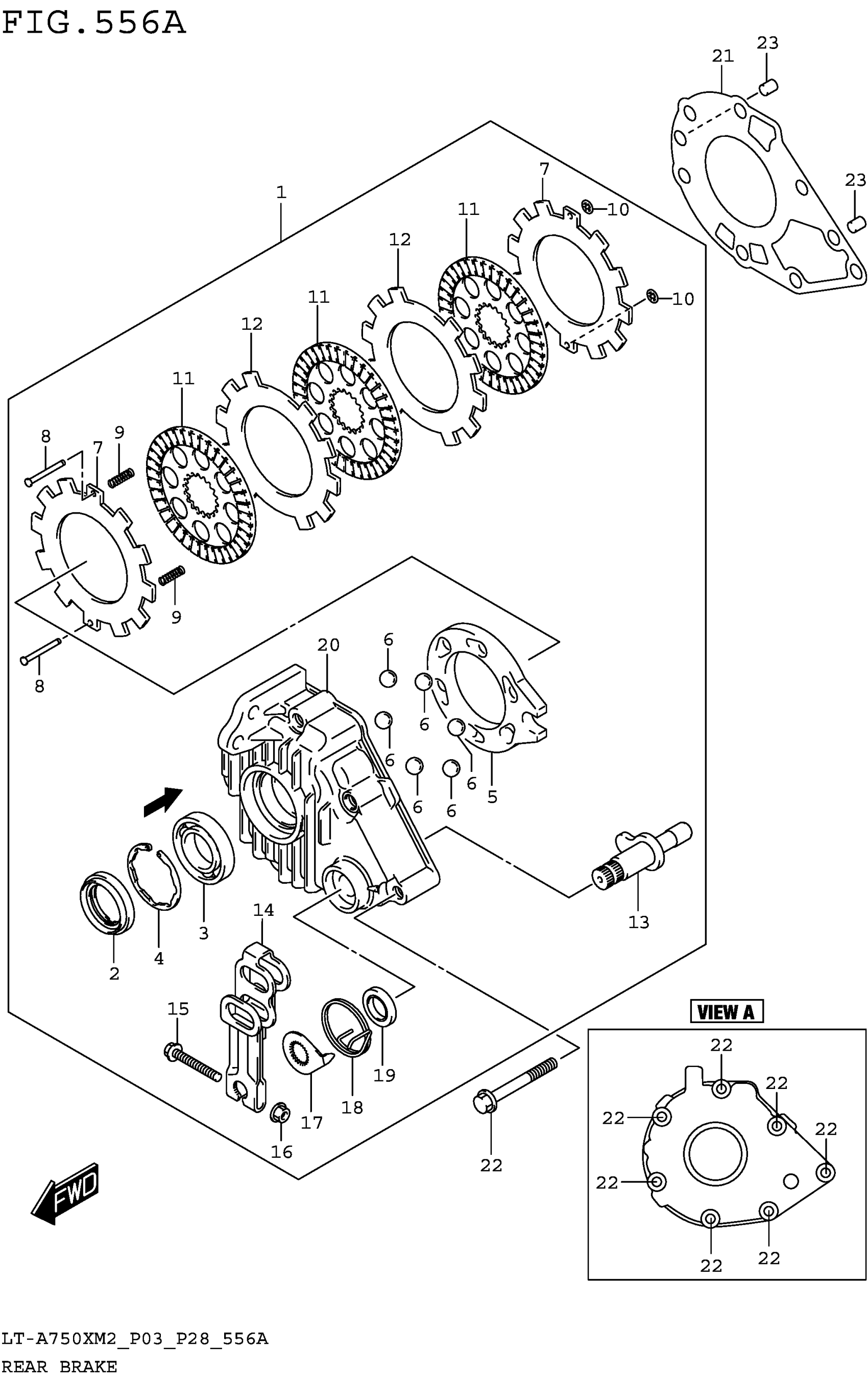

Suzuki LT-A750XM2 (2022) REAR BRAKE Diagram

#

Description
Price

1

BRAKE ASSY, REAR

64200-31G11

$980.87

2

OIL SEAL (34X52X9)

09283-34008

$18.71

3

.BEARING

08113-60050

$25.70

4

.CIRCLIP, RR BRAKE CASE

64215-31G00

$10.08

5

.PLATE, PRESSURE

64292-31G00

Unavailable

6

.BALL

64295-31G00

$12.35

7

.PLATE, SIDE

64293-31G00

$34.98

8

.PIN, SIDE PLATE

64297-31G00

$5.54

9

.SPRING, SIDE PLATE

64296-31G00

$7.17

10

.NUT, SIDE PLATE

64298-31G00

$5.65

11

.PLATE, FRICTION

64420-31G00

$86.55

12

.PLATE, SEPARATOR

64294-31G00

$32.85

13

.CAM, REAR BRAKE

64440-31G01

Unavailable

14

.LEVER, RR BRAKE CAM

64451-31G00

Unavailable

15

.BOLT, RR BRAKE CAM LEVER

64455-31G00

Unavailable

16

.NUT, RR BRAKE CAM LEVER

64456-31G00

Unavailable

17

.PLATE, BRAKE LINING INDICATO

64492-31G00

Unavailable

18

.SPRING, RR BRAKE CAM LEVER

64484-31G00

$16.67

19

.SEAL, RR BRAKE CAM

64443-31G01

$32.85

20

.CASE, RR BRAKE

64290-31G01

$313.88

21

GASKET, RR BRAKE CASE

64124-31G00

$19.55

22

BOLT (8X53)

09103-08332

$5.00

23

PIN (9X10)

09261-09002

$3.80
