2016 Suzuki LT-A750XL6 Front Wheel Diagram

← All diagrams

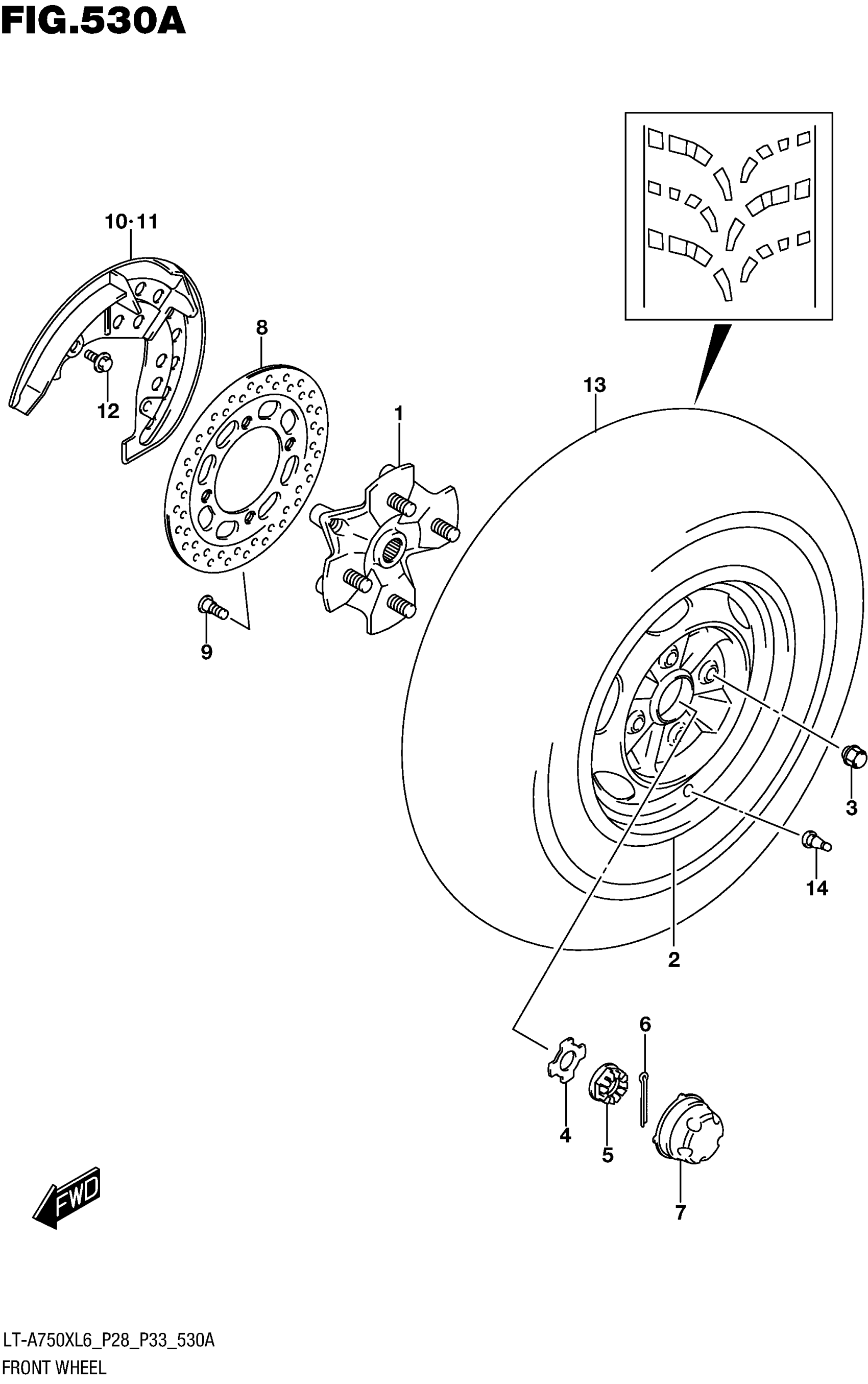

Find the part on the Front Wheel diagram for your 2016 Suzuki LT-A750XL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-A750XL6 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB,FRONT WHEEL This part replaces 54110-31G00.

54110-31G10

2
Out of stock

2

RIM, FRONT WHEEL (12X6.0AT)

55310-31G50-291

2
Out of stock

2

(BLACK)

55310-31G50-291

1
Out of stock

3

NUT

09159-10114

8
Out of stock

4

WASHER, HUB

64723-09F00

2
Out of stock

5

NUT

09141-18010

2
Out of stock

6

COTTER PIN

04111-4035A

2
Out of stock

7

CAP,WHEEL CENTER

54725-09F01

2
Out of stock

8

DISC, FRONT BRAKE

59211-31G10

2
Out of stock

9

BOLT (8X21)

09106-08160

8
Out of stock

10

COVER, FRONT DISC RH This part replaces 59231-31G10.

59231-31G11

1
Out of stock

11

COVER, FRONT DISC LH This part replaces 59431-31G10.

59431-31G11

1
Out of stock

12

BOLT (6X12)

09111-06085

4
Out of stock

13

TIRE,FRONT (AT25X8-12) | AT489 CARLISLE

55110-31G30

2
Out of stock

14

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

2
Out of stock
