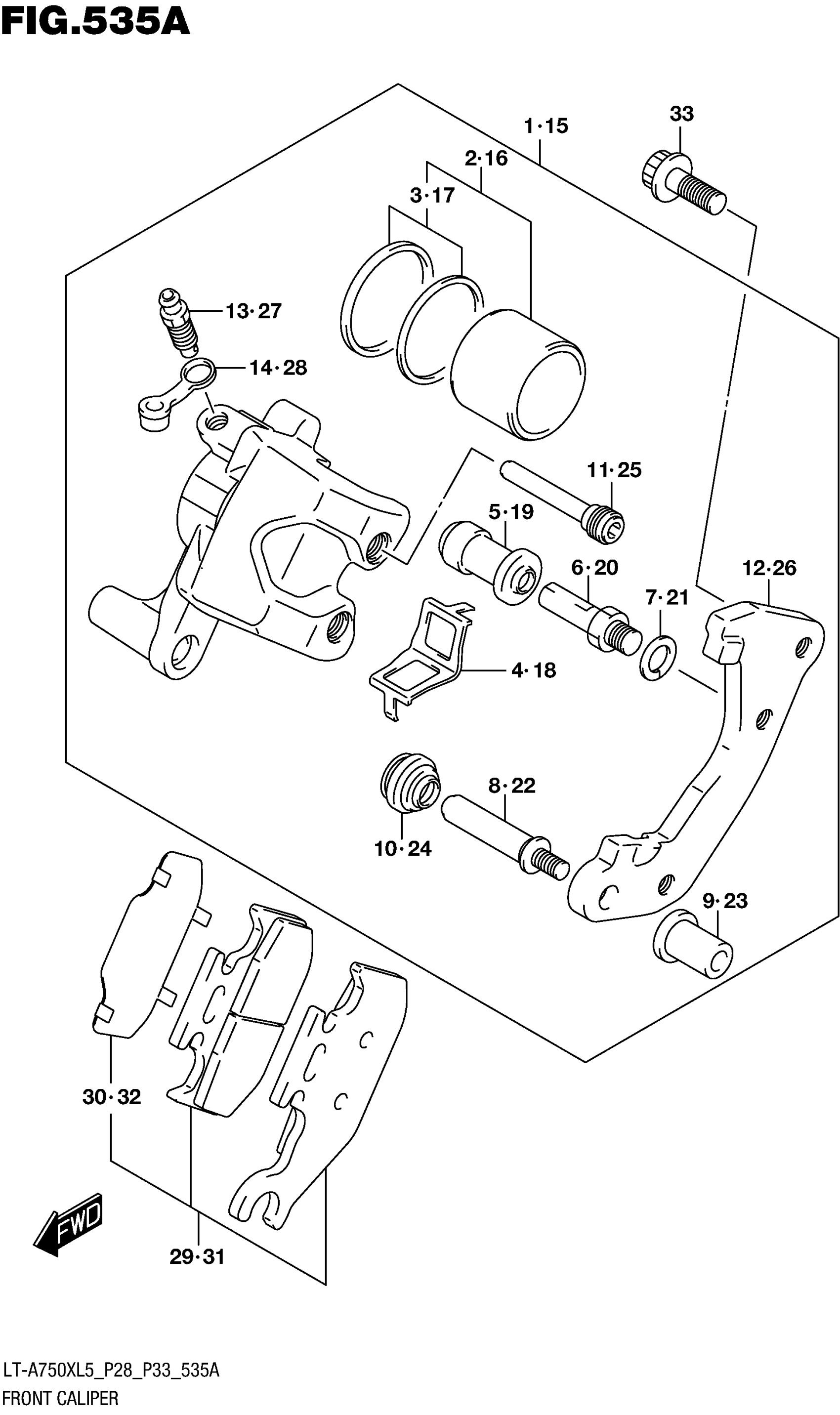

Suzuki LT-A750XL5 (2015) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-31G00-999

$363.38

2

PISTON SET

59300-13810

$42.57

3

..SEAL SET,PISTON

69100-13820

$8.02

4

SPRING, PAD

59315-27C00

$15.83

5

BOOT

59386-13A00

$7.28

6

PIN

59382-13A00

$7.24

7

WASHER

59314-13A00

$2.28

8

PIN

59387-00B20

$17.46

9

NUT

59388-00B20

$20.13

10

BOOT

59303-14500

$5.06

11

.PIN,HANGER

59145-39D00

$24.33

12

BRACKET, RH

59151-31G00

$60.38

13

BLEEDER

59121-01A00

$7.99

14

CAP

59122-01A00

$3.97

15

CALIPER ASSY,FRONT,L

59300-31G01-999

$363.38

16

PISTON SET

59300-13810

$42.57

17

..SEAL SET,PISTON

69100-13820

$8.02

18

SPRING, PAD

59315-27C00

$15.83

19

BOOT

59386-13A00

$7.28

20

PIN

59382-13A00

$7.24

21

WASHER

59314-13A00

$2.28

22

PIN

59387-00B20

$17.46

23

NUT

59388-00B20

$20.13

24

BOOT

59303-14500

$5.06

25

.PIN,HANGER

59145-39D00

$24.33

26

BRACKET, LH

59351-31G00

$60.38

27

BLEEDER

59121-01A00

$7.99

28

CAP

59122-01A00

$3.97

29

PAD & SHIM SET RH

59100-31850

$137.87

30

SHIM

69132-28C00

$10.68

31

PAD & SHIM SET LH

59100-31860

$137.87

32

SHIM

69132-28C00

$10.68

33

BOLT (8X20)

09106-08176

$4.42
