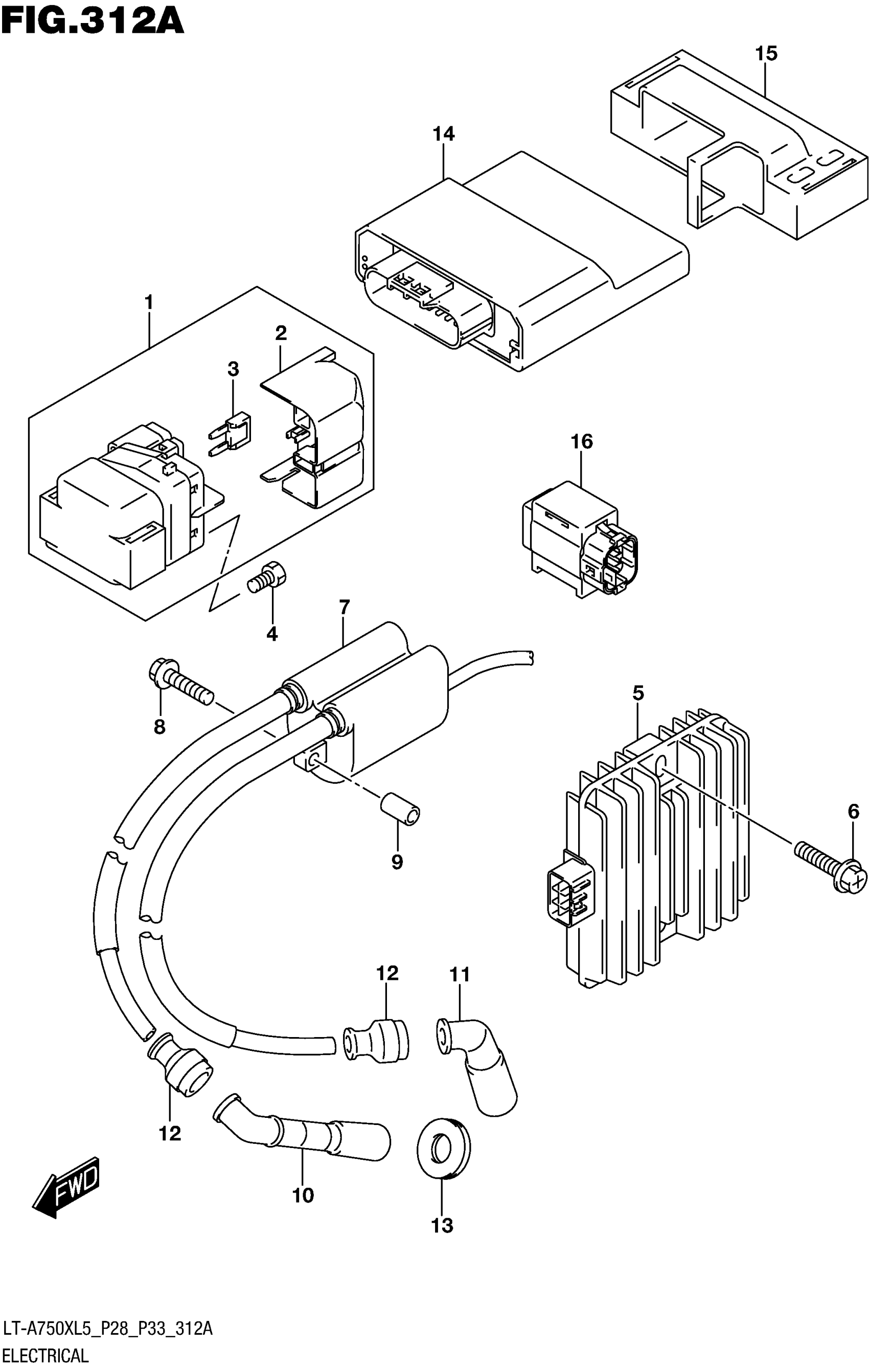

Suzuki LT-A750XL5 (2015) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$84.76

2

COVER

31861-38G00

$5.52

3

FUSE (30A)

09481-30501

$2.34

4

SCREW (6X8)

09128-06013

$1.24

5

RECTIFIER ASSY

32800-42F10

$218.51

6

BOLT

01550-0620A

$1.97

7

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$100.34

8

BOLT

01547-0640A

$2.31

9

SPACER (6.4X10X18)

09180-06195

$4.70

10

CAP ASSY,SPARK PLUG

33510-31G00

$36.80

11

CAP ASSY,SPARK PLUG

33510-31G10

$30.16

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

13

COVER,SPARK PLUG CAP

33543-33E01

$4.16

14

CONTROL UNIT,FI This part replaces 32920-31GB1.

32920-31GB3

$788.17

15

HOLDER, FI CONTROL UNIT

32980-31GA0

$48.30

16

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31
