2013 Suzuki LT-A750XL3 Mudguard Diagram

← All diagrams

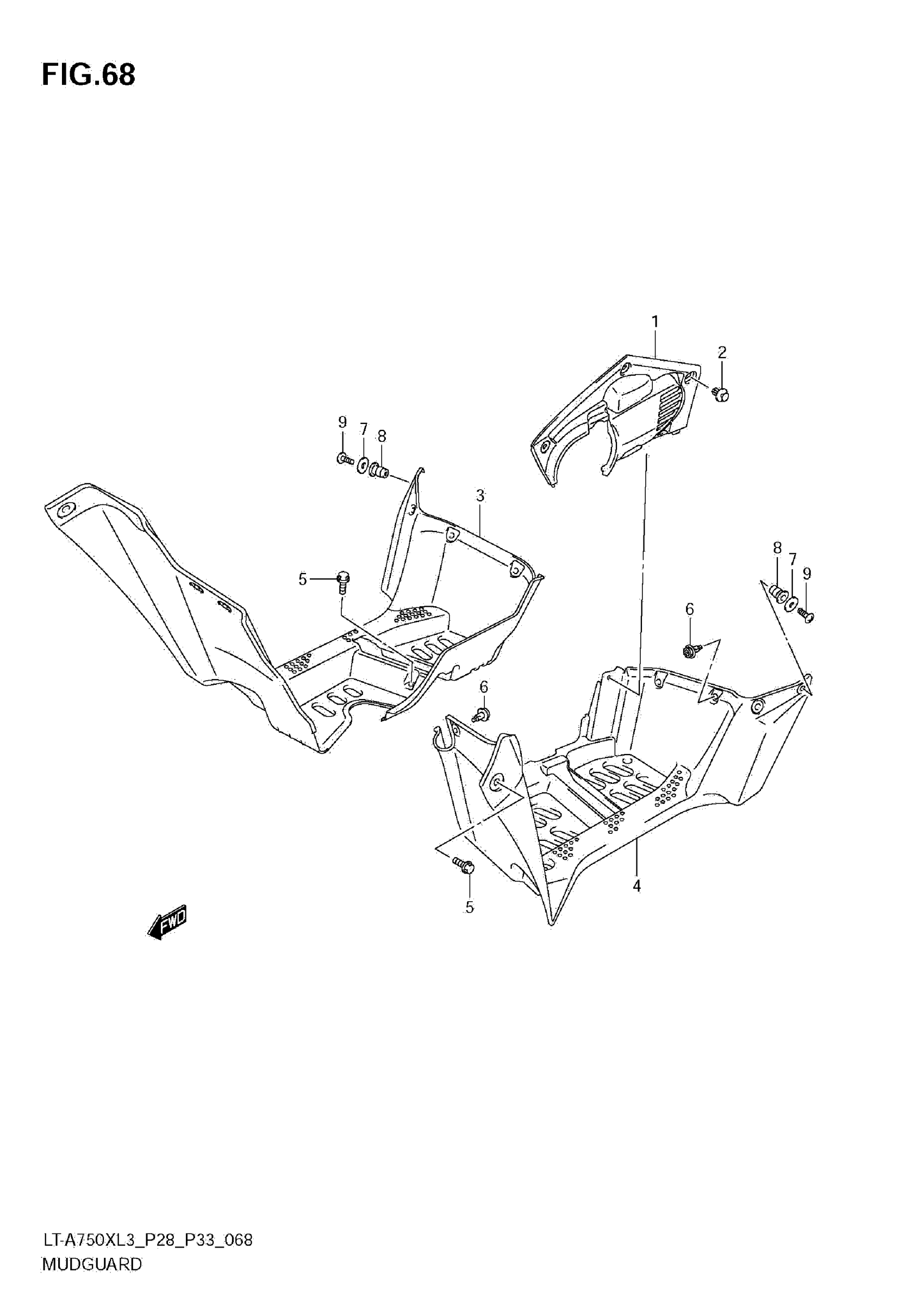

Find the part on the Mudguard diagram for your 2013 Suzuki LT-A750XL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki LT-A750XL3 Mudguard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID (BLACK)

63342-31G02-291

1
Out of stock

2

CLIP

09409-08335

3
Out of stock

3

MUDGUARD,FRONT This part replaces 63331-31G01-291.

63331-31G03-291

1
Out of stock

4

MUDGUARD,FRONT This part replaces 63341-31G01-291.

63341-31G03-291

1
Out of stock

5

BOLT (6X13.5)

09111-06088

5
Out of stock

6

CLIP

09409-10306

10
Out of stock

7

WASHER (5.5X20X1.4)

09160-05046

4
Out of stock

8

NUT

09159-05019

4
Out of stock

9

SCREW

02142-0520B

4
Out of stock
