2012 Suzuki LT-A750XL2 Transmission Diagram

← All diagrams

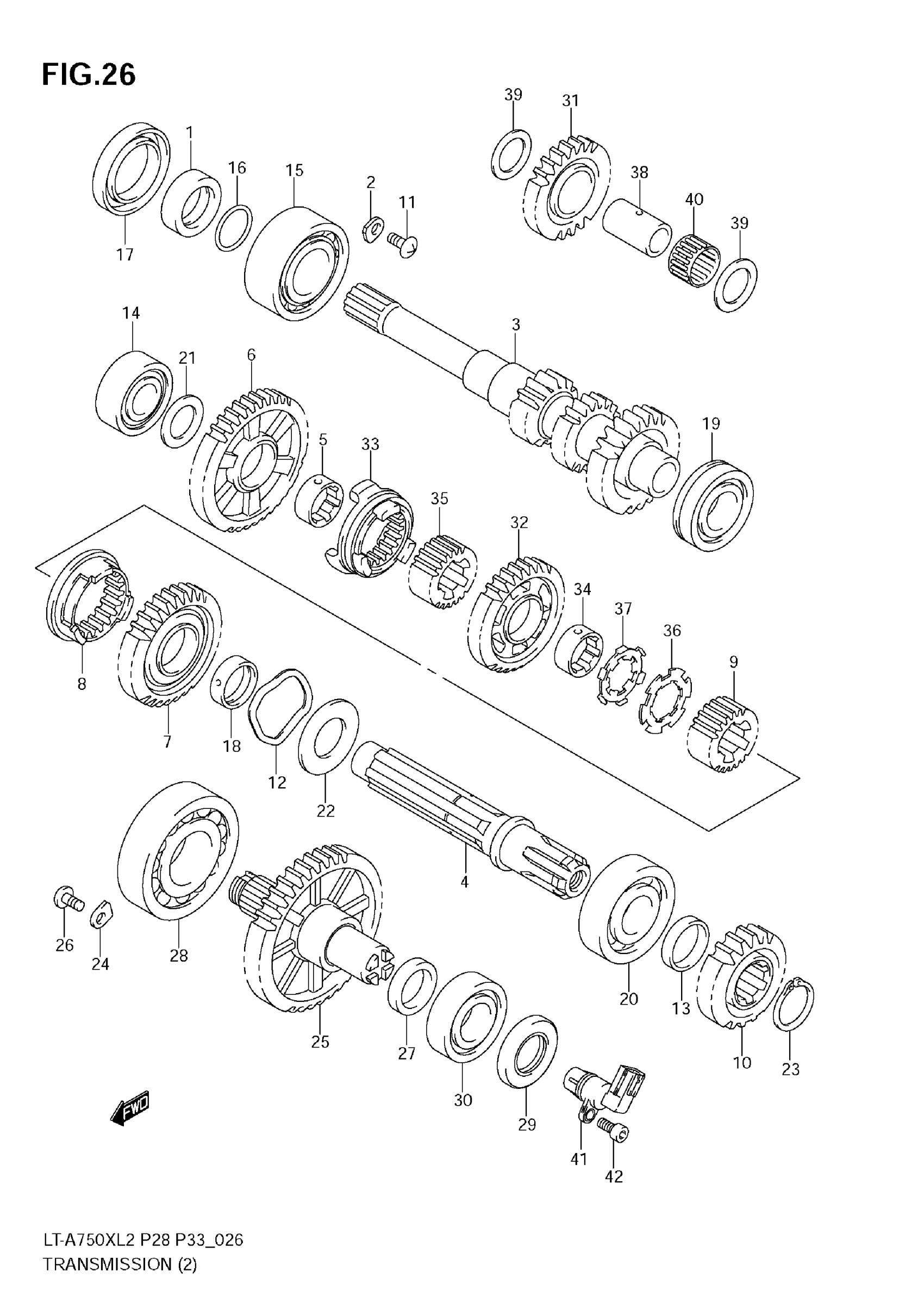

Find the part on the Transmission diagram for your 2012 Suzuki LT-A750XL2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki LT-A750XL2 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER, DRIVE SHAFT

21102-31G00

1

$34.45

In stock

2

RETAINER, DRIVE SHAFT BRG, R

24741-21A00

2
Out of stock

3

1

$378.73

In stock

4

SHAFT, SUB T/M COUNTER

29131-31G00

1
Out of stock

5

1

$25.08

In stock

6

1

$150.17

In stock

7

1

$175.28

In stock

9

1

$49.73

In stock

10

1

$94.17

In stock

11

SCREW (6X12)

09125-06122

2
Out of stock

12

WASHER

09164-34001

1

$8.02

In stock

13

SPACER (25X30X7)

09180-25097

1
Out of stock

14

BEARING (20X47X14)

09262-20139

1
Out of stock

15

BEARING (30X62X23.8)

09267-30005

1

$129.92

In stock

16

1

$2.18

In stock

17

OIL SEAL (38X56X7)

09283-38025

1

$30.86

In stock

18

1

$19.32

In stock

19

BEARING (25X52X15)

09262-25003

1
Out of stock

20

BEARING (25X62X17)

09262-25073

1

$25.11

In stock

21

WASHER

08211-20363

1

$3.08

In stock

22

WASHER

08211-25463

1

$4.23

In stock

23

CIRCLIP

08331-3125A

—
Out of stock

24

RETAINER, SEC DRIVE SHAFT BRG

24741-21A00

2
Out of stock

25

SHAFT, SUB T/M OUTPUT

29120-31G00

1

$280.50

In stock

26

SCREW (6X12)

09125-06122

2
Out of stock

27

SPACER (25X34X5.5)

09180-25083

1

$15.42

In stock

28

BEARING (35X80X21)

09262-35076

1

$80.07

In stock

29

SEAL,OIL (25X45X5)

09283-25076

1
Out of stock

30

BEARING (25X52X15)

09262-25003

1
Out of stock

31

GEAR, REVERSE IDLE | NT:23

24561-31G20

1
Out of stock

32

1

$128.95

In stock

33

1

$97.15

In stock

34

1

$25.08

In stock

35

1

$49.73

In stock

36

WASHER,LOCK (25.1X41X1.5)

09167-25013

1
Out of stock

37

WASHER

09169-25001

1
Out of stock

38

SHAFT, REVERSE IDLE

24551-31G00

1
Out of stock

39

SHIM (20X30X1)

09181-20195

2
Out of stock

40

BEARING (20X24X13)

09263-20060

1
Out of stock

41

SENSOR, SPEED

34990-31G01

1

$114.85

In stock

42

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock
