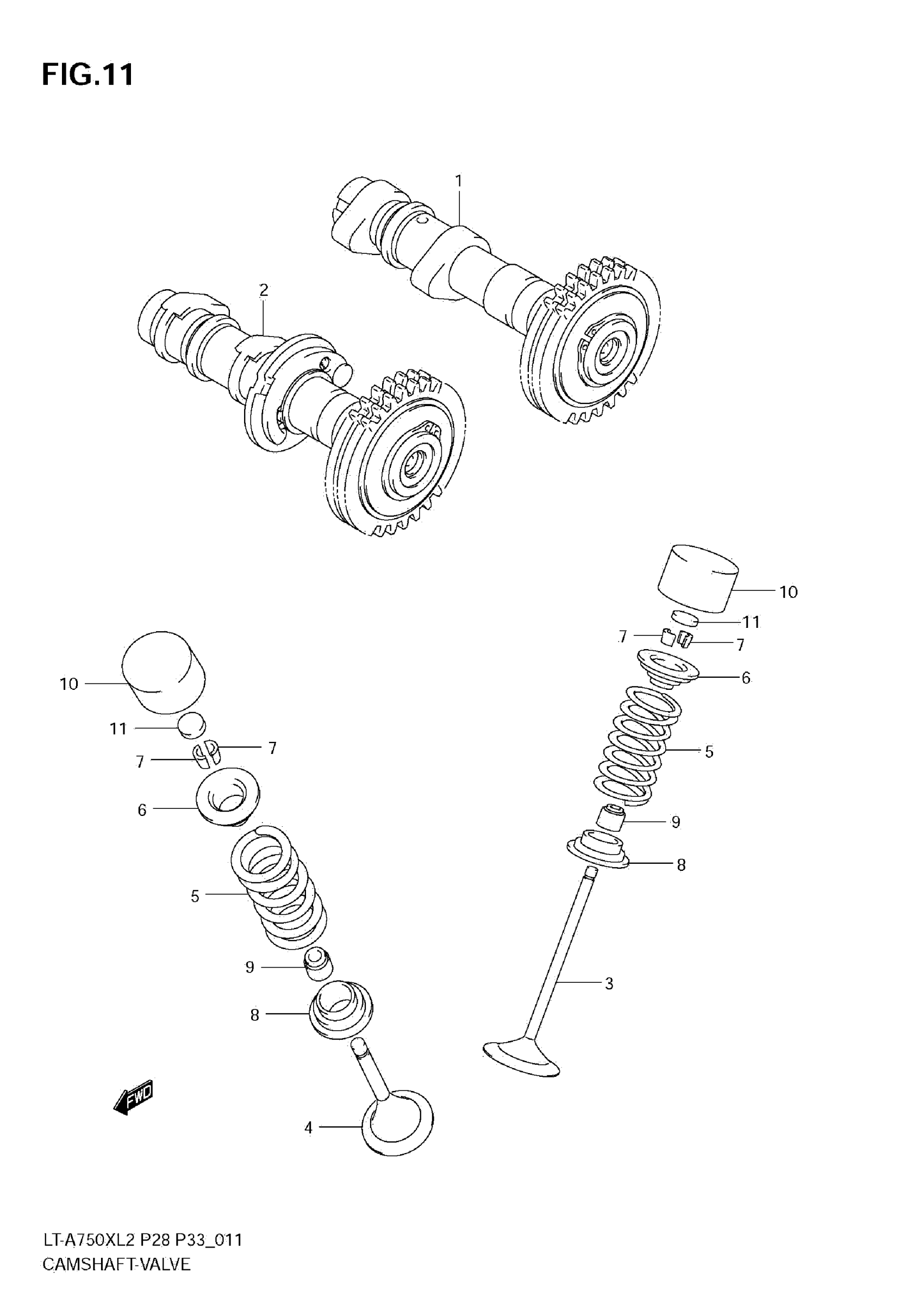

Suzuki LT-A750XL2 (2012) CAMSHAFT-VALVE Diagram

#

Description
Price

1

CAMSHAFT, INTAKE

12710-31G00

$538.13

2

CAMSHAFT, EXHAUST

12720-31G00

$679.07

3

VALVE,INTAKE

12911-31G00

$53.68

4

VALVE,EXHAUST

12912-31G00

$84.50

5

SPRING,VALVE

12921-31G00

$17.12

6

RETAINER,VALVE SPRING

12931-02F10

$13.89

7

COTTER, VALVE

12932-24400

$1.98

8

SEAT,VALVE SPRING

12933-38400

$4.98

9

OIL SEAL (5.5X11X8.2)

09289-05015

$6.04

10

TAPPET This part replaces 12891-02F00.

12891-02F10

$48.15

11

SHIM, TAPPET

12892-41C00-230

$12.85

11

SHIM, TAPPET

12892-41C00-235

$13.35

11

SHIM, TAPPET

12892-41C00-240

$13.35

11

SHIM, TAPPET

12892-41C00-245

$13.35

11

SHIM, TAPPET

12892-41C00-250

$13.35

11

SHIM, TAPPET

12892-41C00-255

$13.35

11

SHIM, TAPPET

12892-41C00-260

$12.85

11

SHIM, TAPPET

12892-41C00-265

$12.85

11

SHIM, TAPPET

12892-41C00-270

$12.85

11

SHIM, TAPPET

12892-41C00-275

$9.12

11

SHIM, TAPPET

12892-41C00-280

$12.85

11

SHIM, TAPPET

12892-41C00-285

$13.35

11

SHIM, TAPPET

12892-41C00-290

$12.85

11

SHIM, TAPPET

12892-41C00-295

$13.35

11

SHIM, TAPPET

12892-41C00-300

$13.10

11

SHIM, TAPPET

12892-41C00-305

$13.35

11

SHIM, TAPPET

12892-41C00-310

$12.85

11

SHIM, TAPPET

12892-41C00-315

Unavailable

11

SHIM, TAPPET

12892-41C00-320

$13.10

11

SHIM, TAPPET

12892-41C00-325

$13.35

11

SHIM, TAPPET

12892-41C00-330

$13.35

11

SHIM, TAPPET

12892-41C00-335

$13.35

11

SHIM, TAPPET

12892-41C00-340

$13.35

11

SHIM, TAPPET

12892-41C00-345

Unavailable

11

SHIM, TAPPET

12892-41C00-350

$13.35

12

SHIM SET, TAPPET INC.REF.NO.11-4%11-25 (5PCS.EACH) & NO.13 | OPT NOT ILLUSTRATED

12800-41810

$1,242.87

13

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69471

Unavailable
