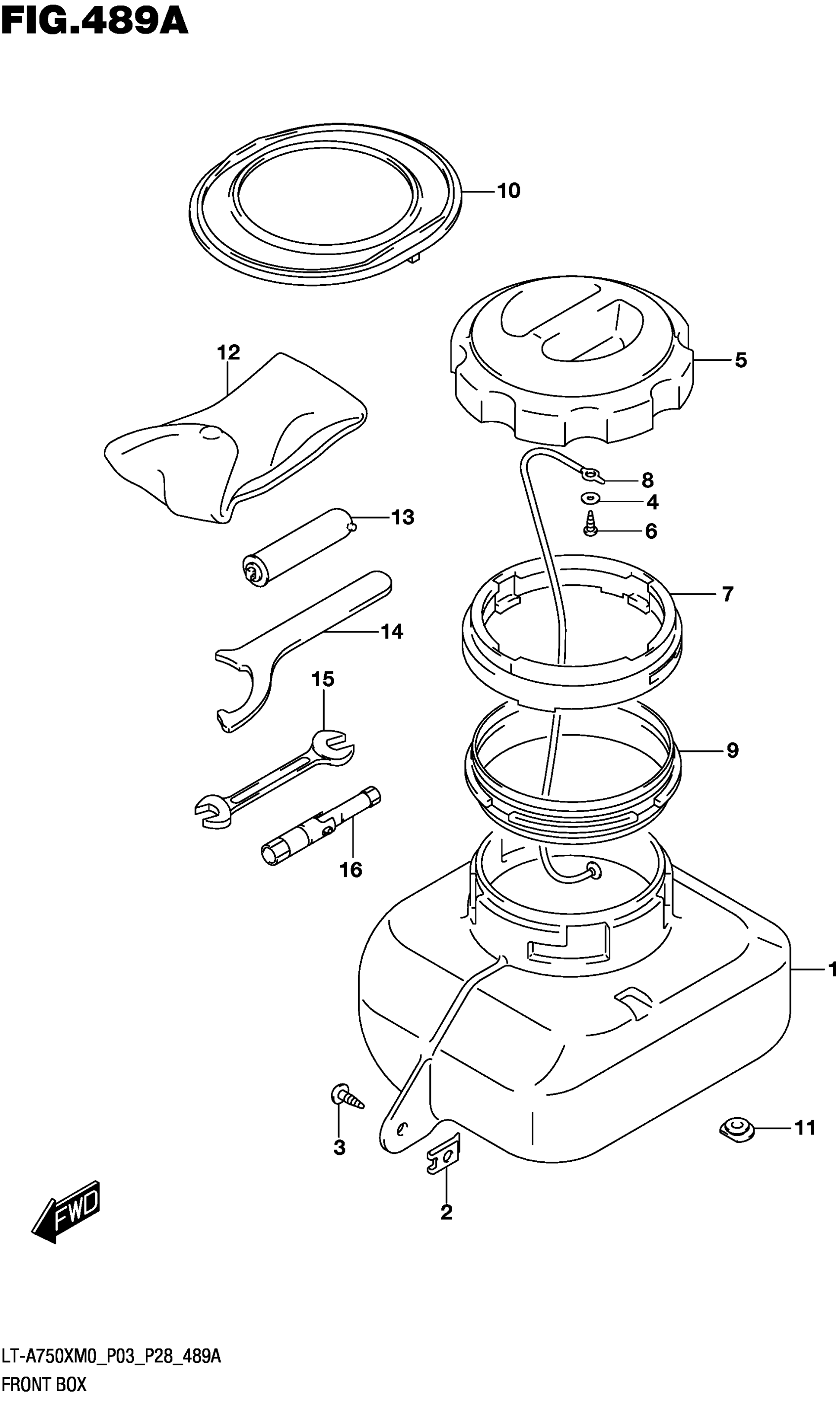

Suzuki LT-A750X M0 (2020) FRONT BOX Diagram

#

Description
Price

1

BODY, FRONT BOX

92111-31G10

$36.38

2

NUT (M5)

09148-05038

$1.97

3

SCREW

03541-0516A

$1.37

4

WASHER (5.2X16X1.0)

09160-05013

$1.25

5

LID,FRONT BOX This part replaces 92112-31G00.

92112-31G01

$24.13

6

SCREW

03511-0512B

$2.39

7

HOLDER,FRONT BOX This part replaces 92113-03G00.

92113-03G01

$52.00

8

STOPPER, FRONT BOX

92114-03G20

$7.67

9

CUSHION, FRONT BOX

92141-31G00

$24.00

10

CUSHION, FRONT BOX NO.1

92142-31G00

$19.45

11

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.15

12

TOOL ASSY

09800-21057

$12.57

13

GAUGE ASSY,AIR PRESSUR

96200-18A02

$66.48

14

CLAMP,WRENCH

09822-00003

$9.45

15

SPANNER,OPEN (14X17)

09813-00031

Unavailable

16

SPANNER (14)

09816-00195

$21.45
