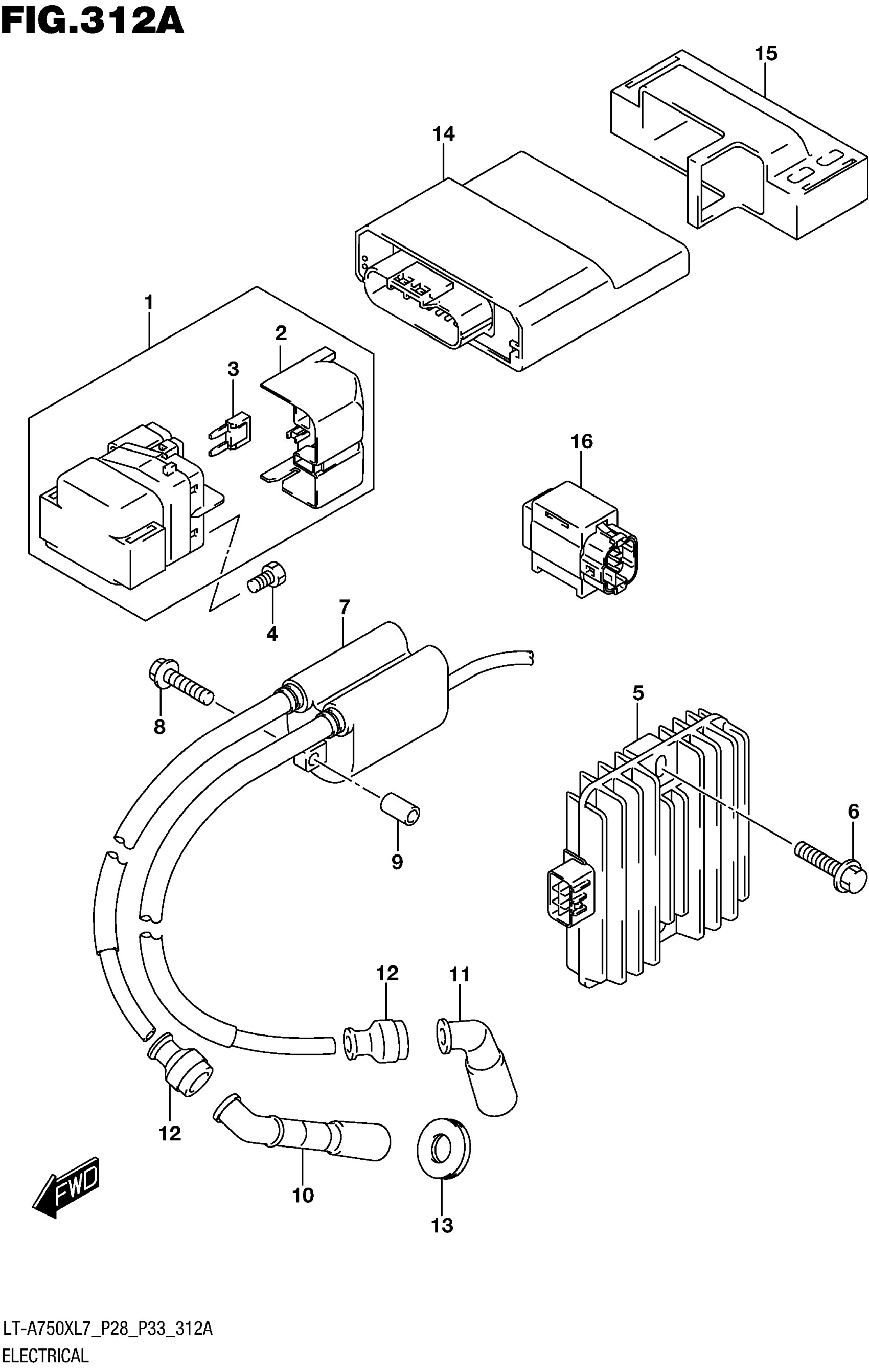

Suzuki LT-A750X AXI (RED, GREEN) (2017) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$88.15

2

.COVER

31861-38G00

$5.52

3

.FUSE (30A)

09481-30501

$2.42

4

SCREW (6X8)

09128-06013

$1.28

5

RECTIFIER ASSY

32800-42F10

$227.26

6

BOLT

01550-0620A

$2.01

7

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$104.36

8

BOLT

01547-0640A

$2.38

9

SPACER (6.4X10X18)

09180-06195

$4.70

10

CAP ASSY,SPARK PLUG

33510-31G00

$38.47

11

CAP ASSY,SPARK PLUG

33510-31G10

$31.51

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.15

13

COVER,SPARK PLUG CAP

33543-33E01

$4.34

14

CONTROL UNIT,FI This part replaces 32920-31GB2.

32920-31GB3

$788.17

15

HOLDER, FI CONTROL UNIT

32980-31GA0

$48.30

16

SENSOR ASSY,FUEL CUT

33960-06G10

$86.01
