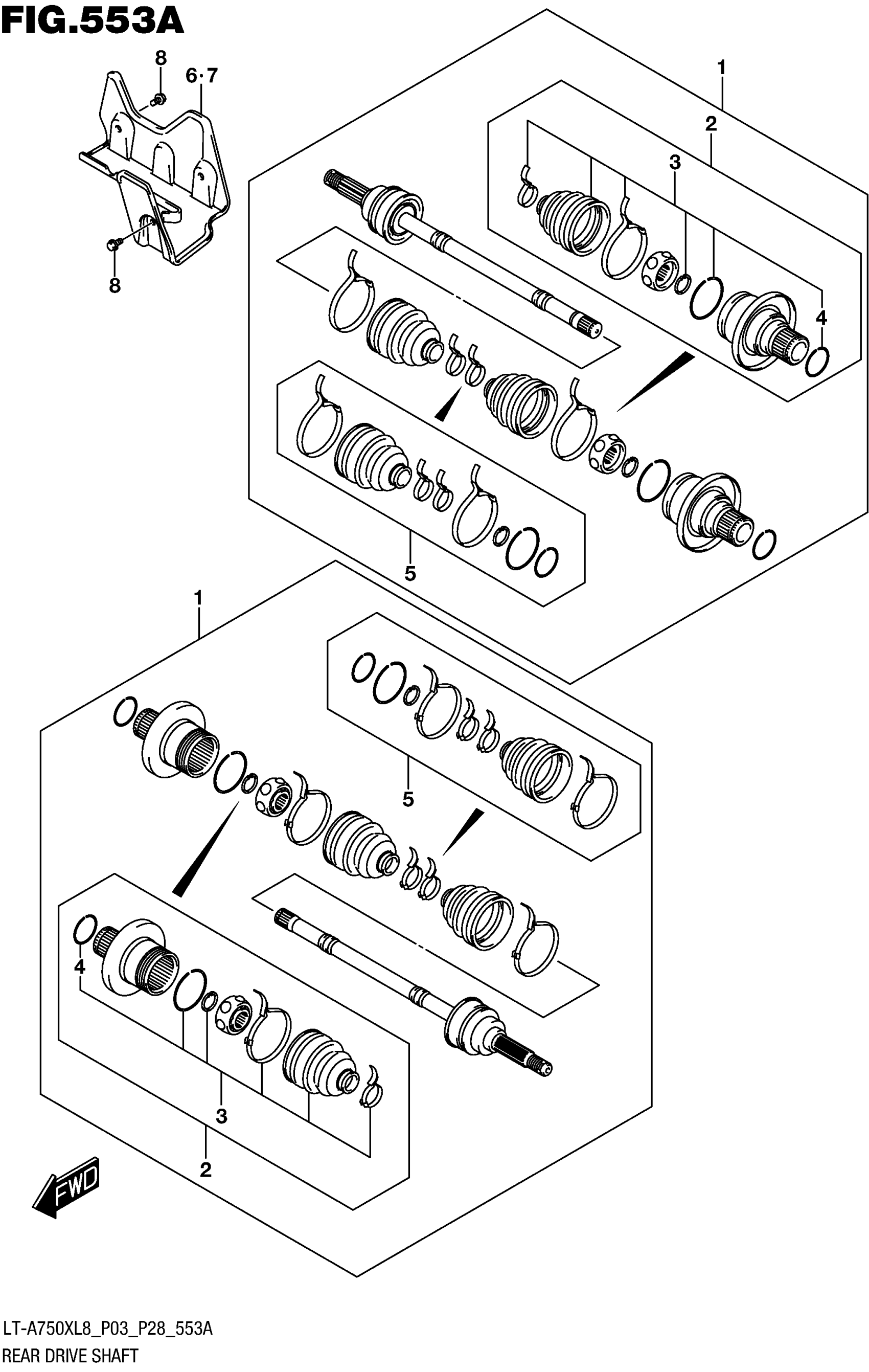

Suzuki LT-A750X (2018) REAR DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, REAR DRIVE

64901-31G41

$300.43

2

.JOINT SET

64933-31G12

$311.62

3

..BOOT SET, INNER

64931-31G12

$113.53

4

...CIRCLIP

54925-31G01

$6.95

5

.BOOT SET, OUTER

64930-31G13

$155.15

6

PROTECTOR,RR DRIVE SHAFT,R This part replaces 64903-31G00.

64903-31G11

$24.99

7

PROTECTOR,RR DRIVE SHAFT,L This part replaces 64904-31G00.

64904-31G11

$24.84

8

BOLT (6X12)

09111-06085

$4.16
