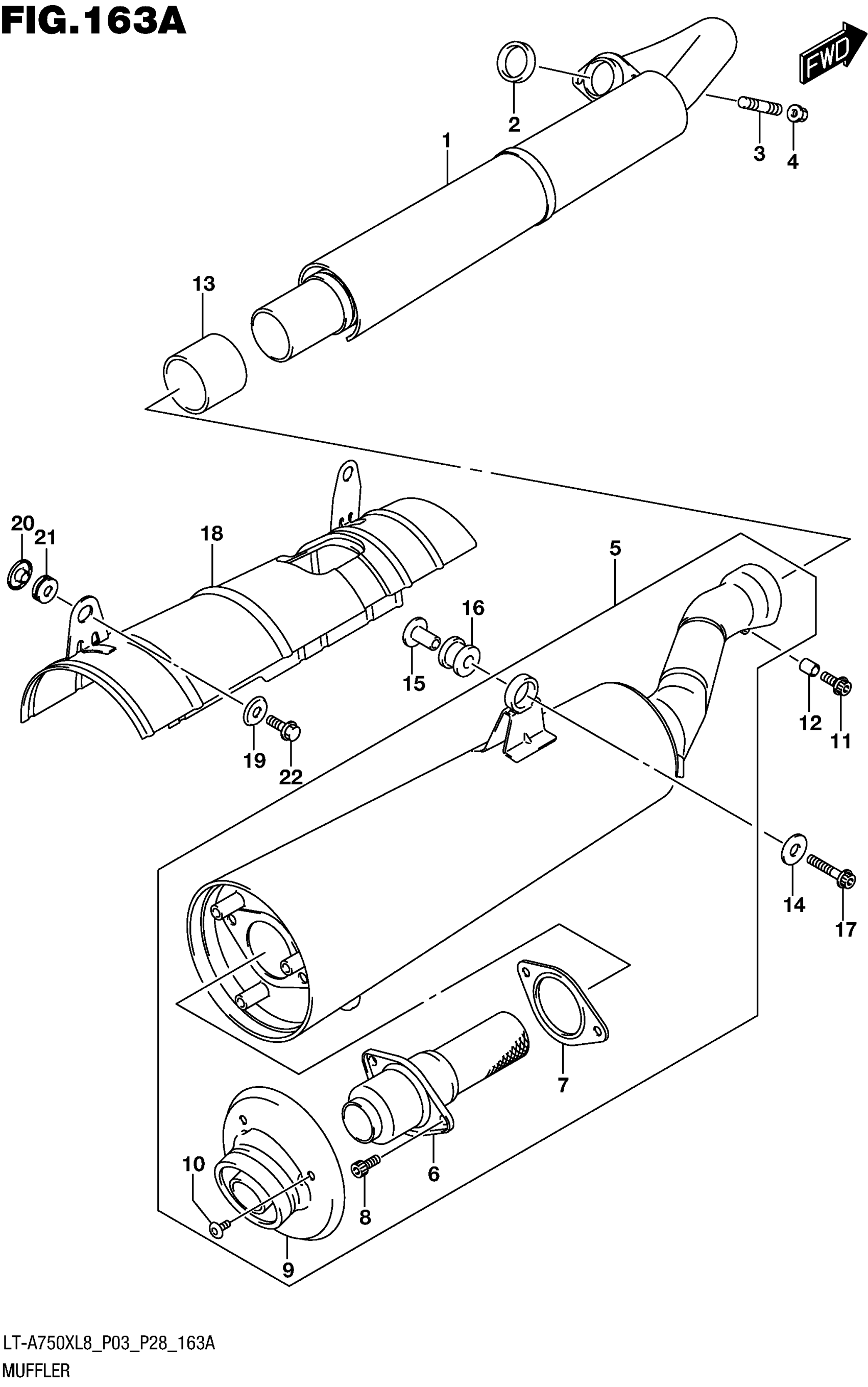

Suzuki LT-A750X (2018) MUFFLER Diagram

#

Description
Price

1

PIPE ASSY, EXHAUST

14100-31G60

$354.73

2

GASKET, EXH PIPE

14181-31G00

$14.98

3

STUD BOLT

01421-0820A

$1.92

4

NUT

08319-3108A

$2.31

5

BODY, MUFFLER

14320-31G70

$926.02

6

.ARRESTER

14850-31G70

$75.05

7

.GASKET

14773-31G02

$15.63

8

.BOLT

07130-0612B

$2.88

9

.COVER, MUF TAIL

14790-31G60

$122.38

10

.SCREW (6X12)

09139-06027

$2.00

11

BOLT

07120-0835B

$4.98

12

SPACER, CLAMP

14458-45G01

$7.82

13

CONNECTOR, MUFFLER JOINT

14771-45G00

$23.57

14

WASHER (8.5X30X2.3)

09160-08503

$2.53

15

SPACER (8.6X12X24.2)

09180-08152

$5.26

16

CUSHION

09320-12071

$8.37

17

BOLT

07120-0840A

$3.08

18

COVER, MUF

14880-31G60

Unavailable

19

WASHER, MUF COVER

14184-07G00

$1.93

20

SPACER, MUF COVER

14185-07G00

$3.53

21

CUSHION

09320-08069

$7.67

22

BOLT

01550-0616A

$1.97
