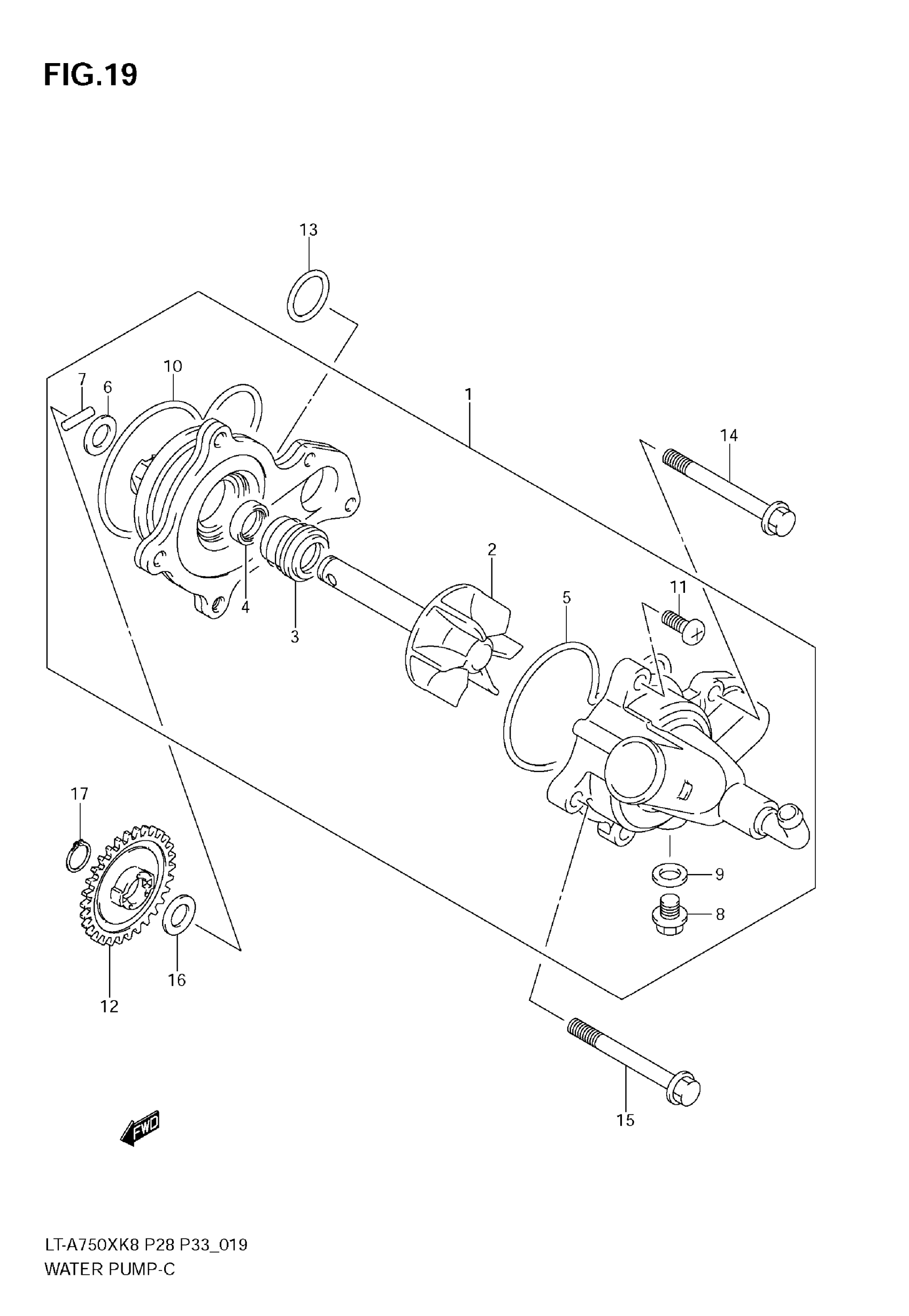

Suzuki LT-A750X (2009) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER | Includes Item(s) 2 - 11 This part replaces 17400-31G00.

17400-31G11

$143.89

2

IMPELLER

17491-31G00

$61.37

3

.SEAL,MECHANICAL This part replaces 17470-02F00.

17470-02F11

$27.96

4

OIL SEAL

17431-07G00

$9.75

5

O RING

17418-31G00

$9.79

6

WASHER

17432-07G00

$2.74

7

PIN

17482-03G00

$2.97

8

.BOLT,DRAIN

17415-20920

$7.06

9

GASKET (8.2X14X1)

09168-08016

$1.70

10

O RING

17435-31G00

$20.09

11

.SCREW

02112-0616B

$2.37

12

GEAR, WATER PUMP DRIVEN

17461-31G00

$31.39

13

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.52

14

BOLT

01547-0645A

$2.53

15

BOLT

01547-0655A

$2.53

16

WASHER, 10X18X0.5

09181-10158

$2.03

17

CIRCLIP This part replaces 08331-3110A.

08331-31109

$1.82
