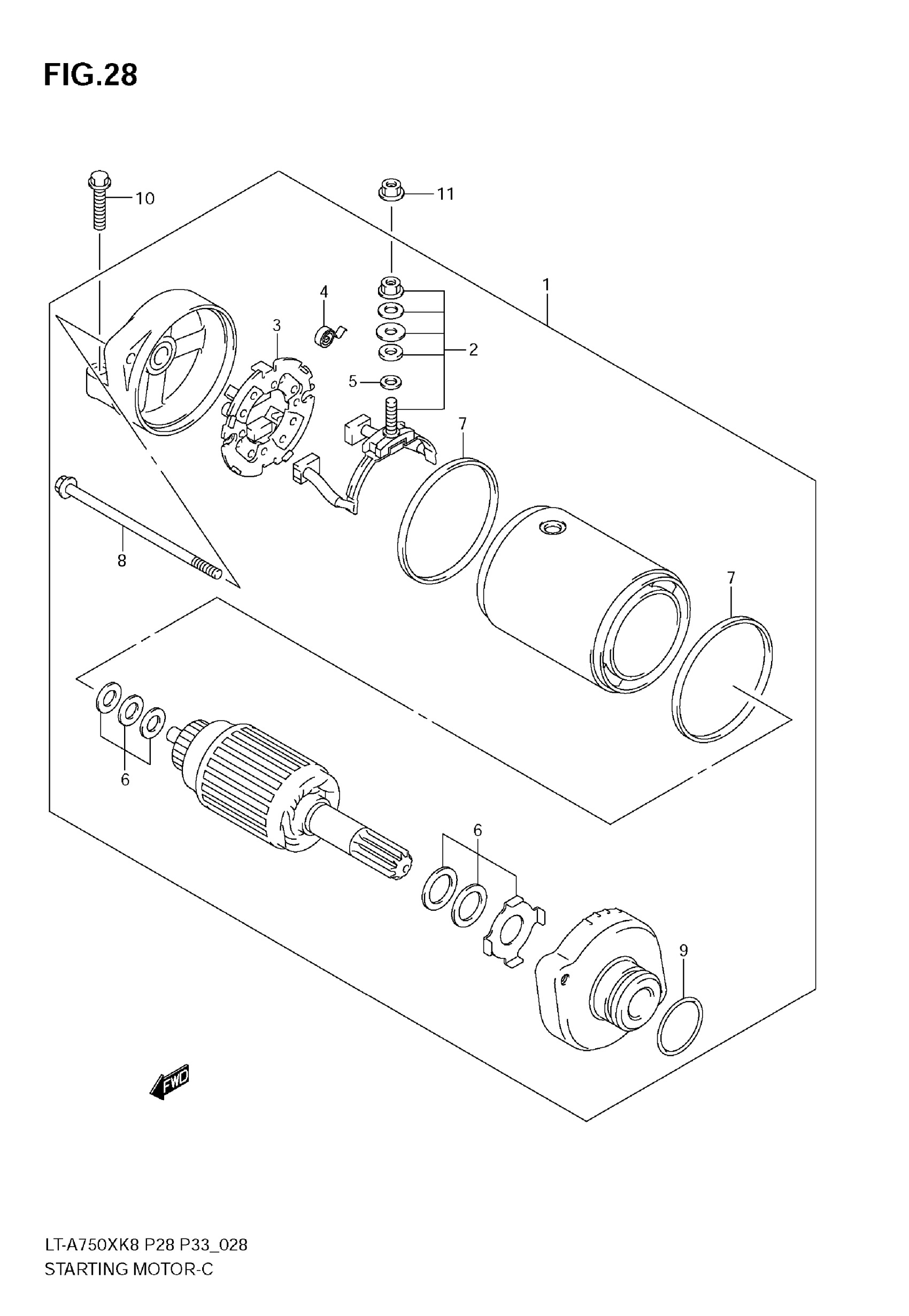

Suzuki LT-A750X (2009) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 9

31100-31G00

$822.42

2

TERMINAL SET, BRUSH

31130-38B00

$78.27

3

HOLDER SET, BRUSH

31132-38B00

$78.27

4

SPRING, BRUSH

31135-38B00

$6.10

5

O RING

31143-49040

$3.50

6

WASHER SET

31170-19B10

$14.18

7

O RING This part replaces 31264-31300.

31264-32E00

$6.29

8

BOLT

31280-26D00

$23.08

9

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

10

BOLT, STARTING MOTOR (6X25)

09103-06212

$2.53

11

NUT

08361-3506A

$1.81
